Model NO.
OM3000-2A-PO51-MS00-HAS
Quantity:

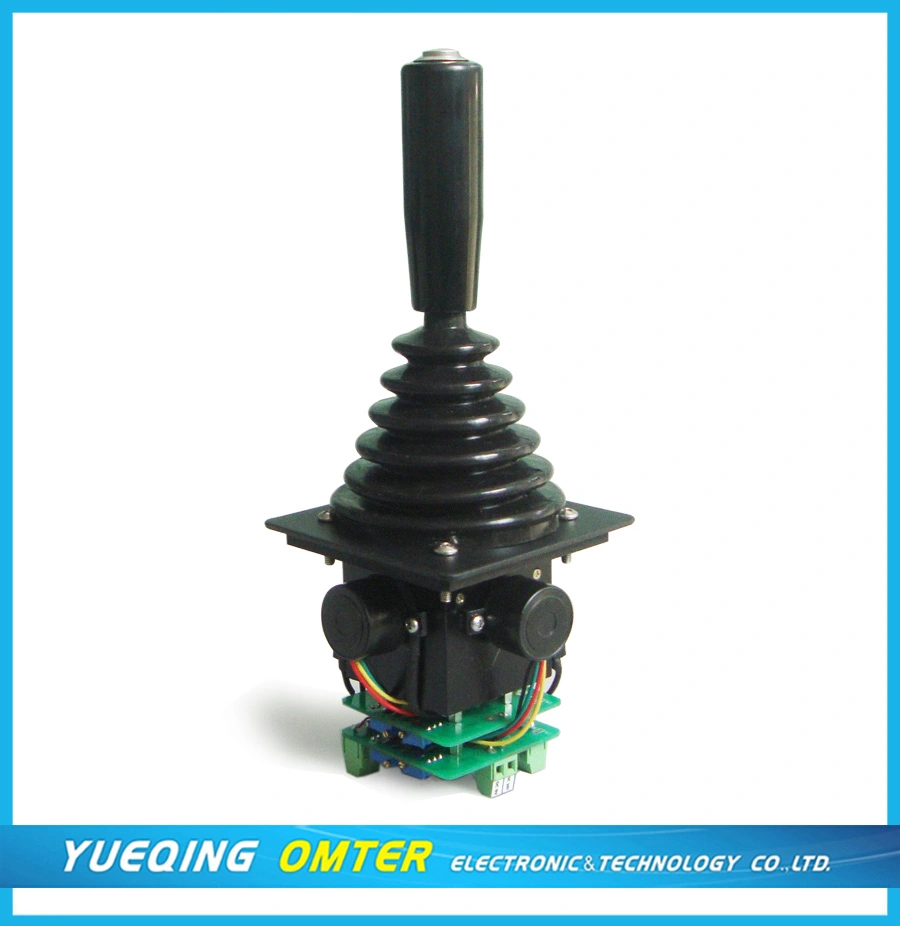

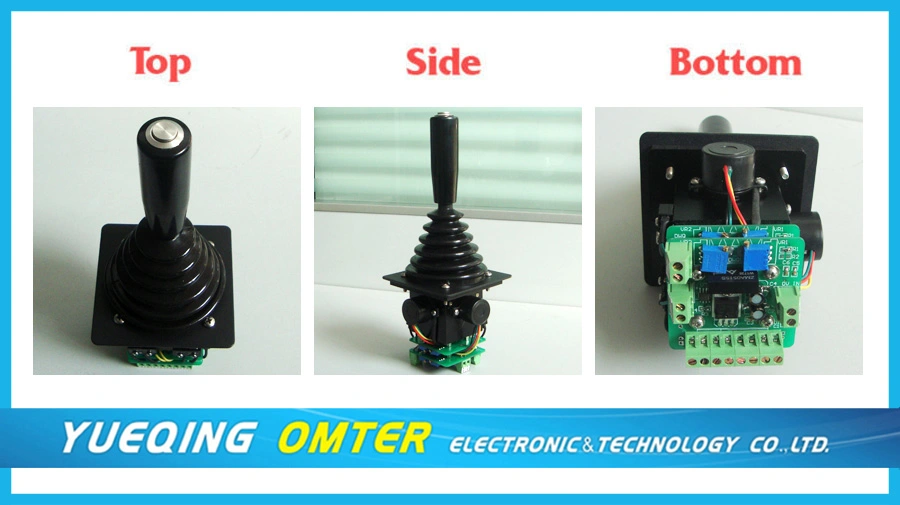

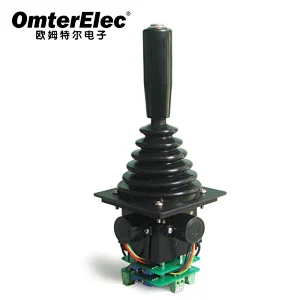

OM3000-2A-PO51-MS00-HAS  First-class joysticks for all sectors

Product characteristic:

 Firm durable, applicable in engineering vehicles use.
The single axis or the double axis operation,could choose the cross direction operation, or choice any direction operation..
The Angle detection device has a very long life conductive plastic potentiometer or hall sensor
Could choose operating top port which meet a variety of operating conditions
Could choose kinds of output form: The potentiometer output or the Hall voltage output; Standard voltage or current output.

Application scope:

 This series product mainly applies in rotary drilling rig, the aerial fire truck,crane, shield machine, Mine Hoist, oil hoist.

Product Selection:

OM3000 - ooo - ooo - ooo - ooo
1.               2.     3.       4.       5.
Sub-item selection instructions
1.Product series numberThe OM3000 series industry handle, the spring automatic reset,
installment pitch of holes size 56mm*56mm, the electric circuit board binding clamp wiring
Mainly used in rotary drilling rig, the aerial fire truck, crane, the shield, coal hoist, oil-hoist
2.The output axis and operating mode1A= single axis
2AC= Double-axis arbitrary direction of operation
2AP= Double-axis cross operating direction
3.Output signalP051= with 5KΩ center-tapped potentiometer 0~100% voltage output
P101= with 10KΩ center-tapped potentiometer 0~100% voltage output
H51= Hall type DC5V power source, 0.5V~2.5V~4.5V voltage output
H52= Hall type DC5V power source, 0V~2.5V~5V voltage output
H53= Hall type DC5V power source, 1.25V~2.5V~3.75V voltage output
U21=DC24V power source, -10V~0V~+10V voltage output
U22=DC24V power source, +10V~0V~+10V voltage output
U23=DC24V power source, - 5V~0V~+5V voltage output
U24=DC24V power source, +5V~0V~+5V voltage output
I21= two-wire system 4mA ~12mA~20mA electric current output
I22= two-wire system 20mA~4mA~20mA electric current output
NA= non-simulated signal output
4.Micro switchMS00= non-micro switch
MS11= with 4A front and back position micro switch
MS12= with 4A front and back,left and right position micro switch
MS13= with 4A the center position as well as front and back,left and right position micro switch MS21=with 10A front and back position micro switch
MS22= with 10A front and back,left and right position micro switch
MS23= with 10A the center position as well as front and back, left and right position micro switch
5.The handle top portHA=Φ30*H51, without button
HAS=Φ30*H56, with one button
BG=Φ41*H43, without button
HD=Φ36*H90, without button
HDS=Φ36*H90, with one button
HF=Φ21*H80, without button
KGNN= no safety switch, no rocker button
KGDR= has the safety switch, has rocker button
KGDN= has the safety switch, no rocker button
KGNR= no safety switch, has rocker button

Technical parameter:

Mechanical parameter:
Swing angle:±25°
Service life:Is bigger than 5,000,000 times (potentiometer type),is bigger than 10,000,000 times (Hall type)
Operate strength:15N (Max)
Limit Force:50N (Max)
Weight:460g (without the top port)
Electrical parameter:
Potentiometer type:
Total resistance value:5kΩ or 10kΩ
Electric angle:±20°
The median position voltage (relative power supply voltage):48%~52%
The median position dead zone angle:±2.5°
The potentiometer load max voltage:DC32V
Potentiometer allows the maximum power consumption (25°C):0.25W
Micro switch:
Load capacity:3A@250Vac, 4A@30Vdc (resistive load),can also be configured to the big
current (10A) micro switch
Mechanical life:more than 30,000,000 times
Electrical life:more than 200,000 times
Insulation resistances:more than 100MΩ(500Vdc insulation resistance meter)
Hall type
Power source voltage:5±0.5Vdc
Limit permission overvoltage:30Vdc (continuous use)
The reverse limit permits the voltage:The 15Vdc
Output voltage scope (optional):H51= Hall type, DC5V power source,the 0.5V~2.5V~4.5V voltage output
H52= Hall type, DC5V power source,the 0V~2.5V~5V voltage output
H53= Hall type, DC5V power source,1.25V~2.5V~3.75V voltage output
Minimum load impedance:5KΩ
Insulation resistance:Is bigger than 50MΩ (when 500Vdc)
With conversion circuit
power source voltage:DC24V
Power source consumption current:<20mA
Maximum output electric current:The 10mA
Standard voltage output
Output voltage scope (optional):U21=DC24V power source, -10V~0V~+10V voltage output
U22=DC24V power source, +10V~0V~+10V voltage output
U23=DC24V power source, -5V~0V~+5V voltage output
U24=DC24V power source, +5V~0V~+5V voltage output
Standard electric current output
Power source voltage:The DC9~36V
Output current adjustment scope (optional):I21=two-wire system 4mA~12mA~20mA electric current output
I22=two-wire system 20mA~4mA~20mA electric current output
button switch:
Load capacity:5A@28Vdc (resistive load)
Operate strength:3N
action form:Instantaneous action
Mechanical life:More than 1,000,000 times
Environment parameter
Operating temperature scope:- 40°C~+80°C
Storage temperature scope:- 40°C~+85°C
Protection rank:IP65
