Model NO.

 OM902-H51 joysticks for wheelchair

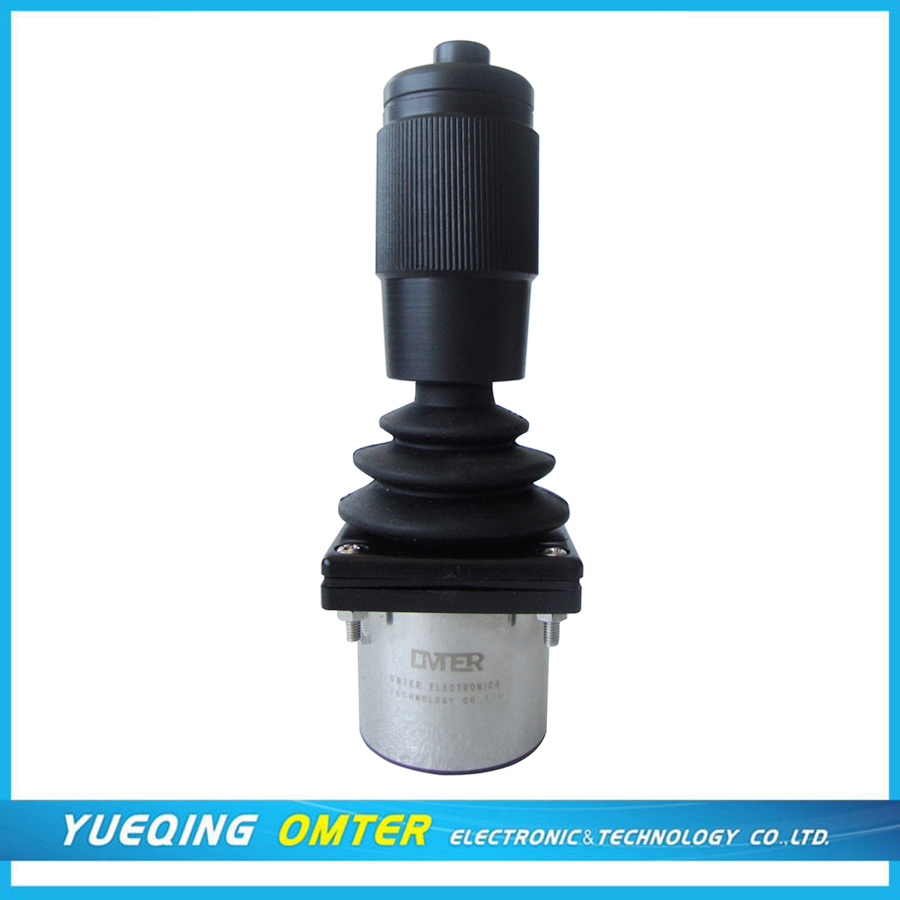

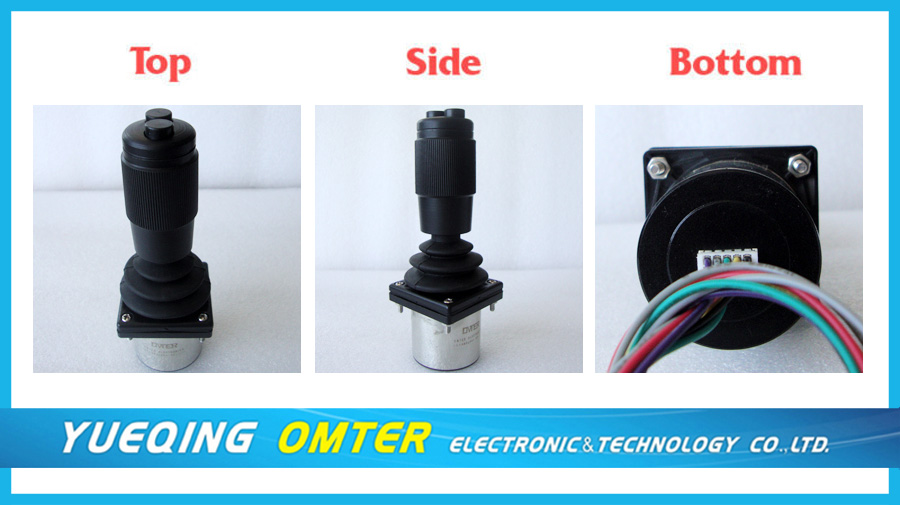

Detailed picture:


Product characteristic:

Spring automatic reset. Three axis with button arbitrary operation.

Output voltage range can be selected according to the requirement,could choose RS232 or USB connector output.

Application scope:

The products are mainly used in electric wheelchairs, video control equipment.

Product selection:
OM900 - ooo
       1.       2.
Sub-item selection instructions:
1.Product series numberOM900 series industry handle, three axis Hall type, with button, spring automatic reset,without direction switch, the installment pitch of hole size is 36mm*36mm.Mainly used in the wheelchair control ,video control and engineering vehicle control
2.Output signal

H51= Hall type, the input voltage 10% ~ 5Vdc, 50% ~ 90%Vdc voltage output

H52= Hall type, the input voltage 0% ~ 5Vdc, 50% ~ 100%Vdc voltage output

RS232=RS232 serial digital signal output

USB=USB connection digital signal output

Technical parameter:

Mechanical parameter:
Swing angle:± 25°
Service life:Is bigger than 10,000,000 times
Operation:15N (maximum)
Limit strength:50N
Electrical parameter:
Power supply voltage:5Vdc
The total current:<20mA
Linear tolerance:± 5%
Power supply voltage:DC5V ± 10%
Load resistance:>10K Ω
Environmental parameter:
Operation temperature range:-40 °C ~ +80 °C
Protection grade:IP65

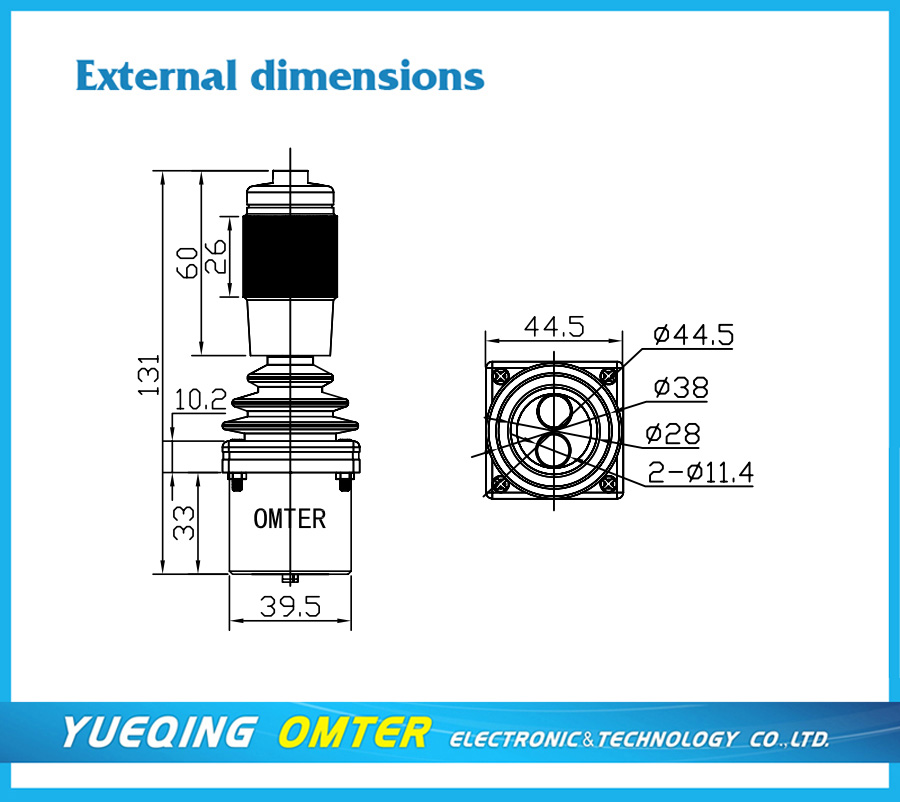

Hall Series Drawing:

OM902 3d joystick

Electrical installment:

Line colorLine No.Function
Brown6Switch output

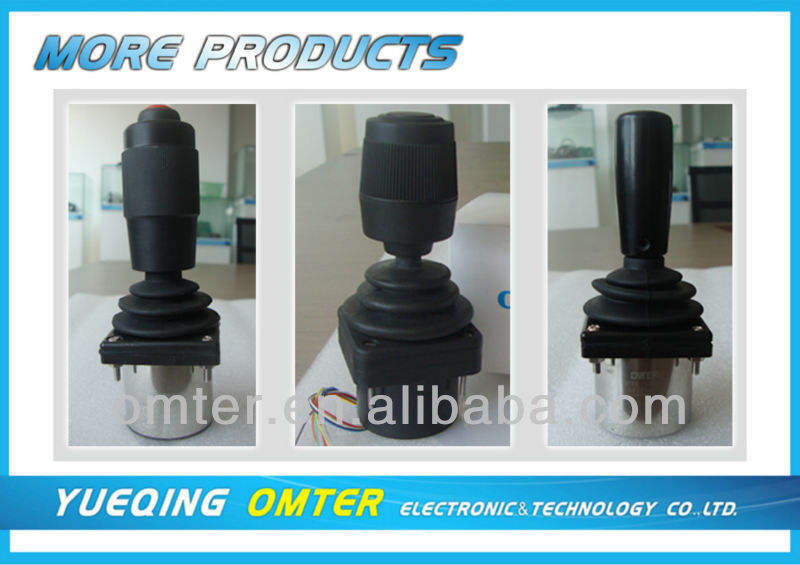

OM902 3d joystick

Express delivery:

OM902 3d joystick


1. Samples time: Need 7-10 days to preparing the samples after receiving the payment.

2. Samples payment term: T/T, PAYPAL, Western union

Quality Guarantee:

1.Strictly quality control  before leave factory

2. Quality guarantee  within one year


1.Low MOQ: 1PC

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good Quality: Strict quality control  and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)

Order Guide:

1. Inquiry-Professional quotation.
2. Confirm the price, lead time, packing requirement, payment term etc.
3. OMTER sales send the Proforma Invoice with OMTER seal.
4. Customer make the payment and send us Bank receipt.
5. Will inform client that we have got the payment, arrange the production & inform the estimated time.
6. After delivery will inform the tracking number and check the status for clients.
7.   Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do bette
