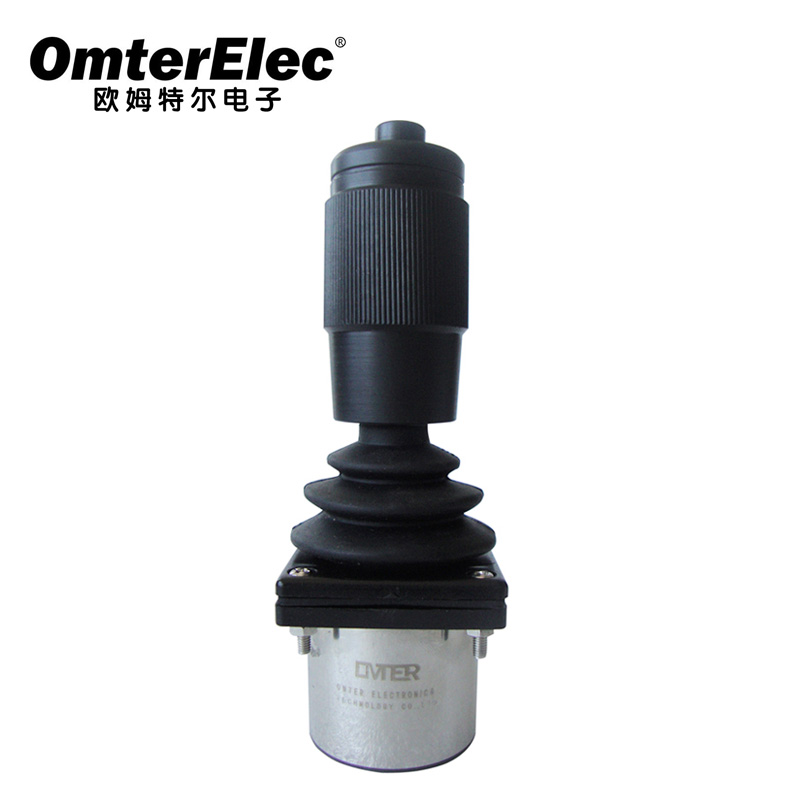

OM902 joystick operated wheelchair

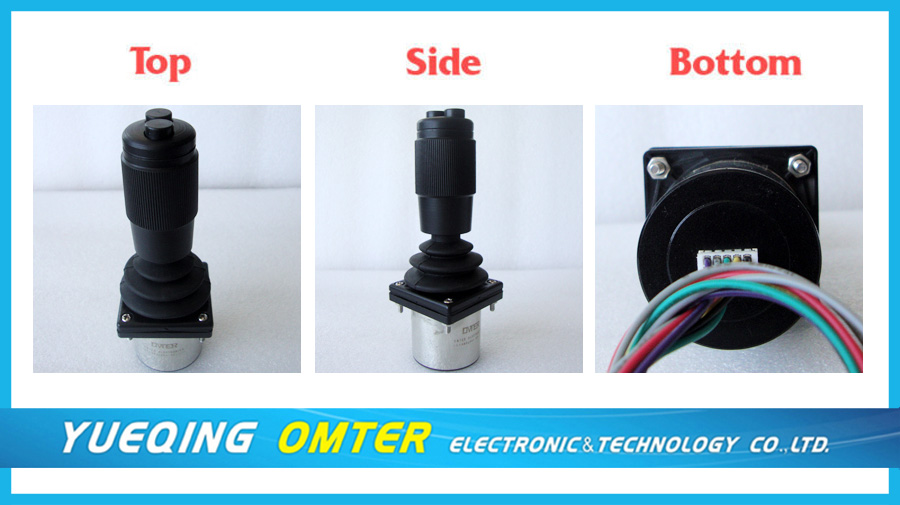

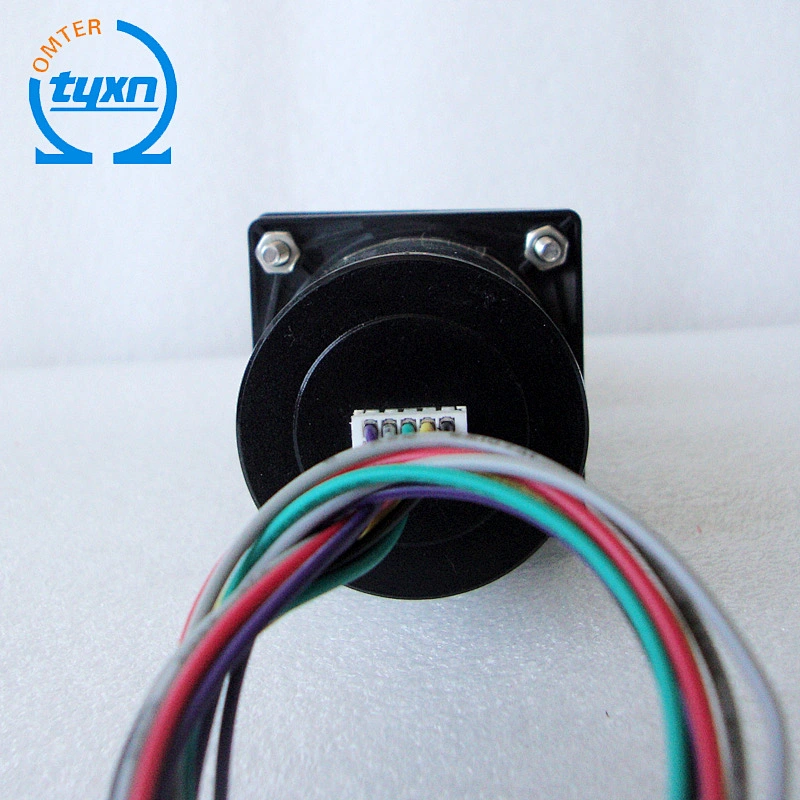

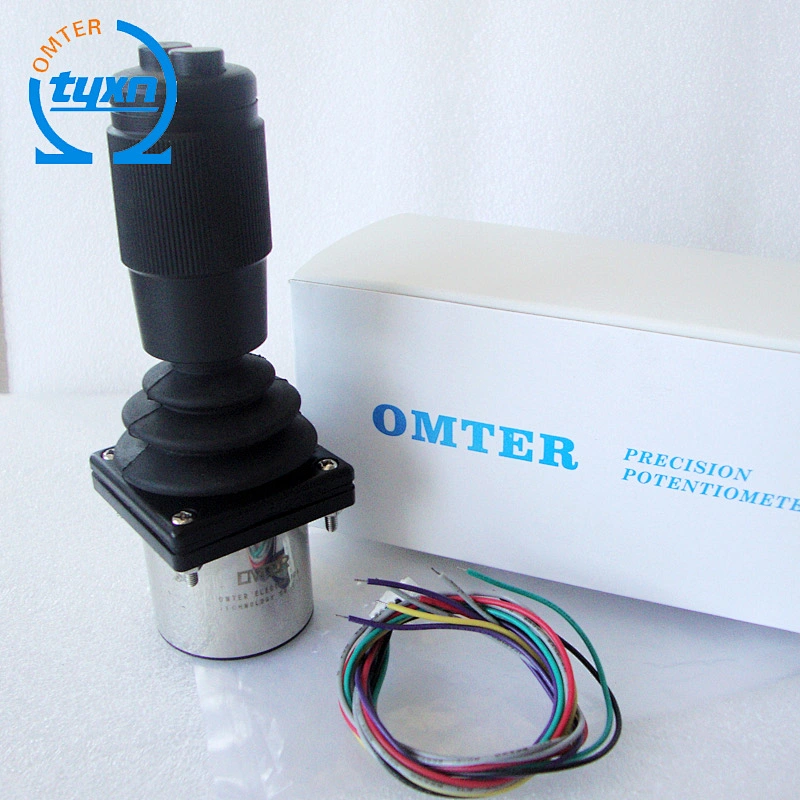

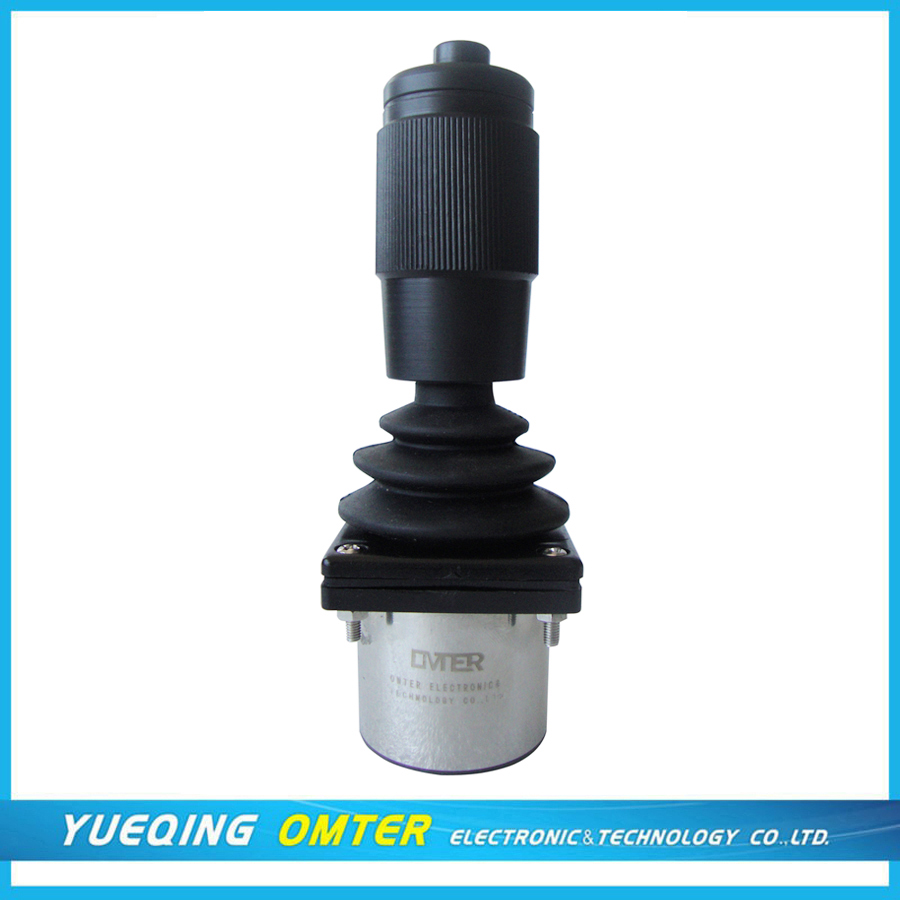

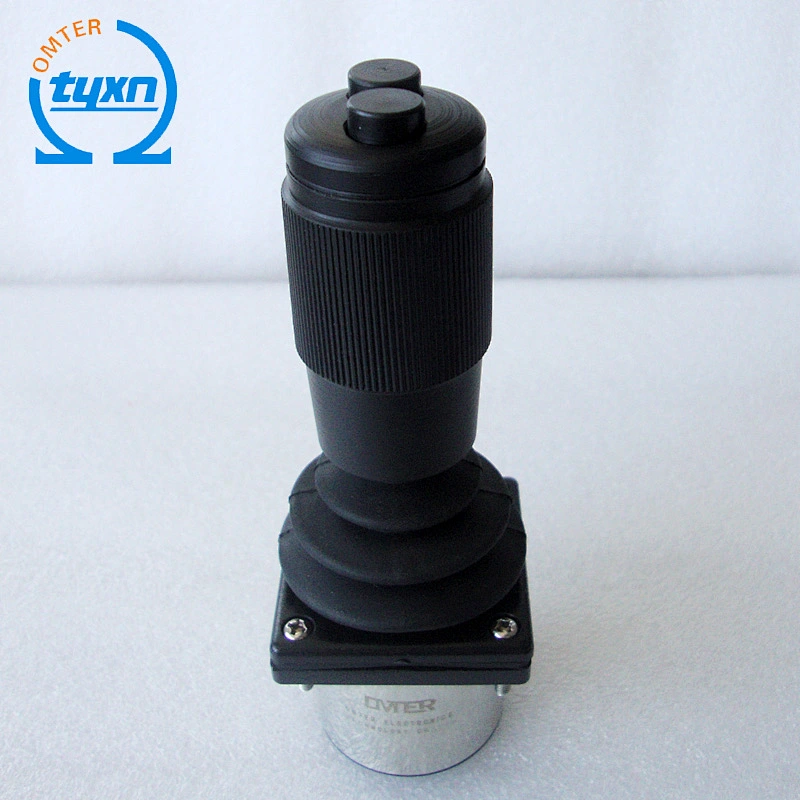

Detailed picture:
Product characteristic:
Spring automatic reset. Three axis with button arbitrary operation.
Output voltage range can be selected according to the requirement,could choose RS232 or USB connector output.
Application scope:
The products are mainly used in electric wheelchairs, video control equipment.
| Product selection: | |
| OM900 - ooo | |
| 1. 2. | |
| Sub-item selection instructions: | |
| 1.Product series number | OM900 series industry handle, three axis Hall type, with button, spring automatic reset,without direction switch, the installment pitch of hole size is 36mm*36mm.Mainly used in the wheelchair control ,video control and engineering vehicle control |
| 2.Output signal | H51= Hall type, the input voltage 10% ~ 5Vdc, 50% ~ 90%Vdc voltage output H52= Hall type, the input voltage 0% ~ 5Vdc, 50% ~ 100%Vdc voltage output RS232=RS232 serial digital signal output USB=USB connection digital signal output |
Technical parameter:
| Mechanical parameter: | |
| Swing angle: | ± 25° |
| Service life: | Is bigger than 10,000,000 times |
| Operation: | 15N (maximum) |
| Limit strength: | 50N |
| Weight: | 125g |
| Electrical parameter: | |
| Power supply voltage: | 5Vdc |
| The total current: | <20mA |
| Linear tolerance: | ± 5% |
| Power supply voltage: | DC5V ± 10% |
| Load resistance: | >10K Ω |
| Environmental parameter: | |
| Operation temperature range: | -40 °C ~ +80 °C |
| Protection grade: | IP65 |

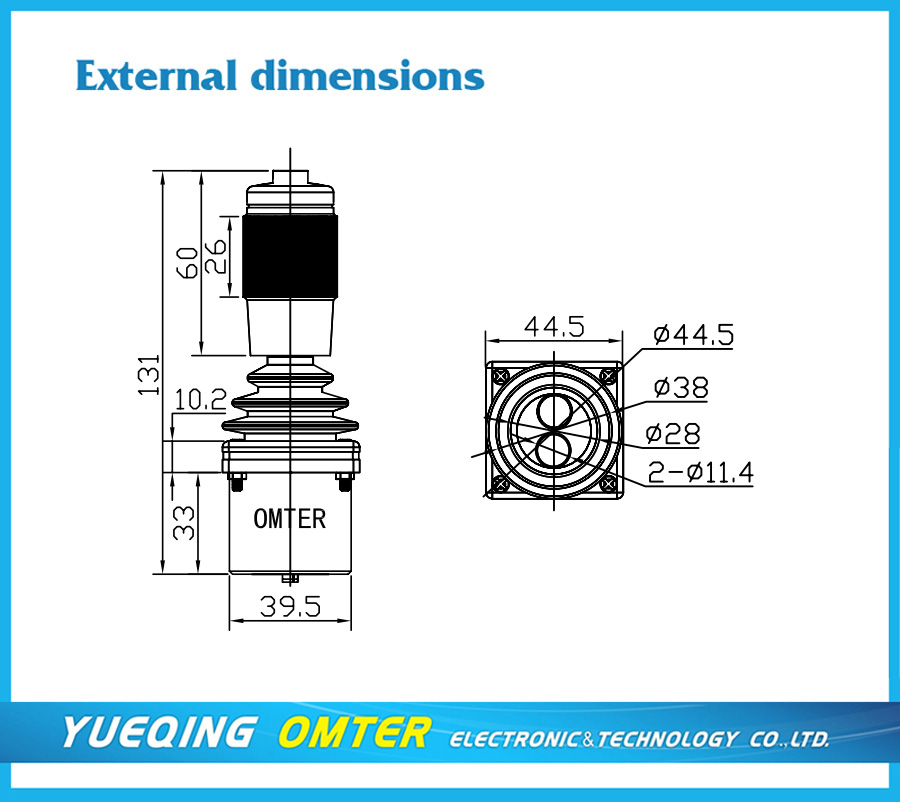

Hall Series Drawing:
Electrical installment:
| Line color | Line No. | Function |
| Red | 1 | +5VDC |
| Black | 2 | 0V |
| Yellow | 3 | X-OUT |
| Green | 4 | Y-OUT |
| Blue | 5 | Z-OUT |
| Brown | 6 | Switch output |

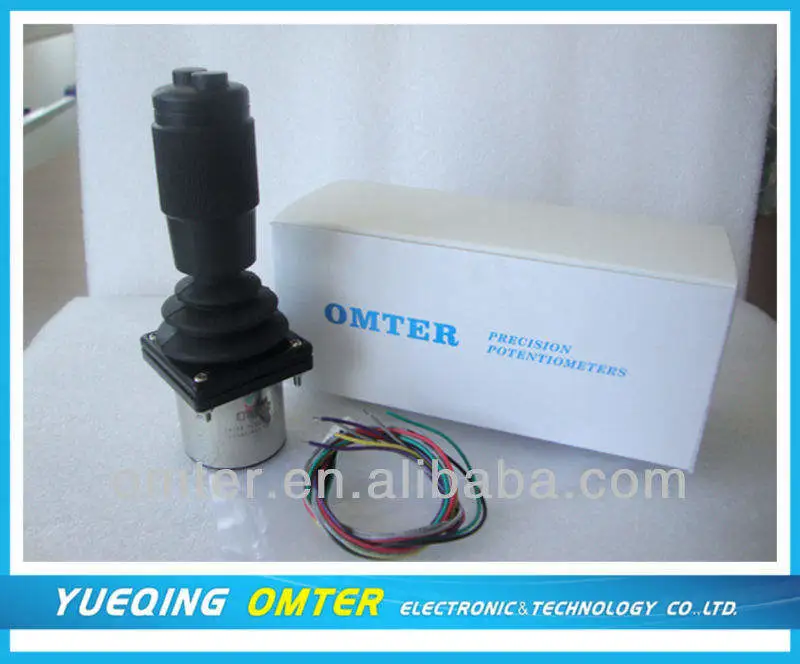

Package:
Express delivery:
Sample:
1. Samples time: Need 7-10 days to preparing the samples after receiving the payment.
2. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 1PC
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
Order Guide:
| 1. Inquiry-Professional quotation. |
| 2. Confirm the price, lead time, packing requirement, payment term etc. |
| 3. OMTER sales send the Proforma Invoice with OMTER seal. |
| 4. Customer make the payment and send us Bank receipt. |
| 5. Will inform client that we have got the payment, arrange the production & inform the estimated time. |
| 6. After delivery will inform the tracking number and check the status for clients. |
| 7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do bette |
