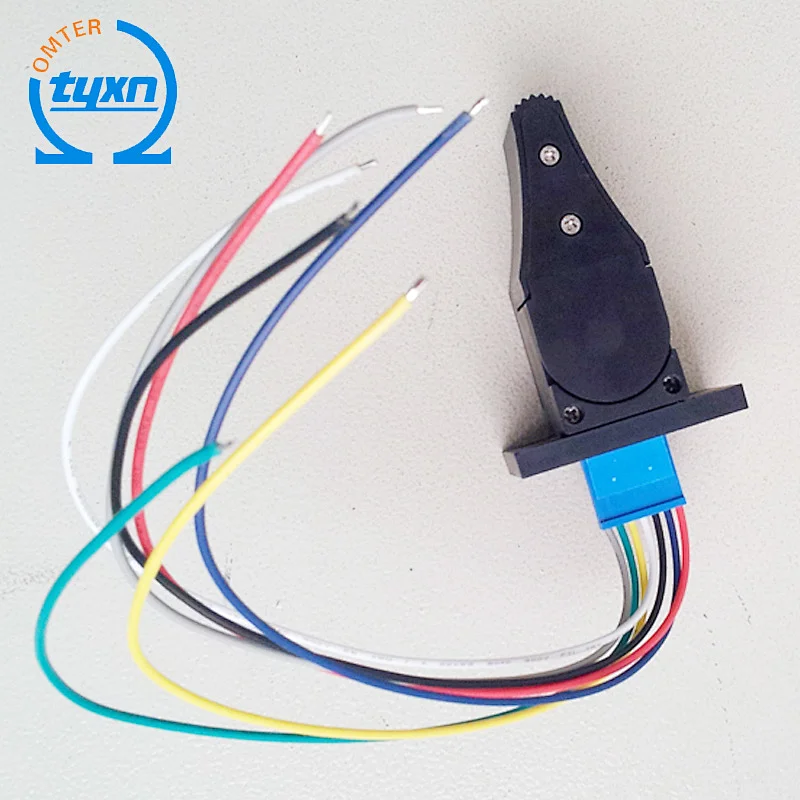

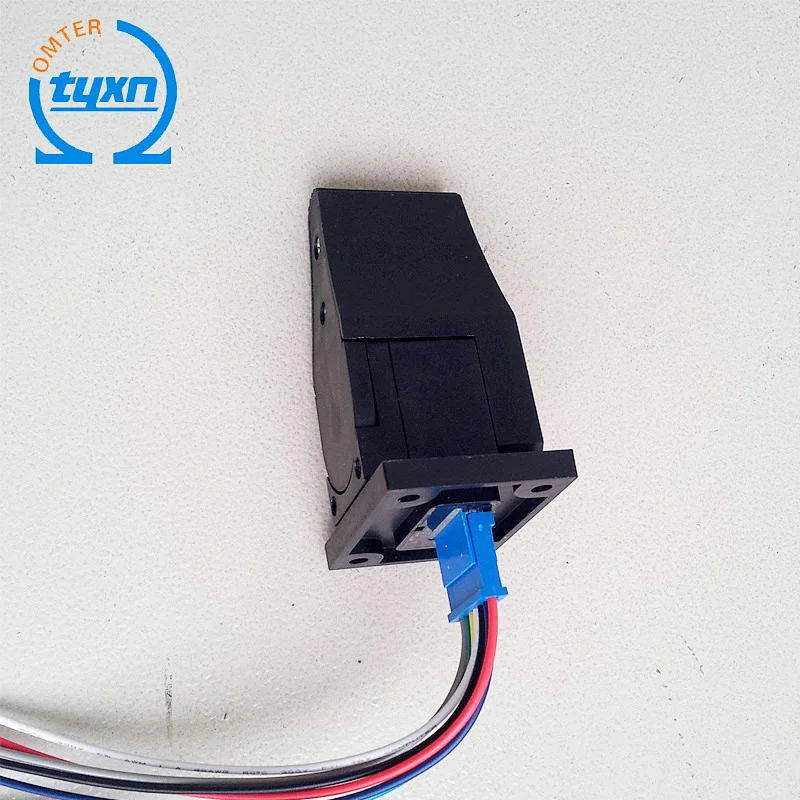

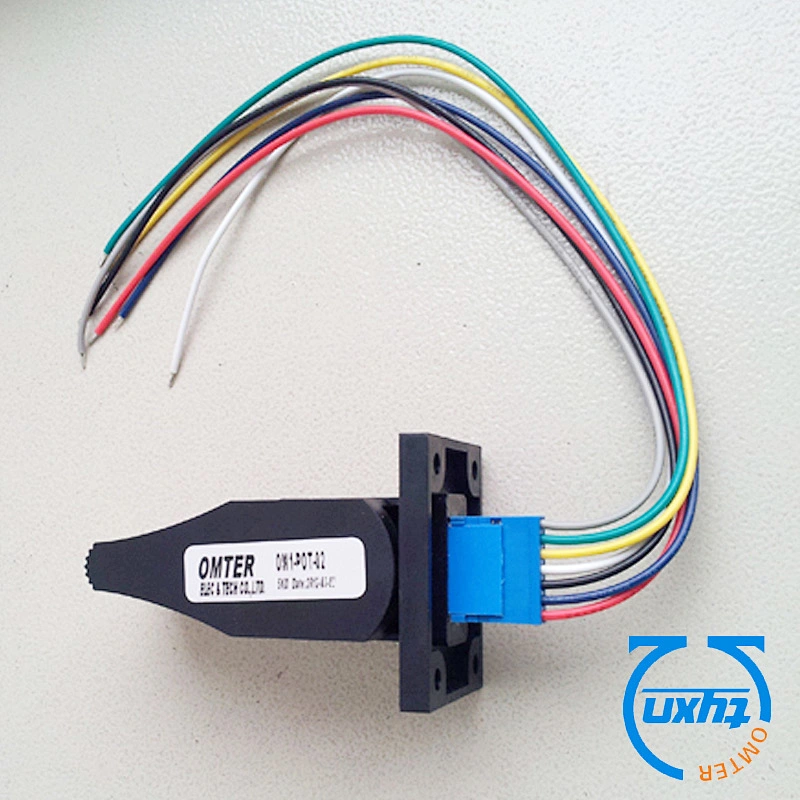

OM1A joystick for excavator

OM1A-51= Single hall type, the input voltage 10% ~ 5Vdc, 50% ~ 90%Vdc voltage output

OM1A series industry handles, Hall or potentiometer type single axis spring automatic reset,potentiometer type with direction switch, the installment pitch of hole size is 24mm*36mm.
Mainly used in industrial remote control, construction machinery, agricultural machinery and transportation machinery

Product characteristic:

Spring automatic reset, fingertip type operation.

Single axis front and back direction operation; with direction switch’s potentiometer mode;

could without contact with single or double Hall mode, no direction switch.

Could according to the requirement select the output voltage range.

Application scope:

This series products are mainly used in industrial remote control,
construction machinery, agricultural machinery and transportation machinery.

Product selection:(other different selection )
OM1A - ooo
1.           2.
Sub-item selection instructions:
1.Product series numberOM1A series industry handles, Hall or potentiometer type single axis spring automatic reset,potentiometer type with direction switch, the installment pitch of hole size is 24mm*36mm.
Mainly used in industrial remote control, construction machinery, agricultural machinery and transportation machinery
2.Output signal

P041= potentiometer type, input voltage less than 36Vdc, with 4K Ω center-tapped potentiometer,0% ~100%Vdc voltage output

P052= potentiometer type, input voltage less than 36Vdc, with 5K Ω center-tapped potentiometer,
10% ~ 90%Vdc voltage output

P053= potentiometer type, input voltage less than 36Vdc, with 5K Ω center-tapped potentiometer,
25% ~ 75%Vdc voltage output

H51= Single hall type, the input voltage 10%~ 5Vdc, 50% ~ 90%Vdc voltage output

H52= Single hall type, the input voltage 0% ~5Vdc, 50% ~ 100%Vdc voltage output   H53= Single hall type, the input voltage 25% ~5Vdc, 50% ~ 75%Vdc voltage output

2H51= Double hall type, the input voltage 10% ~ 5Vdc, 50% ~ 90%Vdc voltage output

2H52= Double hall type, the input voltage 0%~ 5Vdc, 50% ~ 100%Vdc voltage output

2H53= Double hall type, the input voltage 25% ~ 5Vdc, 50% ~ 75%Vdc voltage output

Technical parameter:

Mechanical parameter:
Swing angle:± 30°
Service life:Is bigger than 5,000,000 times (potentiometer type),
Is bigger than 10,000,000 times (Hall type)
Operation strength:3.5N (biggest)
Limit strength:50N
Weight:45g
Electrical parameter:
Potentiometer type:
Power supply voltage:< 36Vdc
Total resistance value:4K Ω 5K Ω;
Electrical angle:± 28 °
The median position voltage (relative power supply voltage):48% ~ 52%
The median position dead zone angle:± 2.5 °
Potentiometer loading maximum voltage:DC32V
Potentiometer allows the maximum power consumption (25):0.25W
Direction switch:
load capacity:10mA 30Vdc (resistive load)
Outset angle:± 3 ° ± 5 °
Hall type:
Power supply voltage:5Vdc
The total current:<10mA
Linear tolerance:± 3%
Power supply voltage:DC5.0V ± 10%
Load resistance:>10K Ω
Environmental parameter:
Operating temperature:-20 °C ~ +70 °C
Storage temperature:-40 °C ~ +85 °C

1-axis industrial joysticks Drawing:

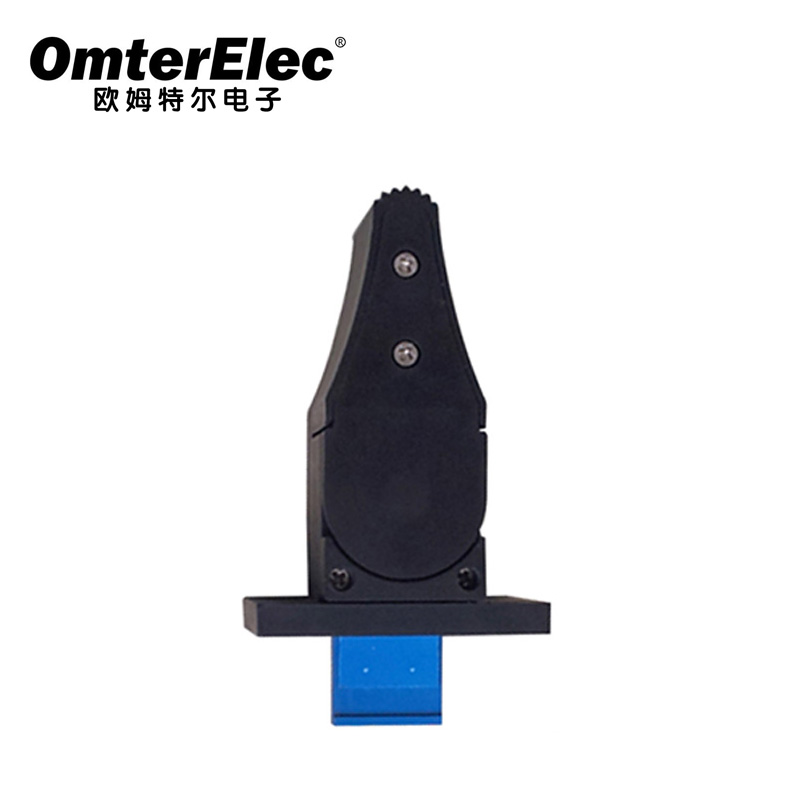

OM1A-H51 Miniature Single Axis Hall Effect Thumb ControllerOM1A-H51 Miniature Single Axis Hall Effect Thumb Controller

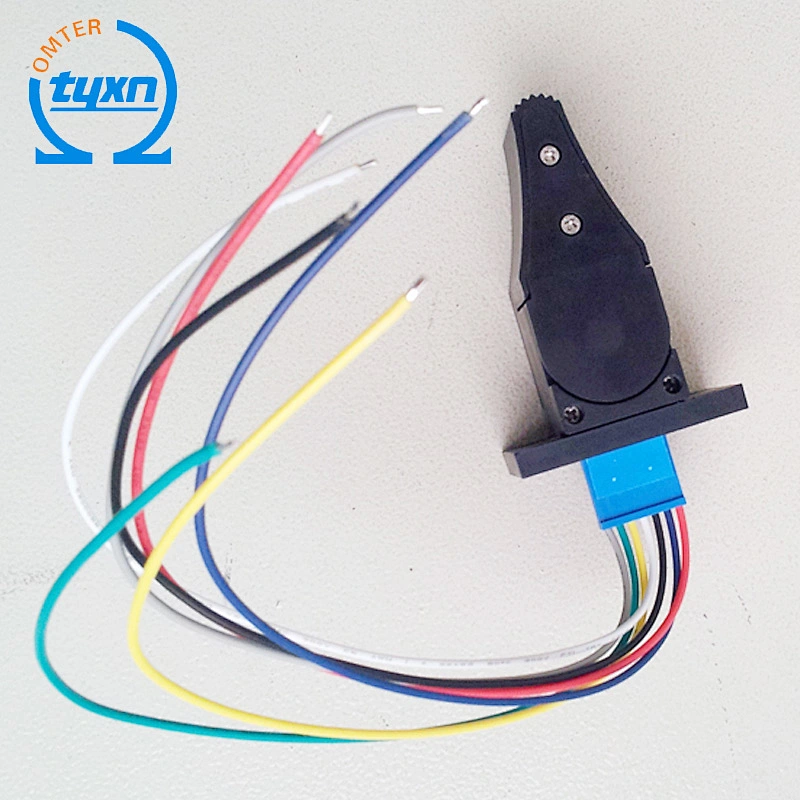

OM1A-H51 Miniature Single Axis Hall Effect Thumb Controller

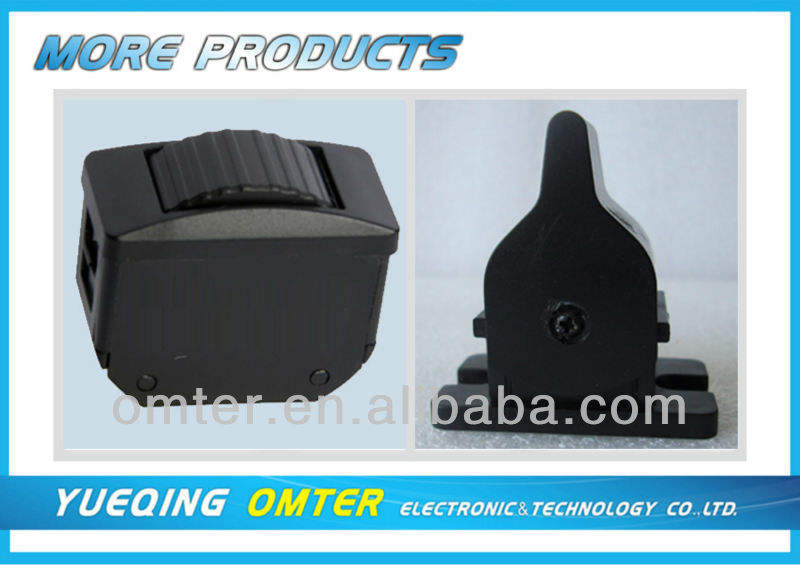

OM1A-P052 hall type single axis joystick
