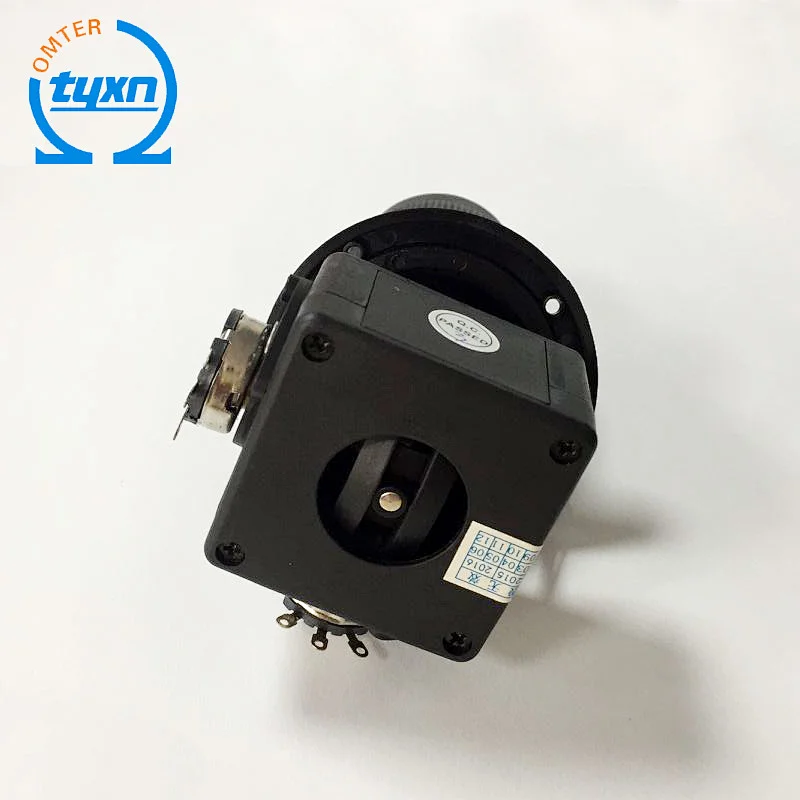

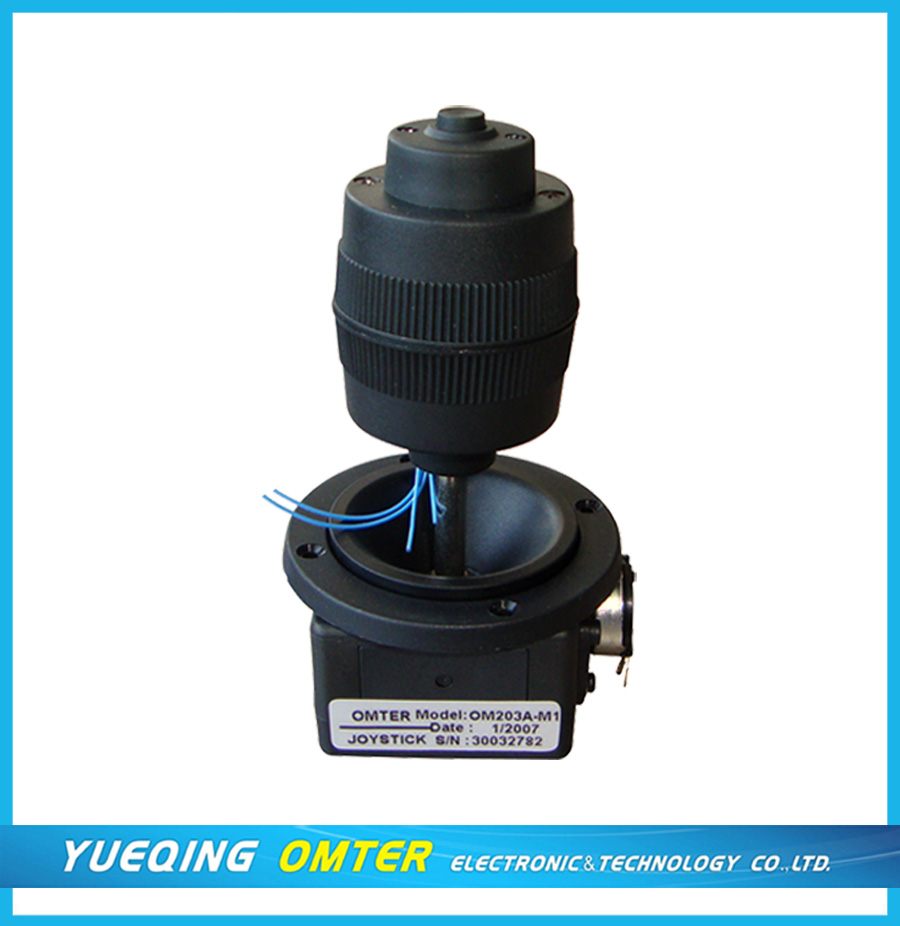

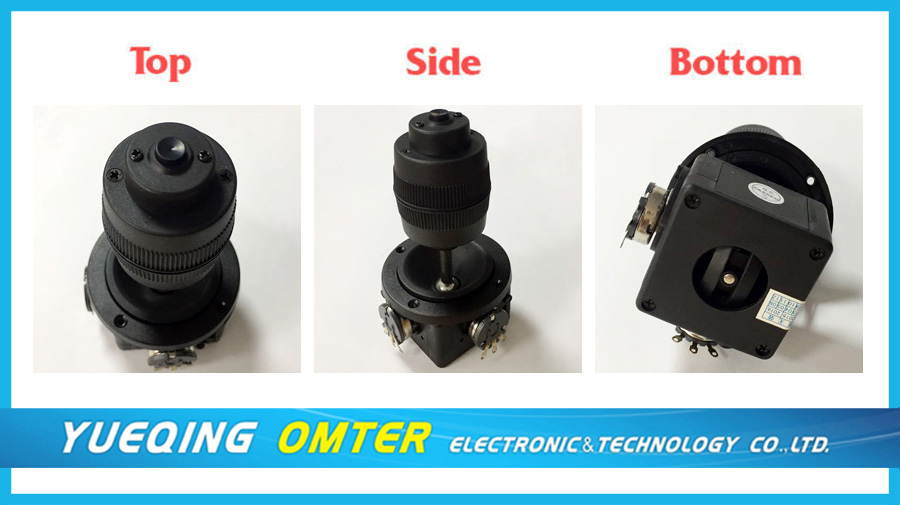

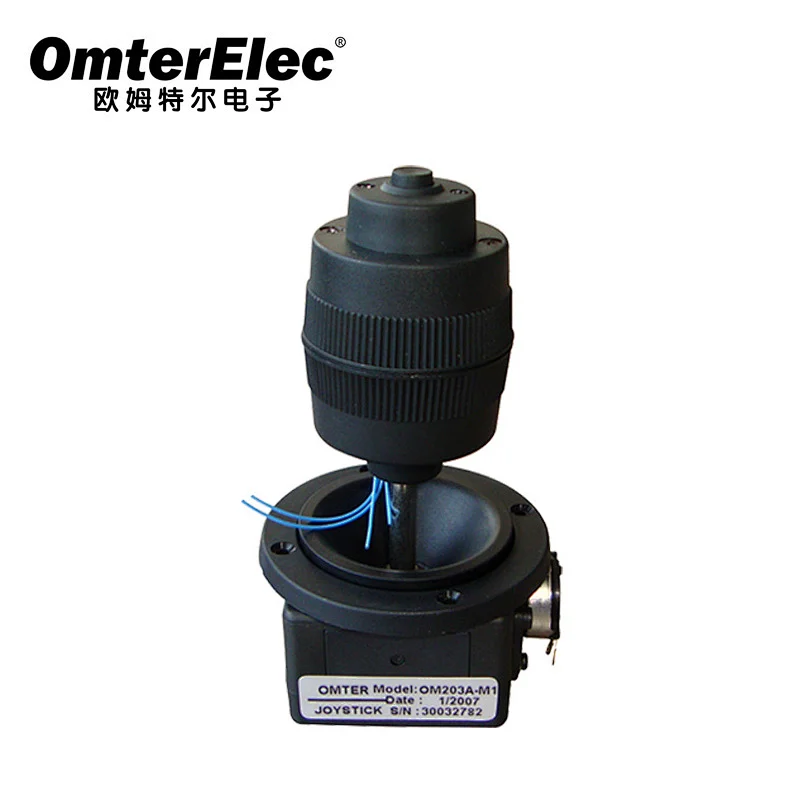

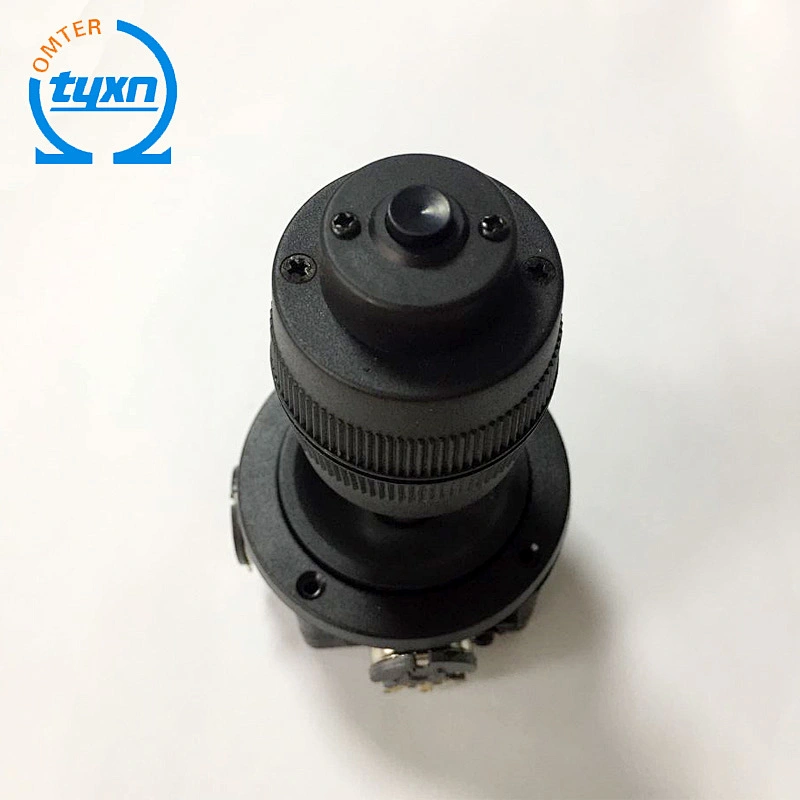

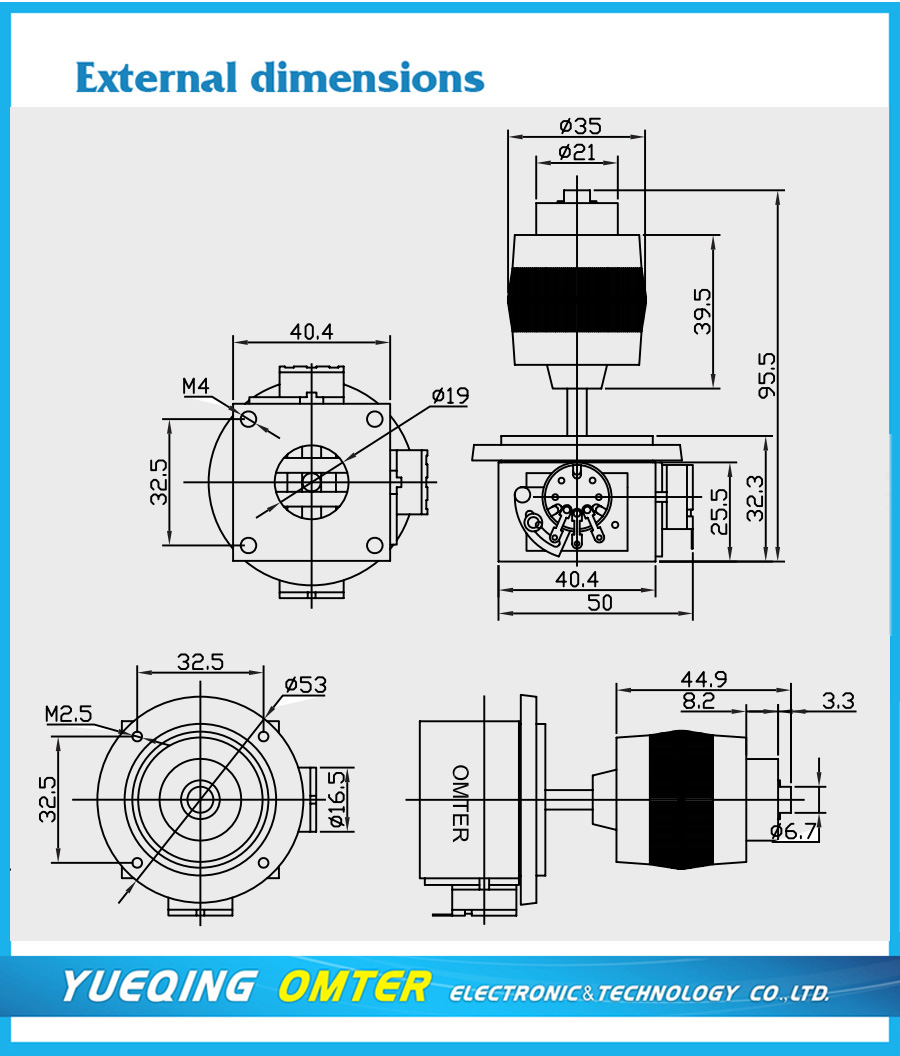

OM203A-M1 JOYSTICK AXIS OR AXES
Features:Flexible handling ,Small resetting error, Long life-time
Optionals:Terminal type,Lead length,Seal form,Switch,potentiometer,soft or heavy handling
Typical Applications:Move photography cctv controlsystem,Measurement equipments,Medical imaging system,Automative control,Video editing equipments,Industrial Instruments
| Electrical Date | |
| Specification | Unite |
| Resistance value | Standard 5K and 10k, On request |
| Resistance tolerance | ±20% |
| Independent Linearity | ±1% |
| Resloution | Essentially infinite |
| Temperature Coefficient resistance | ±400 ppm/°C |
| Output smoothness | 0.5 Maximum |
| X&Y Axis Electricity Corner | ±25° |
| Z Axis Electricity Corner | ±45° |
| OM300Z,OM400Z ,OM300Z Axis Potentiometers | AWG28 silver plated, PTFE insulated Colorful lead wires standard length100mm or on request |
| Insulation resistance | 50MΩ 500VDA, 60sec |
| Mechanical Date | |
| Specification | Unite |
| Operate Torque | X & Y Axis 90gf & 250 gf,Z Axis 330 gf |
| Restoration Error Rate | ±0.03KΩ |
| Prolepsis Mechanical Lifecycle | 500,000 cycle |
| Operating Temperature Range | -10°C-80°C |
| Potentiometer Selection: |
| M1: The total resistance value is 5K, but the effect adjust resistance range is from 1.8K to 2.5k,then from 2.5k to 3.2K. |
| M2: The total resistance value also is 5K, but the adjust range is from 0k to 2.5K then from 2.5K to 5K. |
| M3: The total resistance value is 10K, the adjust range is from 3.5K to 5k,then from 5K to 6.5K. |
| M4: The total resistance value is 10K, the adjust range is from 0K to 5K, then from 5K to 10K. |
| M5: The total resistance value is 100K, the adjust range is from 36K to 50 k,then from 50K to 64K. |
| M6: The total resistance value is 100K, the adjust range is from 0K to 50 k,then from 50 K to 100K. |
