Model NO.
OM800 series
Quantity:

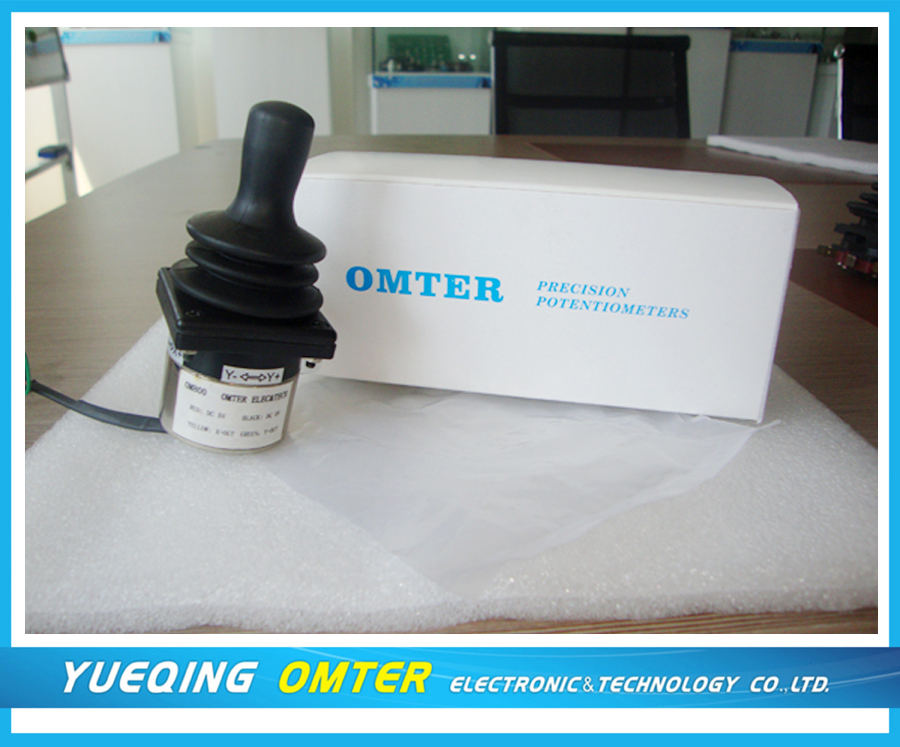

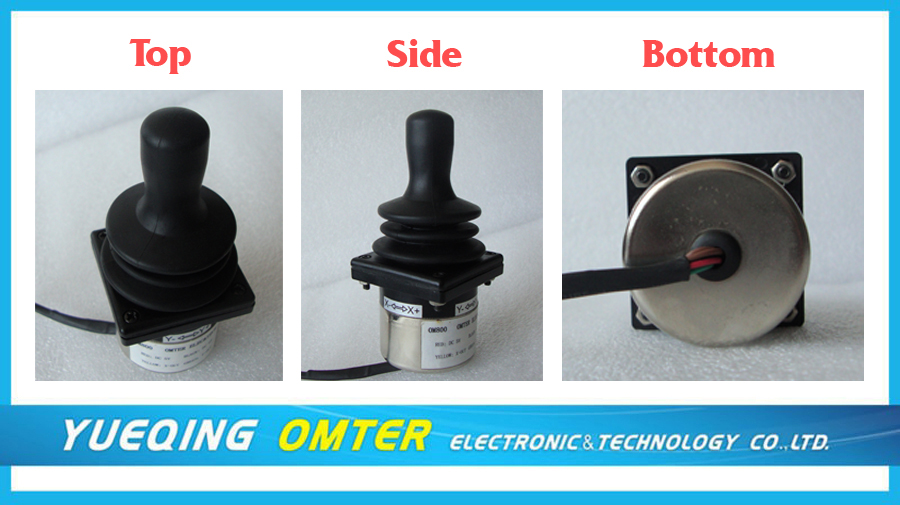

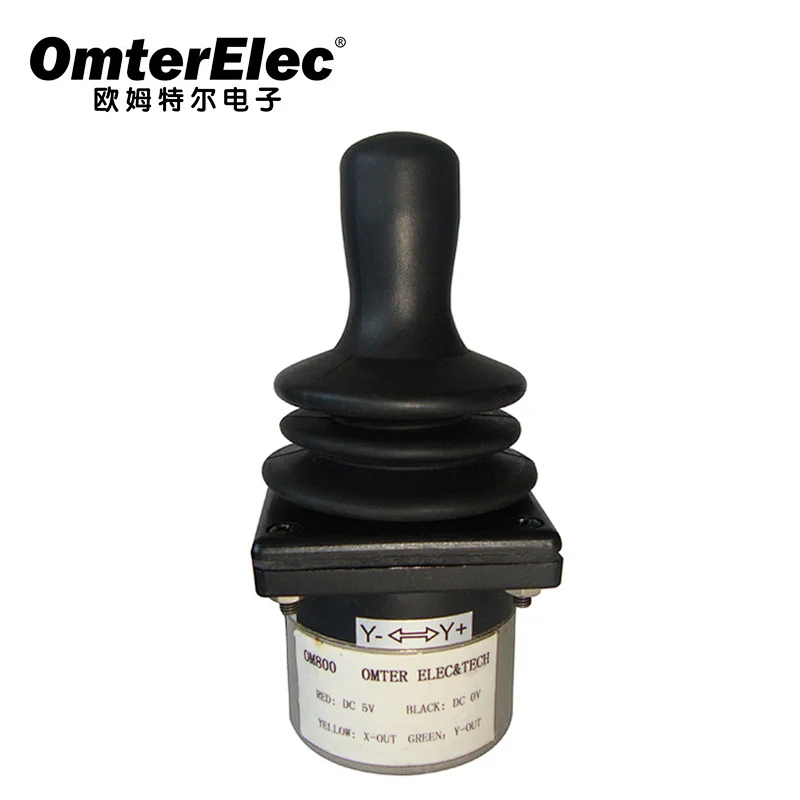

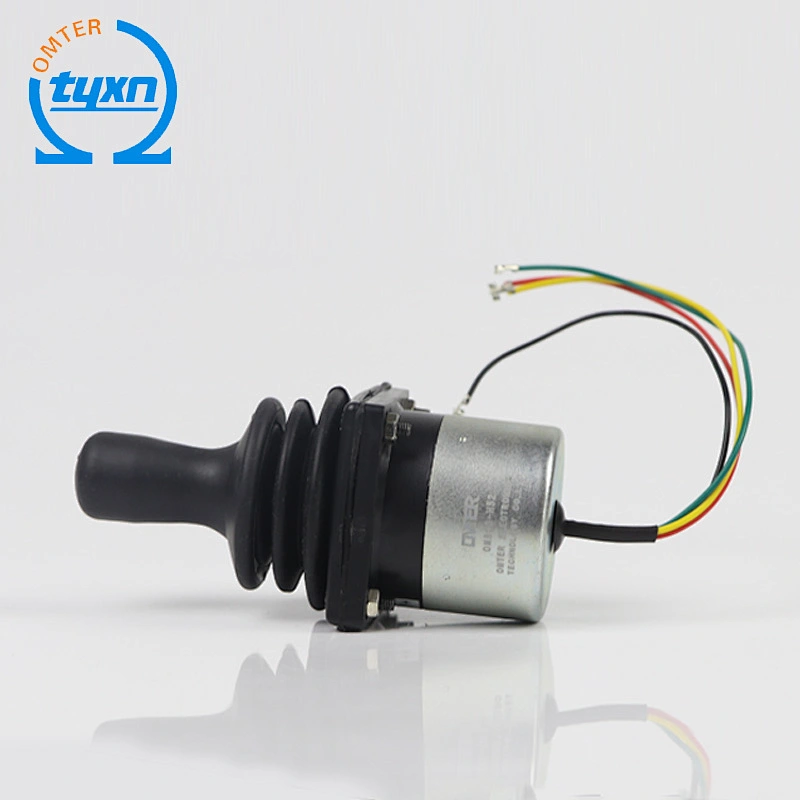

OM800 series industrial joystick

Product characteristic:

Spring automatic reset.

 Double axis in any direction operation. Button could select.

Could according to requirement select the output voltage range,Could choose RS232 or the USB connection output.

Application scope:

This series product mainly applies in the electrically operated wheelchair,the video frequency control device.

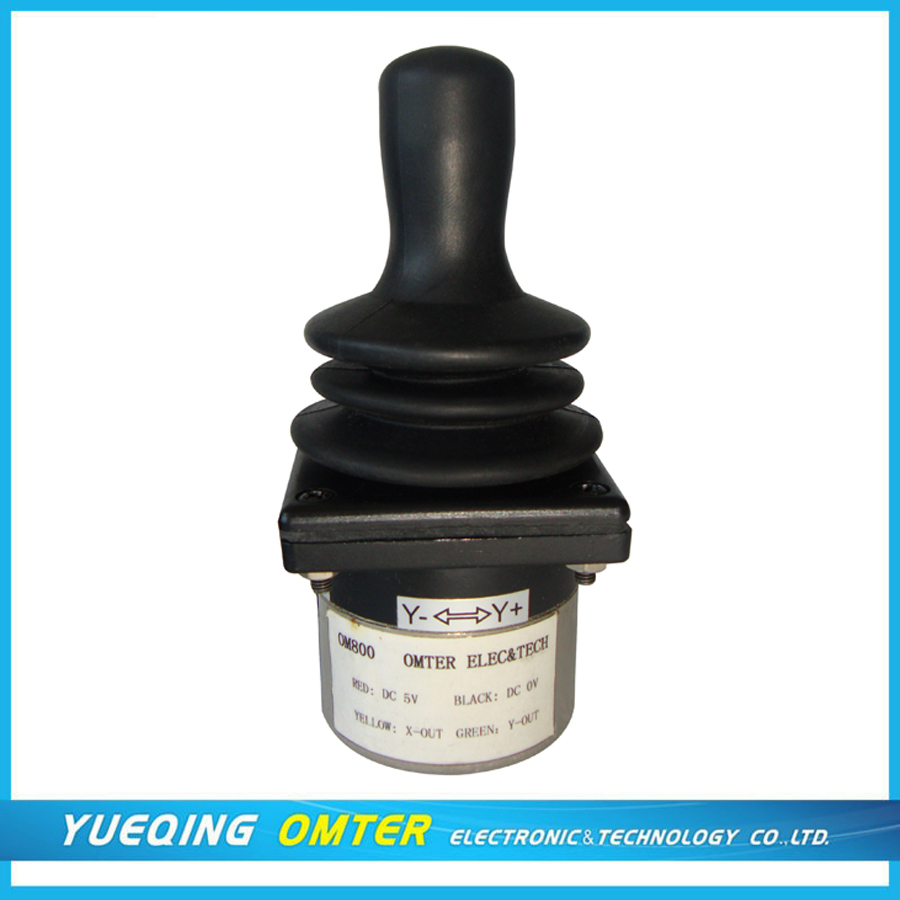

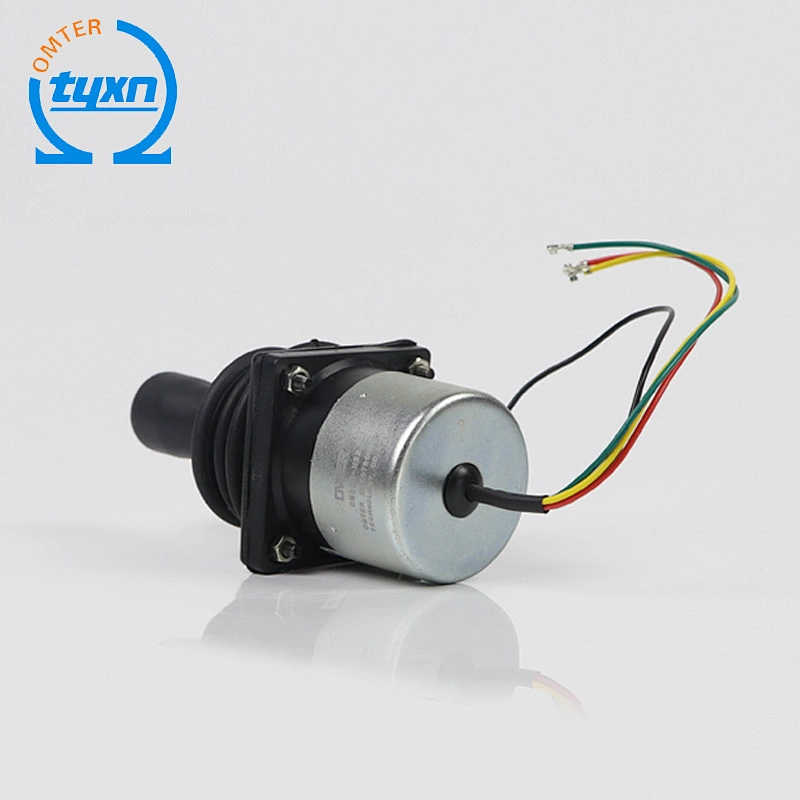

Electrical installment:

Line colorLine No.Function
Red1+5VDC
Black20V
Yellow3X-OUT
Green4Y-OUT
Product Selection:
OM800 - ooo
  1.           2.
Sub-item selection instructions:

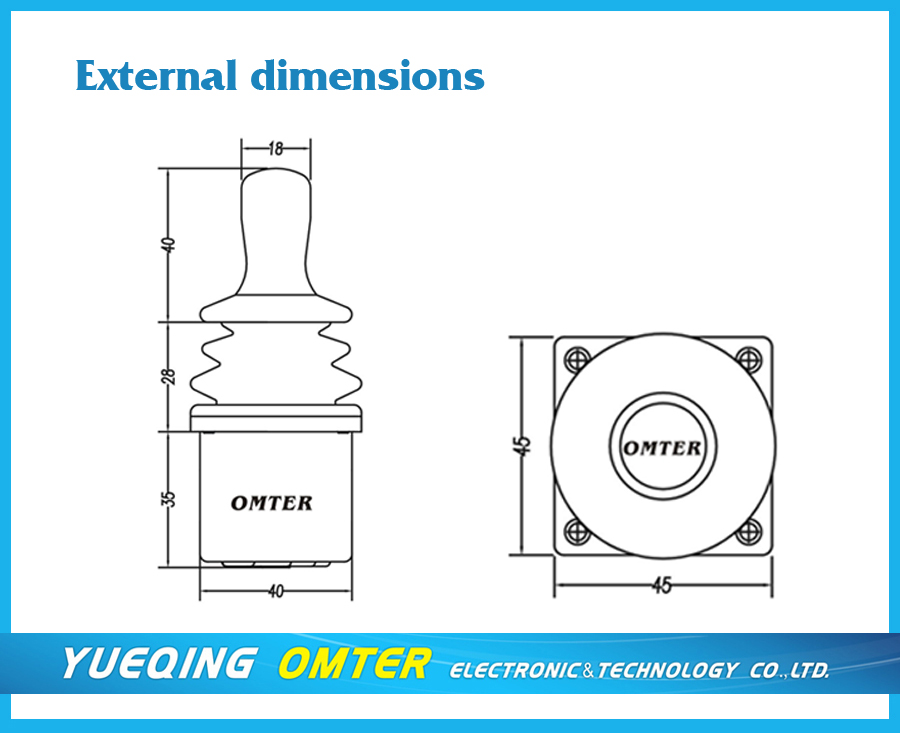

1. Product series numberOM800 double axis Hall type , the spring automatic reset, without direction switch,installment pitch of holes size 36mm*36mm Mainly uses in the wheelchair controls the video frequency control and the machine shop truck control
2.Output signal

H51= Hall type DC5V power source, output voltage 0.5V~2.5V~4.5V

H52= Hall type DC5V power source, output voltage 0V ~2.5V~5.0V

The RS232=RS232 serial digital signal output

The USB=USB connection digital signal output

 Technical parameter:

Mechanical parameter:
Swing angle:±25
Service life:Is bigger than 5,000,000 times
Operation strength:15N (biggest)
Limit strength:50N
Weight:120g
Electrical parameter:
Total current:<20mA
Linearity tolerance:± 5%
Power supply voltage:DC5V±10%
Load resistance:>10KΩ
Environment parameter:
Operating temperature scope:- 40°C~+80°C
Protection rank:IP65
