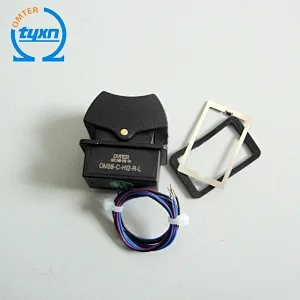

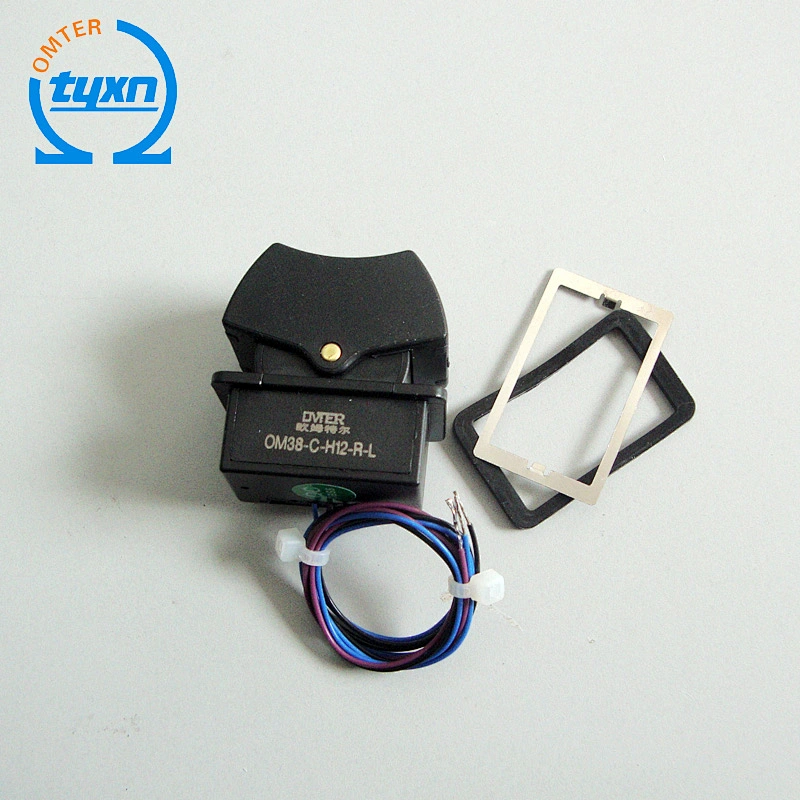

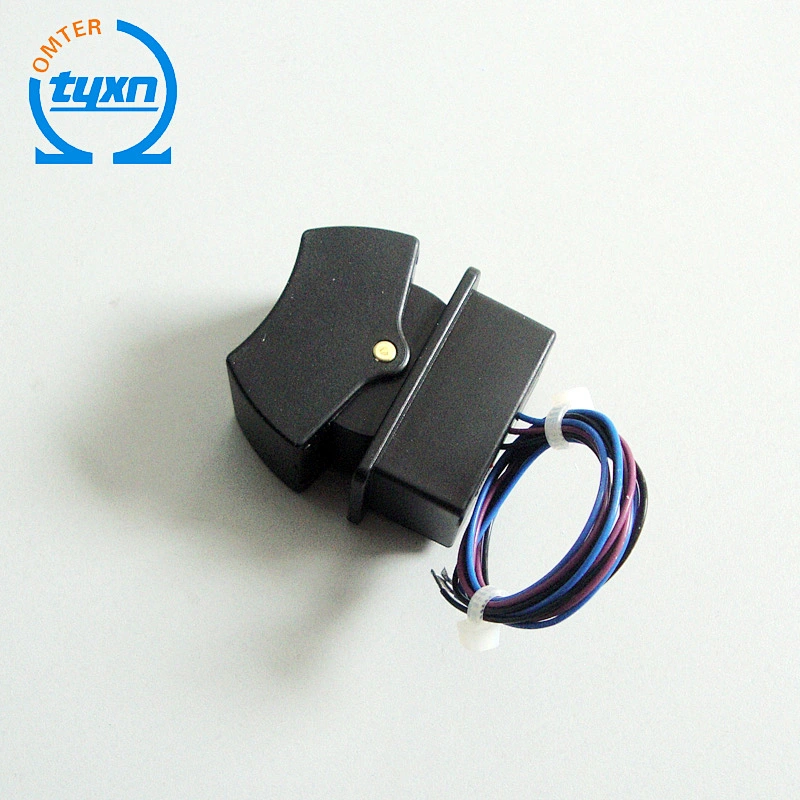

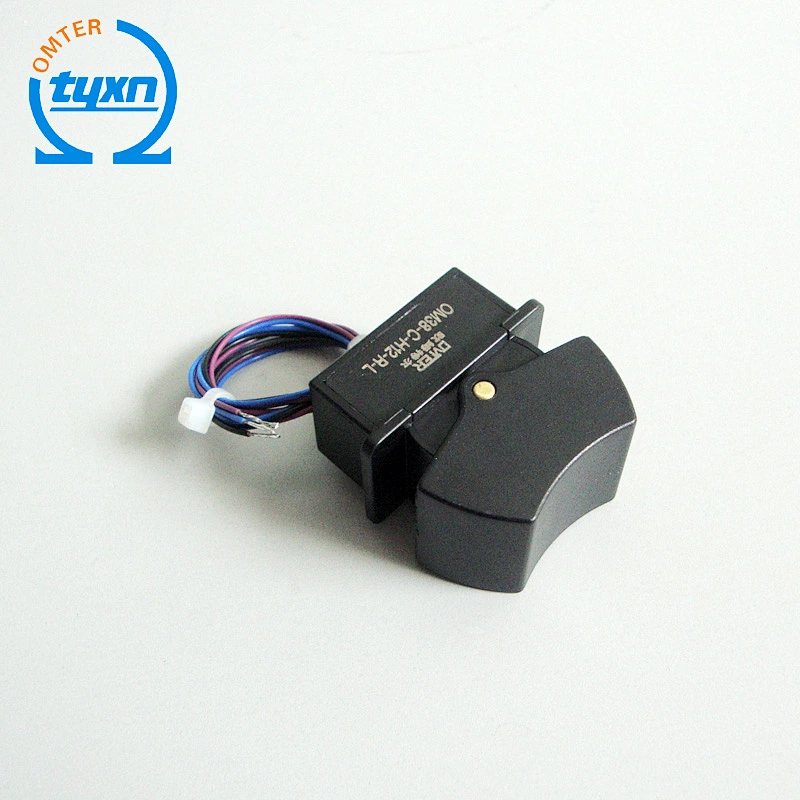

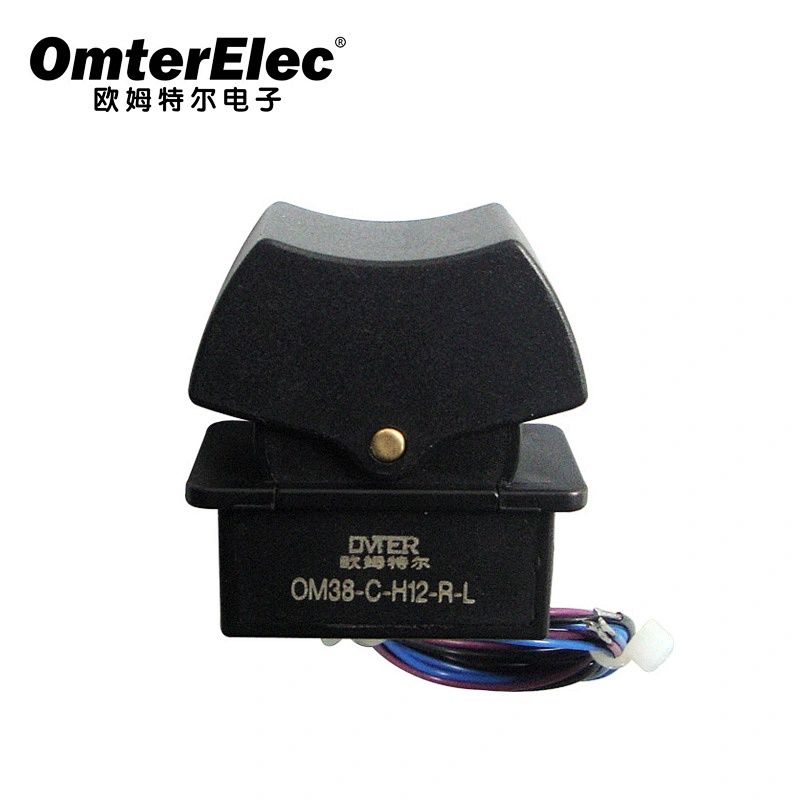

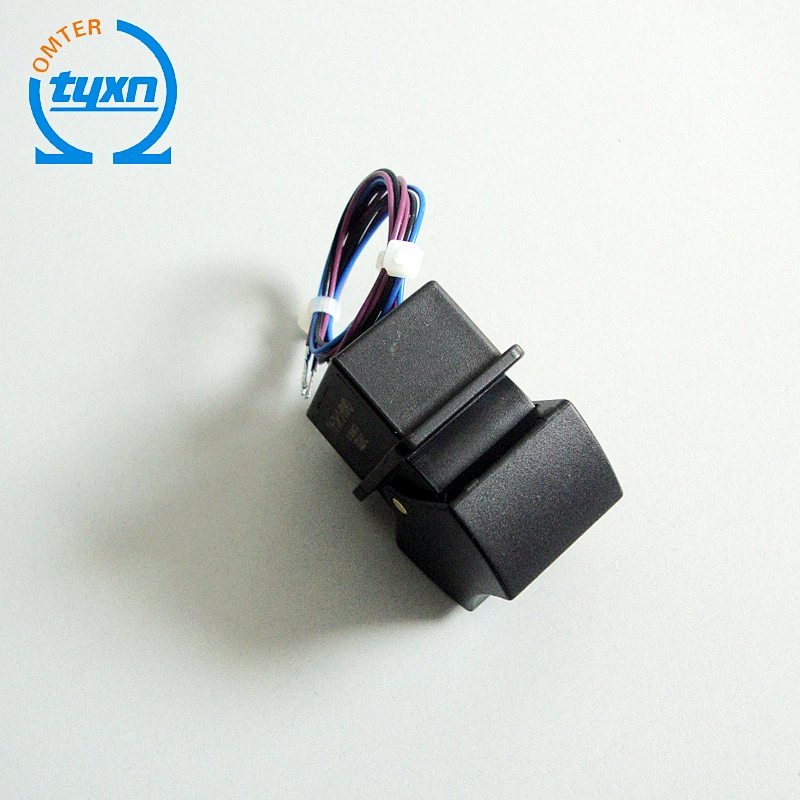

OM38-C-H11-R-L industrial joystick remote control
Product characteristic:
Hall no contact detection
Application scope:
This series product mainly applies in a variety of operating handle,output 0.5v~2.5v~4.5v voltage.
Electrical installment:
| Line color | Line No. | Function |
| Red | 1 | 5VDC |
| Black | 2 | 0V |
| Green | 3 | OUT |
| Product Selection: | |
| OM35 |
| Electrical parameter: | |
| Input voltage: | 5VDC |
| Output: | 0.5V~2.5V~4.5V |
| Swing angle: | ±42 degree |
| service life: | more than 100,000times |
| stroke within the operating force: | 1.8N(max) |
| Operating temperature scope: | - 40°C~+80°C |
| Protection rank: | IP65 |
