Model NO.
OM5000-FCF-SCL-P101-MS00
Quantity:

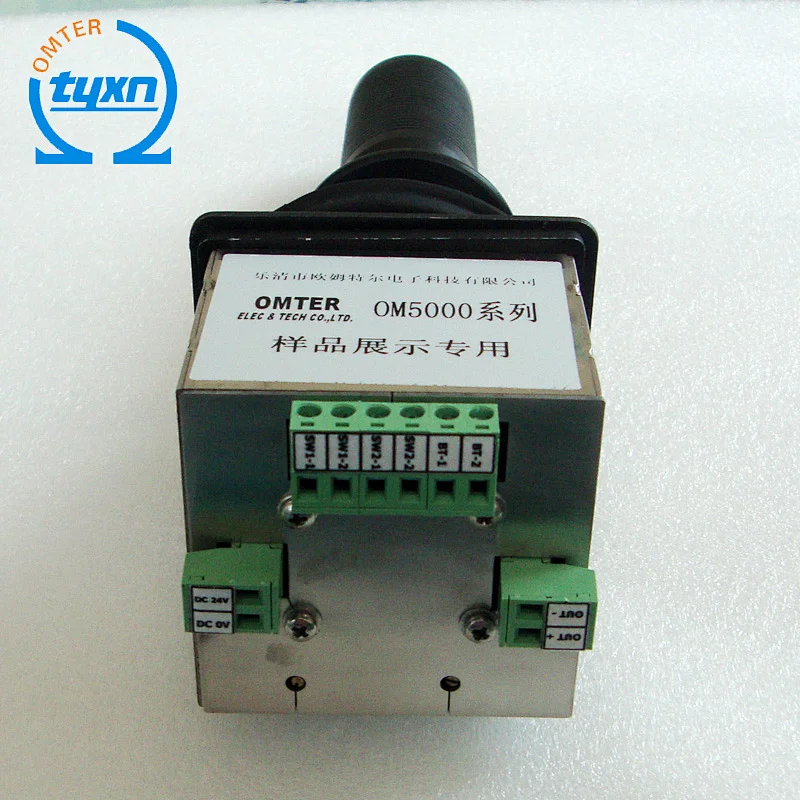

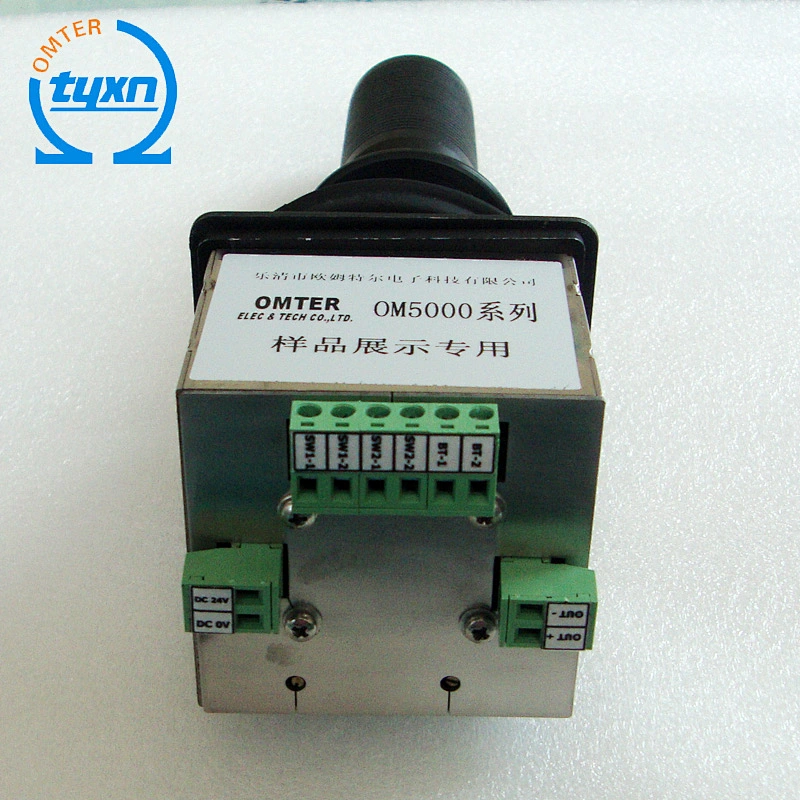

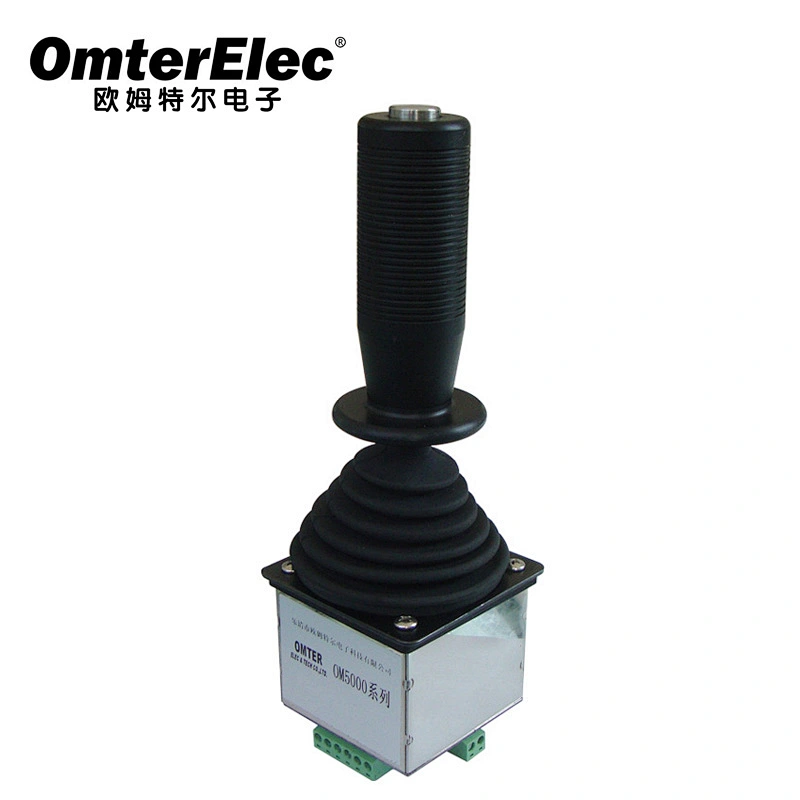

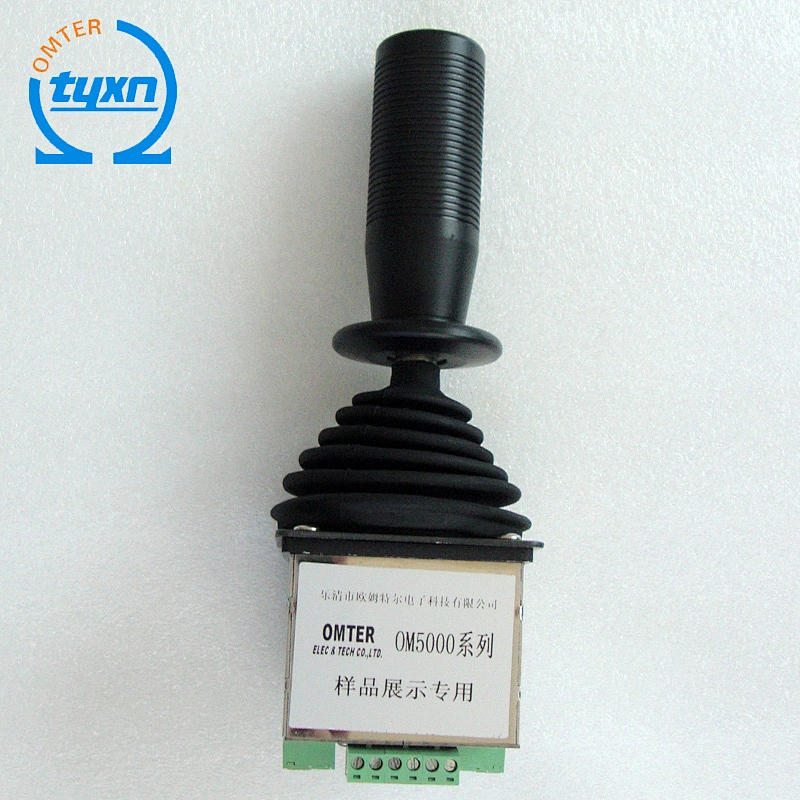

OM5000-FCF-SCL-P101-MS00 industrial joystick manufacturers

Product characteristic:

The friction localization or the spring automatic reset, the center position could selecting mechanism locking .

single axis front and back direction operation or single direction operation

Could choose the Hall non-contact angle detect or the potentiometer angle detect method.
.Could select and match the direction micro switch (switch maximum current 10A)

Could dispose many kinds of handle top body type.

Application scope:

This series product mainly applies in turns on lathe digs the drilling machine,the upper air fire engine,
the hoist crane, the shield machine, the coal mine elevator,the petroleum elevator.

Product Selection:
OM5000 - ooo
  1.           2.
Sub-item selection instructions:
1. Product series numberThe OM5000 series industry handle, the single axis friction localization or
the spring return, the installment pitch of holes size is 58mm
Mainly applies in rotary drilling rig, the aerial fire truck, crane,
the shield, coal hoist, oil-hoist
2.Operating mode

FCF= friction localization, the center position with feel


FEF= friction localization, the beginning (or end point) with feel


FCL= friction localization, the center position machinery locking
The FEL= friction localization, the beginning (or end point) the machinery locking
The SC0= spring return, returns to the center position
SCL= spring return, returns to the center position, the center position machinery locking
The SE0= spring return, return to the beginning
SEL= spring return, return to the beginning, the beginning (or end point) the mechanical locking


Output signal:

P101= with 10KΩ center-tapped potentiometer 0~100% voltage output

H51= Hall type DC5V input, 0.5V~2.5V~4.5V voltage output

H52= Hall type DC5V input, 0V ~2.5V~5V voltage output

H53= Hall type DC5V input,1.25V~2.5V~3.75V voltage output

U11=DC12V input, - 10V~0V ~+10V voltage output

U12=DC12V input, +10V ~0V ~+10V voltage output

U13=DC12V input, - 5V~0V ~+5V voltage output

U14=DC12V input, +5V ~0V ~+5V voltage output

U15=DC12V input, 0~+10V voltage output

NA= non-simulated signal output

Micro switch :

MS00= without micro switch

MS21= with 10A beginning position micro switch

MS22= with 10A front and back position micro switch

The detailed information according to the datasheet choose.

Technical parameter:

Mechanical parameter:
Swing angle:±37.5 degree
Service life:Is bigger than 5,000,000 times (potentiometer type),
is bigger than 10,000,000 times (Hall type)
Operation strength:15N (biggest)
Limit strength:50N
Weight:500g(without top port)
Electrical parameter:
Potentiometer type :10k ohm
Total resistance value: 10Kohm
Precision:10%
Central angle:+-3 degree
Environment parameter:
Operating temperature scope:- 20°C~+70°C
Protection rank:IP65(above the mounting panel

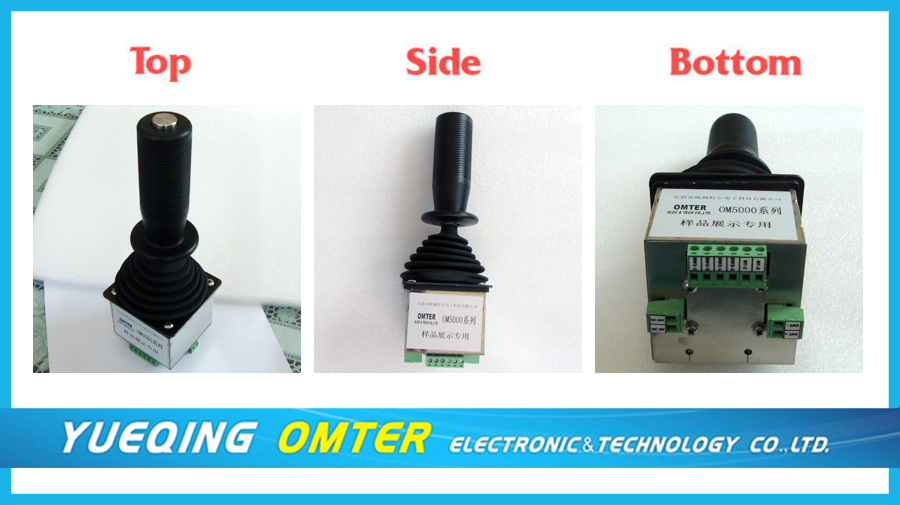

.jpg
