The friction localization or the spring automatic reset, the center position could selecting mechanism locking .
single axis front and back direction operation or single direction operation
Could choose the Hall non-contact angle detect or the potentiometer angle detect method. .Could select and match the direction micro switch (switch maximum current 10A)
Could dispose many kinds of handle top body type.
This series product mainly applies in turns on lathe digs the drilling machine,the upper air fire engine, the hoist crane, the shield machine, the coal mine elevator,the petroleum elevator.

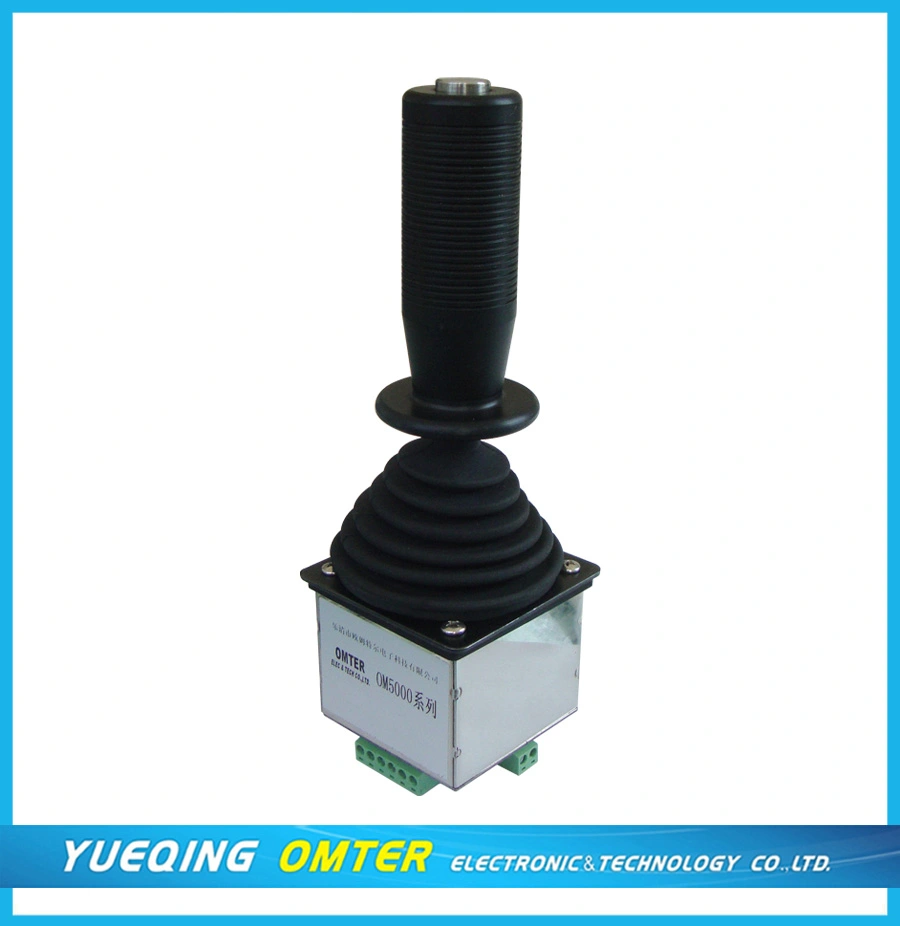

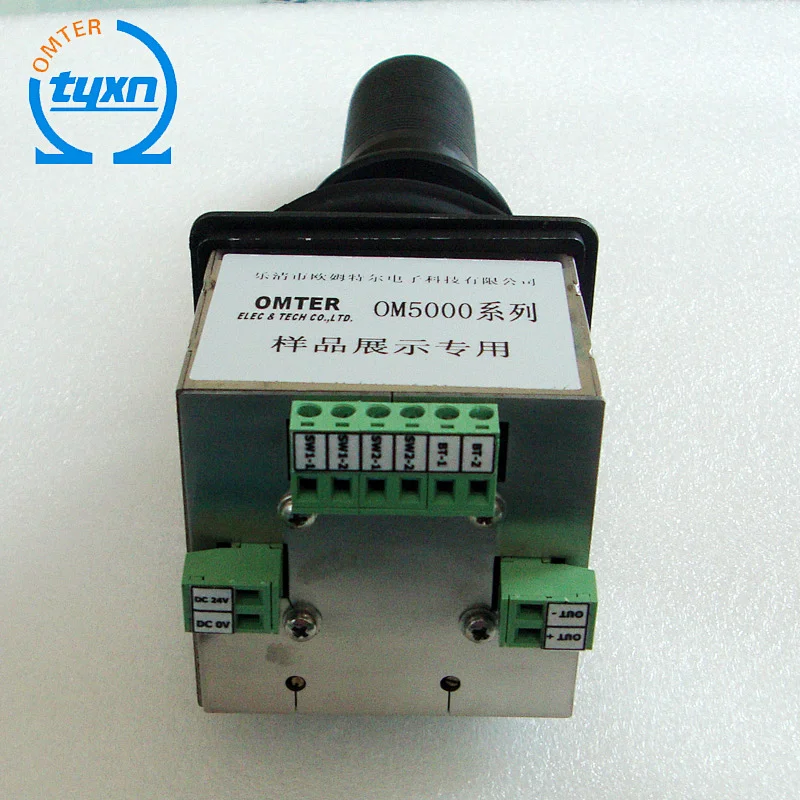

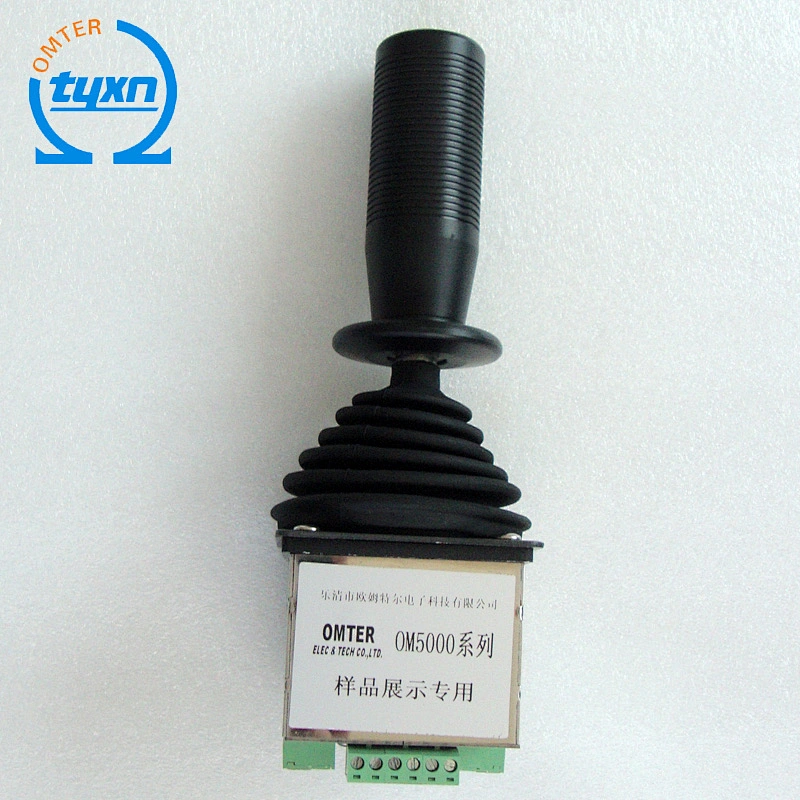

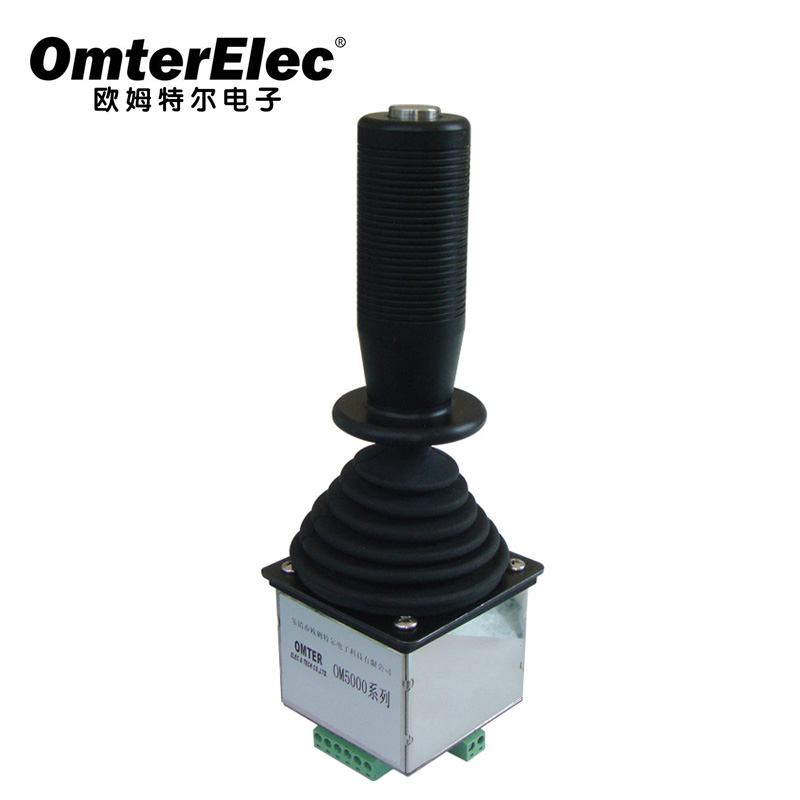

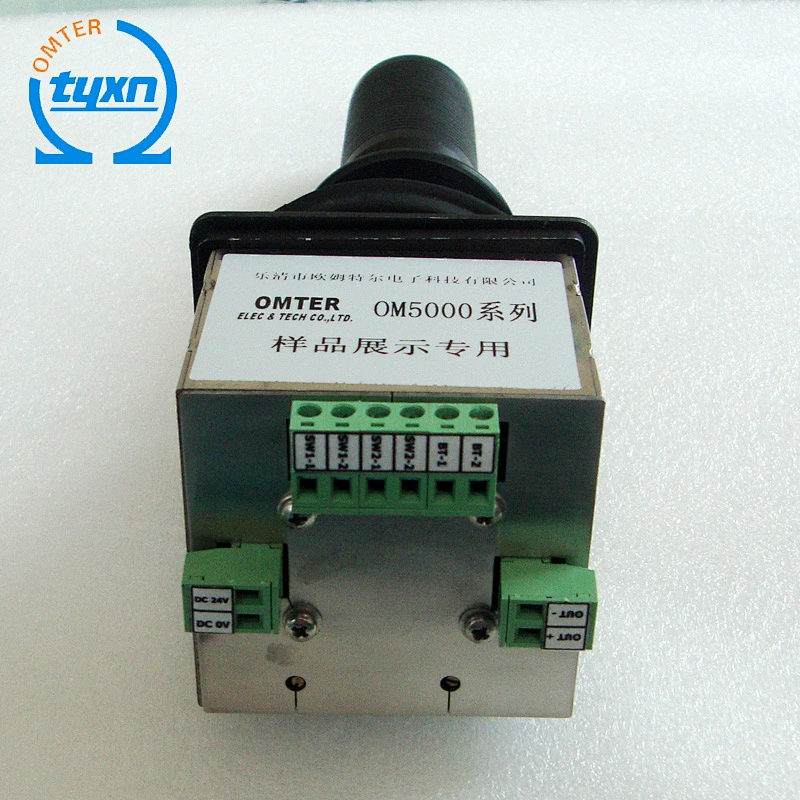

OM5000 - ooo
Sub-item selection instructions:
1. Product series number
The OM5000 series industry handle, the single axis friction localization or the spring return, the installment pitch of holes size is 58mm Mainly applies in rotary drilling rig, the aerial fire truck, crane, the shield, coal hoist, oil-hoist
FCF= friction localization, the center position with feel
FEF= friction localization, the beginning (or end point) with feel
FCL= friction localization, the center position machinery locking The FEL= friction localization, the beginning (or end point) the machinery locking The SC0= spring return, returns to the center position SCL= spring return, returns to the center position, the center position machinery locking The SE0= spring return, return to the beginning SEL= spring return, return to the beginning, the beginning (or end point) the mechanical locking
P101= with 10KΩ center-tapped potentiometer 0~100% voltage output
H51= Hall type DC5V input, 0.5V~2.5V~4.5V voltage output
H52= Hall type DC5V input, 0V ~2.5V~5V voltage output
H53= Hall type DC5V input,1.25V~2.5V~3.75V voltage output
U11=DC12V input, - 10V~0V ~+10V voltage output
U12=DC12V input, +10V ~0V ~+10V voltage output
U13=DC12V input, - 5V~0V ~+5V voltage output
U14=DC12V input, +5V ~0V ~+5V voltage output
U15=DC12V input, 0~+10V voltage output
NA= non-simulated signal output
Micro switch :
MS00= without micro switch
MS21= with 10A beginning position micro switch
MS22= with 10A front and back position micro switch
The detailed information according to the datasheet choose.
Is bigger than 5,000,000 times (potentiometer type), is bigger than 10,000,000 times (Hall type)
