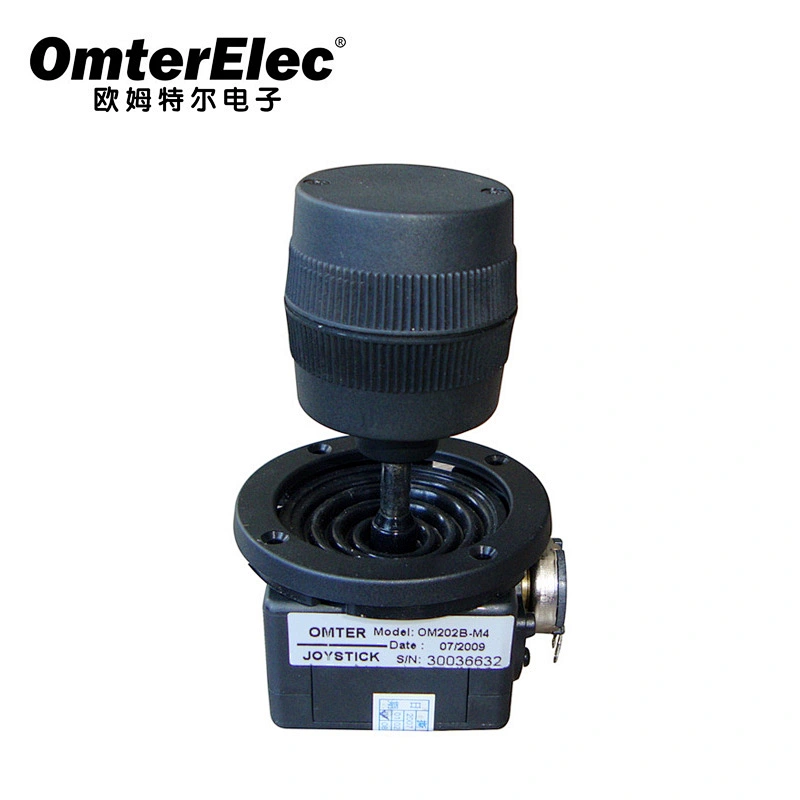

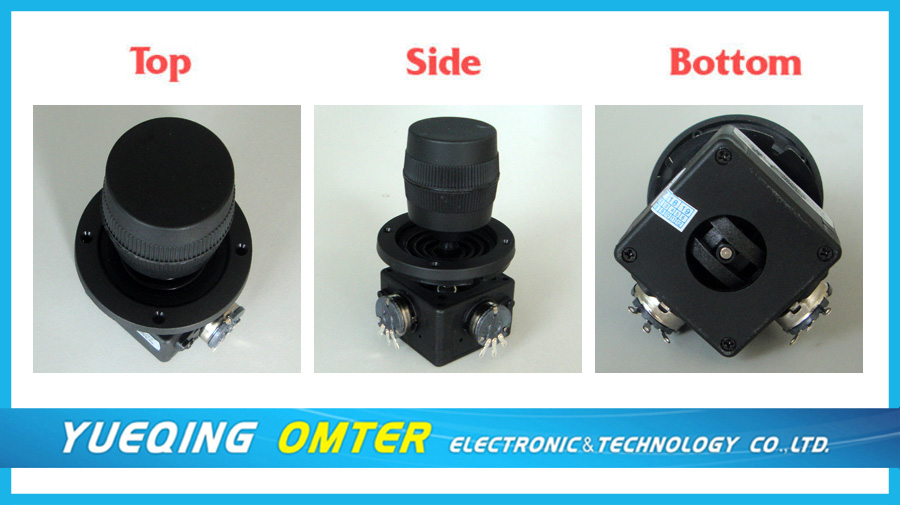

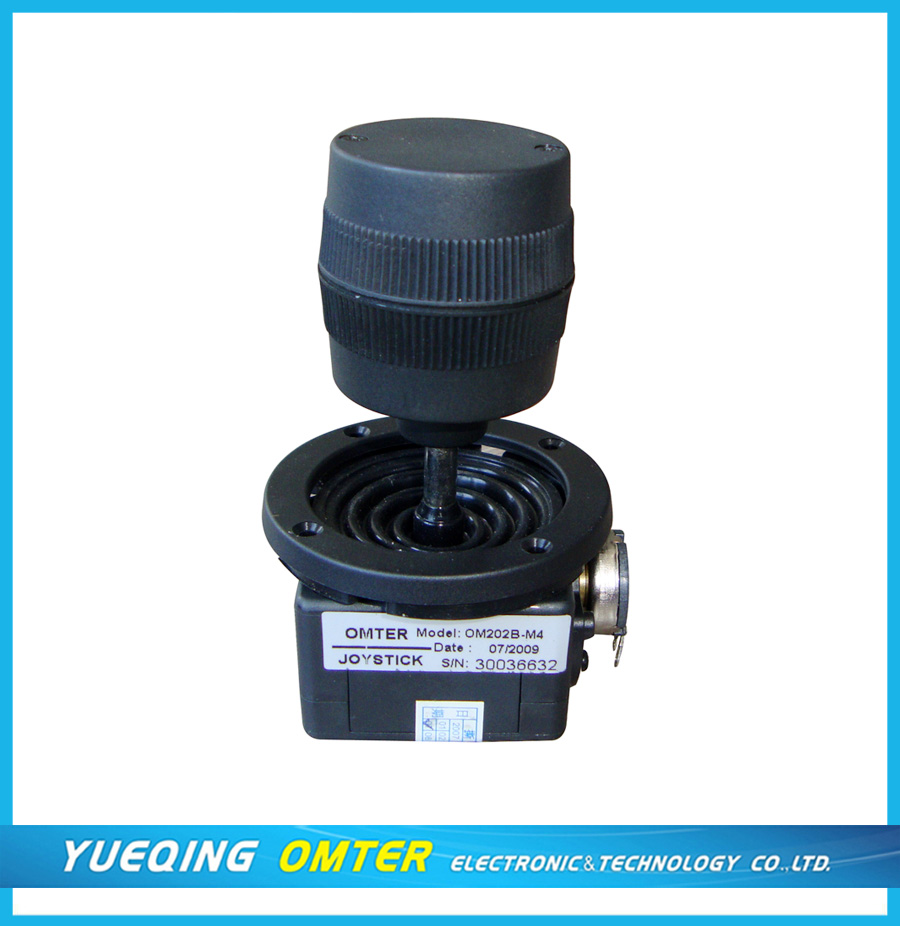

OM202B-M2 hand operated joystick controllers


Features:Flexible handling ,Small resetting error, Long life-time

Optionals:Terminal type,Lead length,Seal form,Switch,potentiometer,soft or heavy handling

Typical Applications:Move photography cctv controlsystem,Measurement equipments,Medical imaging system,Automative control,Video editing equipments,Industrial Instruments

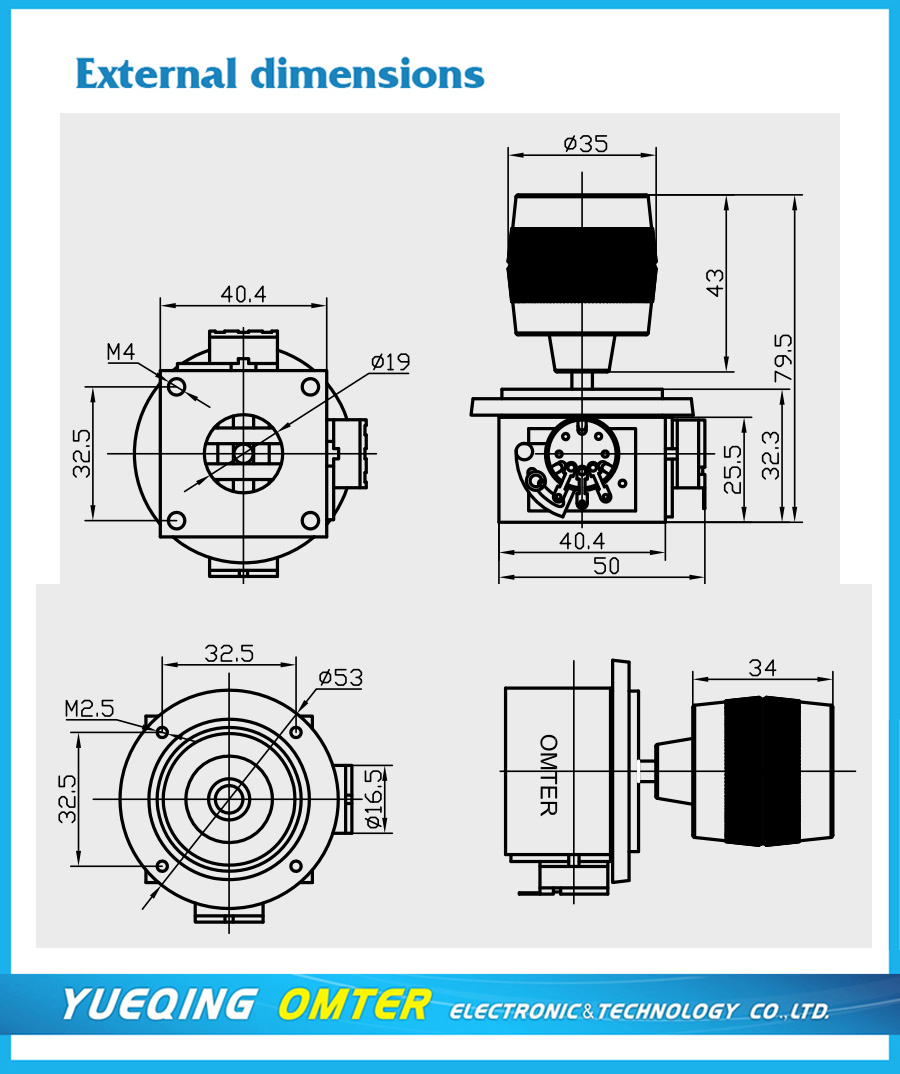

Electrical Date
SpecificationUnite
Resistance valueStandard 5K and 10k, On request
Resistance tolerance±20%
Independent Linearity±1%
ResloutionEssentially infinite
Temperature Coefficient resistance±400 ppm/°C
Output smoothness0.5 Maximum
X&Y Axis Electricity Corner±25°
Z Axis Electricity Corner±45°
OM300Z,OM400Z ,OM300Z Axis PotentiometersAWG28 silver plated, PTFE insulated Colorful lead wires standard length100mm or on request
Insulation resistance50MΩ 500VDA, 60sec
Mechanical Date
SpecificationUnite
Operate TorqueX & Y Axis 90gf & 250 gf,Z Axis 330 gf
Restoration Error Rate±0.03KΩ
Prolepsis Mechanical Lifecycle500,000 cycle
Operating Temperature Range-10°C-80°C
Potentiometer Selection:
M1: The total resistance value is 5K, but the effect adjust resistance range is from 1.8K to 2.5k,then from 2.5k to 3.2K.
M2: The total resistance value also is 5K, but the adjust range is from 0k to 2.5K then from 2.5K to 5K.
M3: The total resistance value is 10K, the adjust range is from 3.5K to 5k,then from 5K to 6.5K.
M4: The total resistance value is 10K, the adjust range is from 0K to 5K, then from 5K to 10K.
M5: The total resistance value is 100K, the adjust range is from 36K to 50 k,then from 50K to 64K.
M6: The total resistance value is 100K, the adjust range is from 0K to 50 k,then from 50 K to 100K.
