Model NO.
OM1200-H52
Quantity:

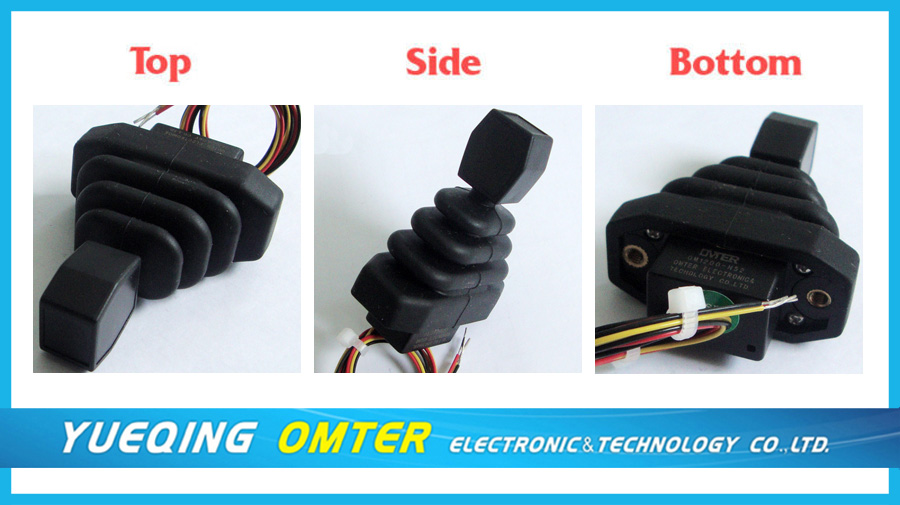

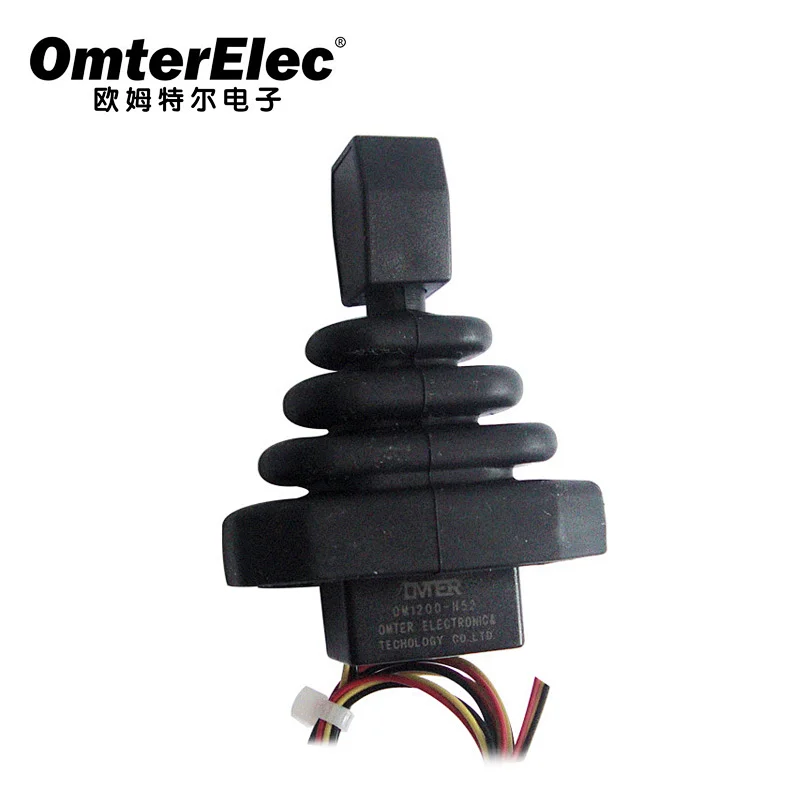

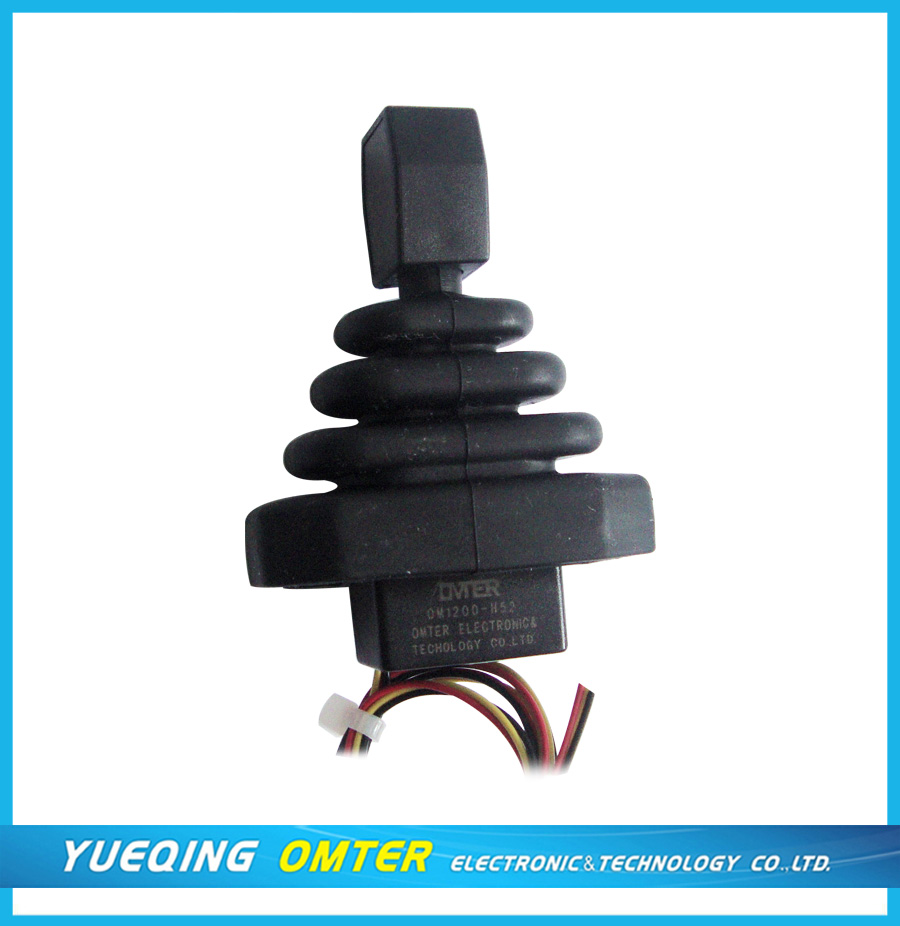

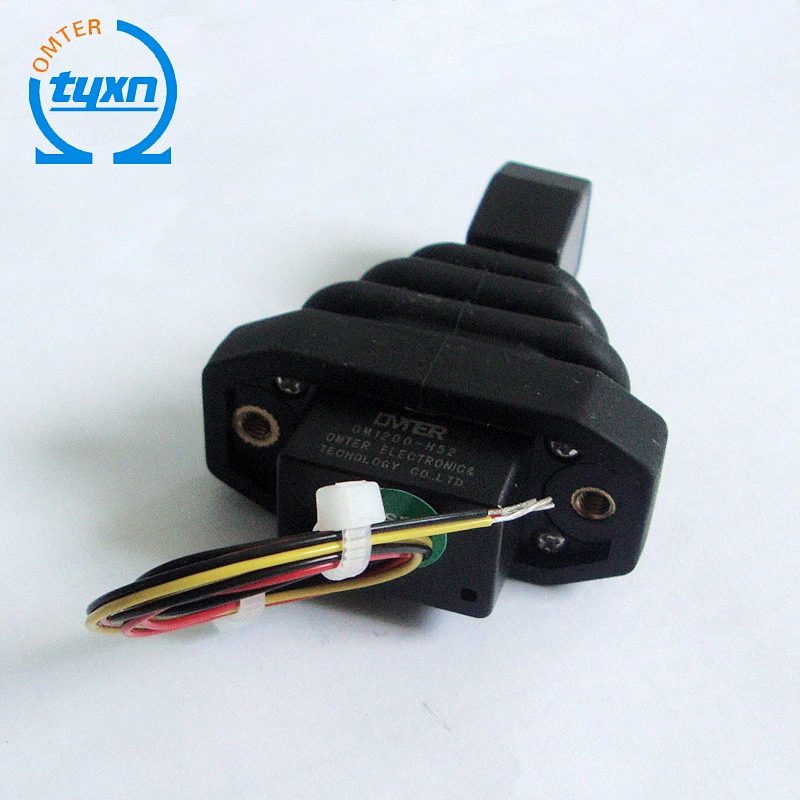

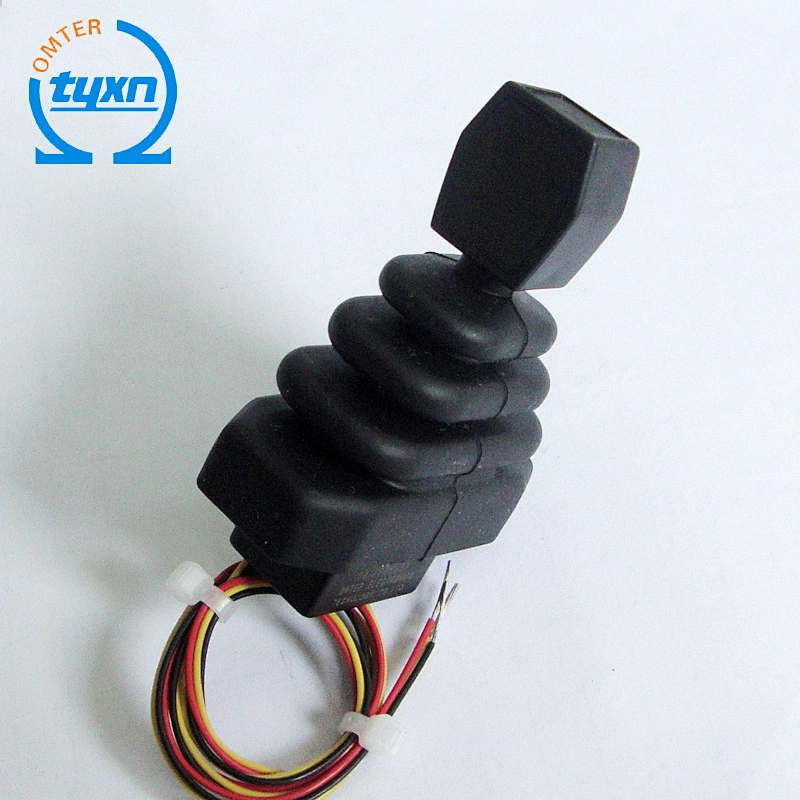

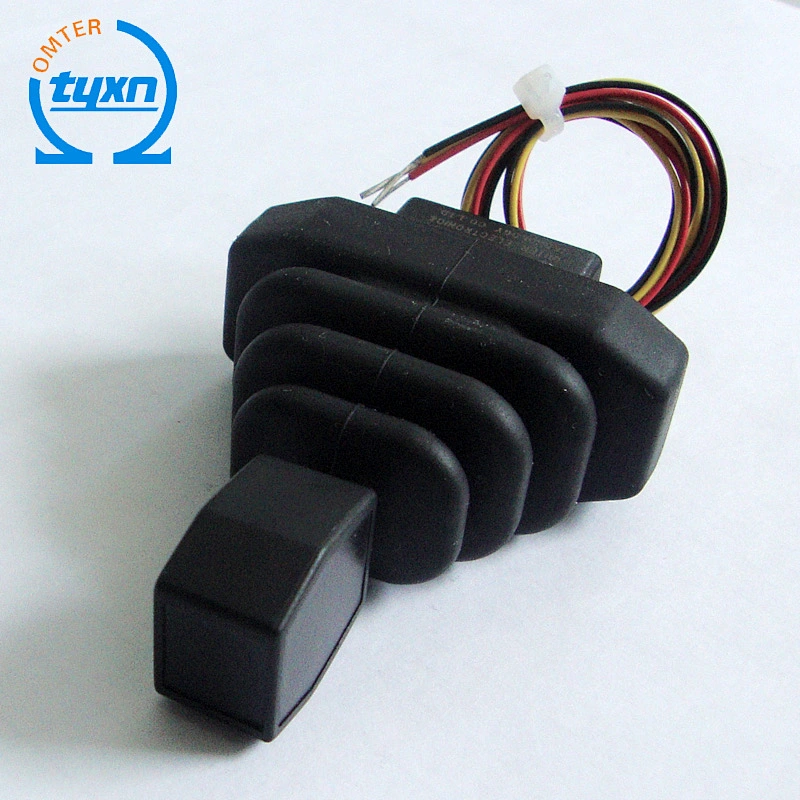

OM1200-H52 hall sensor joystick


Product characteristic:

Spring automatic reset. finfertips-type operation.

Could single axis front and rear direction operation.

Non-contatc single hall or double hall sensor, non-directional switch.

Could select different output voltage range

Application scope:

The products are mainly used in industrial remote control, various engineering vehicles or industrial machinery and equipment control panel.

Product selection:
OM1200 - ooo
       1.       2.
Sub-item selection instructions:
1.Product series numberOM1200 series industry handle
2.Output signal

H51= Hall type, the input voltage 10% ~ 5Vdc, 50% ~ 90%Vdc voltage output

H52= Hall type, the input voltage 0% ~ 5Vdc, 50% ~ 100%Vdc voltage output

H53=Single hall sensor , supply voltage Vs is 5Vdc, 25%~50%~75%Vs voltage output

2H51=Single hall sensor , supply voltage Vs is 5Vdc, 10%~50%~90%Vs voltage output

Technical parameter:

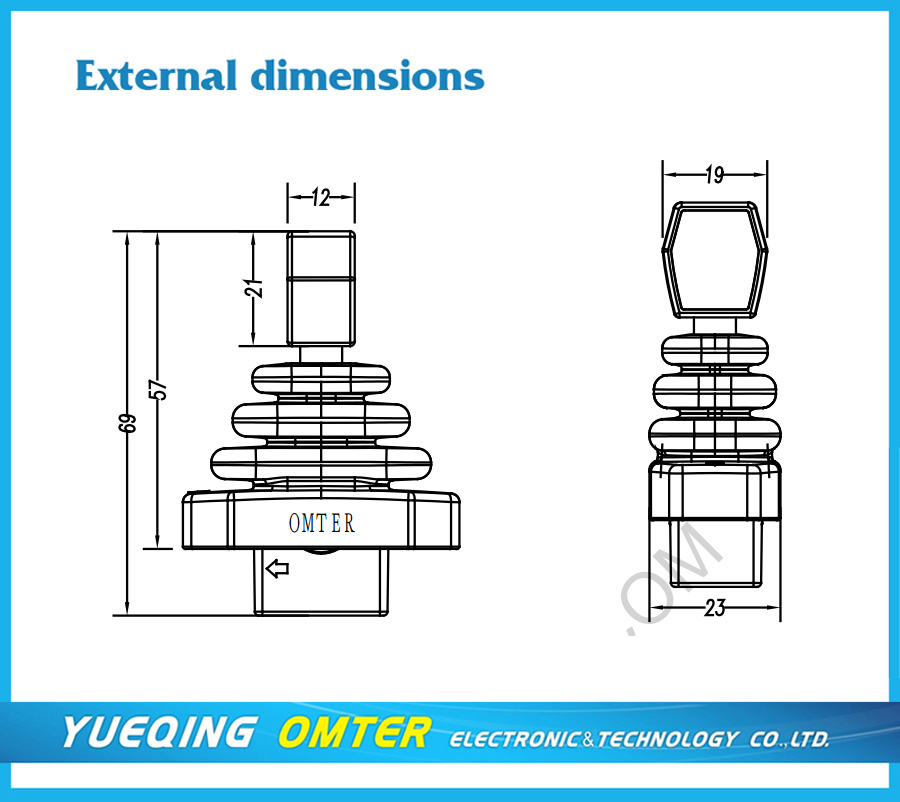

Mechanical parameter:
Swing angle:± 30°
Service life:Is bigger than 10,000,000 times
Operation:7.2N (maximum)
Limit strength:100N
Weight:45g
Electrical parameter:
Input voltage voltage:5V+-0.5V
The  maximum supply  current:11mA
The maximum output current of the voltage output:15mA
Dead zone angle:< +-3 degree
output voltage linearity error:<10%
Environmental parameter:
Operation temperature range:-40 °C ~ +80 °C
Protection grade:IP67
