Model NO.
OM38-C-H12-R-L
Quantity:

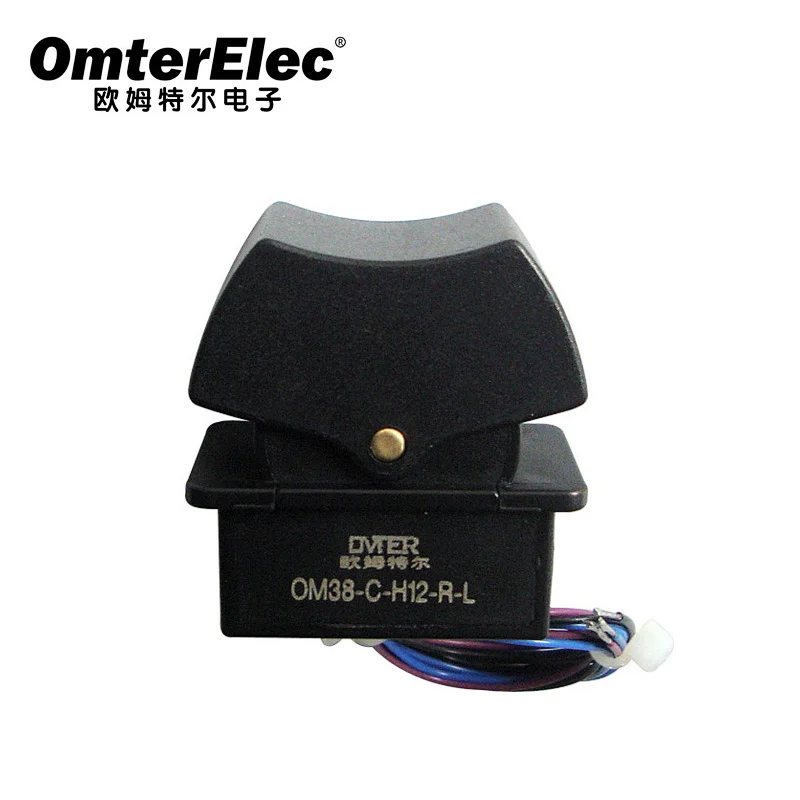

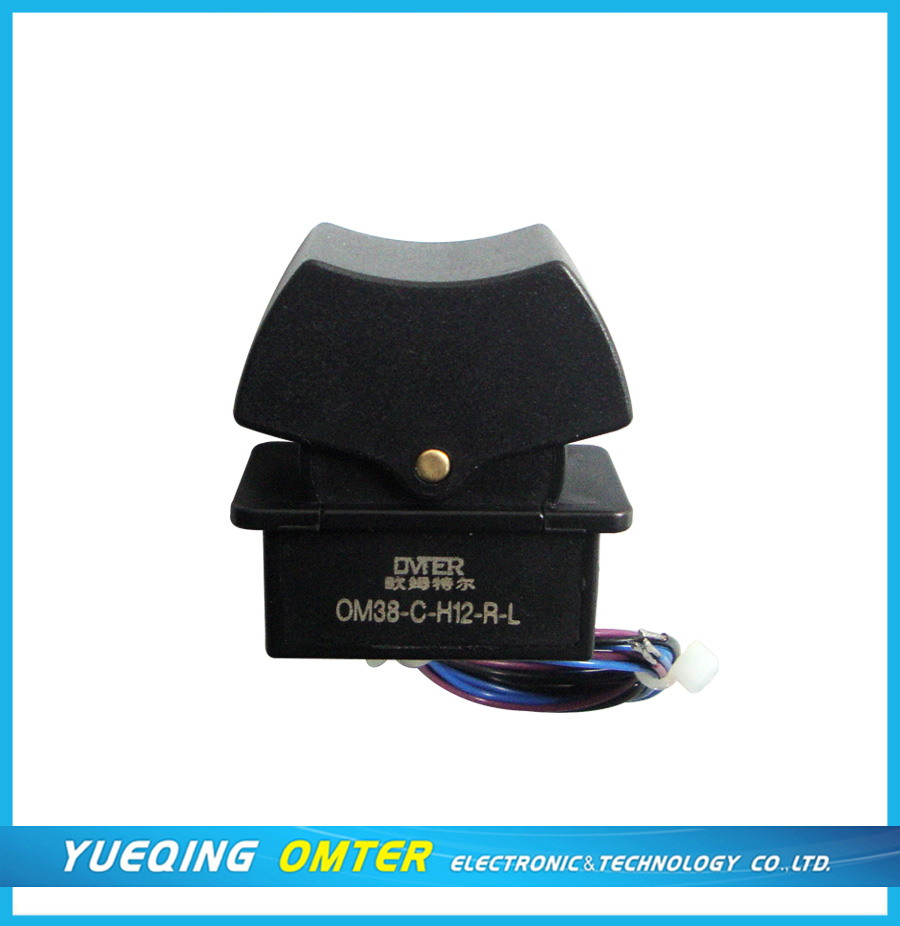

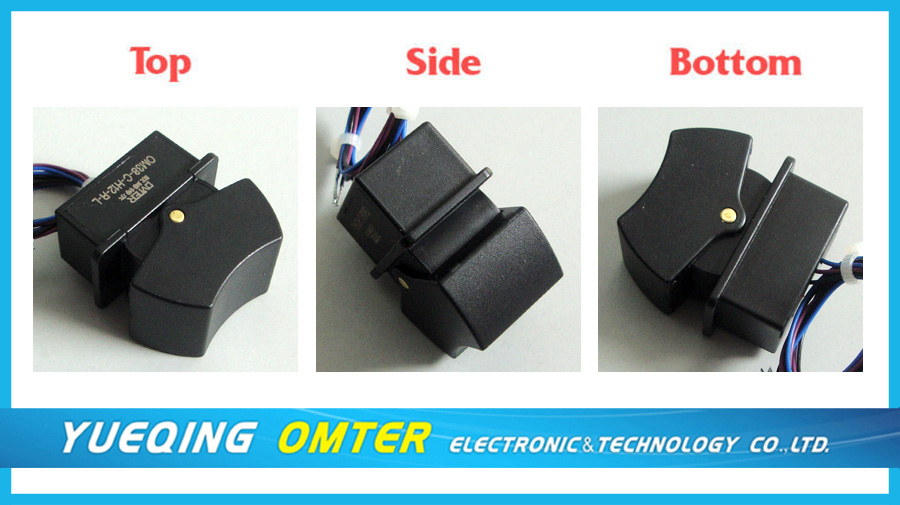

OM38-C-H12-R-L  Force joystick

Product characteristic:

Hall no contact detection

Application scope:

This series product mainly applies in a variety of  operating handle,output 0.5v~2.5v~4.5v voltage.

Electrical installment:

Line colorLine No.Function
Red15VDC
Black20V
Green3OUT
Product Selection:
OM35

Electrical parameter:
Input voltage:5VDC
Output:0.5V~2.5V~4.5V
Swing angle:±42 degree
service life:more than 100,000times
stroke within the operating force: 1.8N(max)
Operating temperature scope:- 40°C~+80°C
Protection rank:IP65



Send Message

*
* clear input

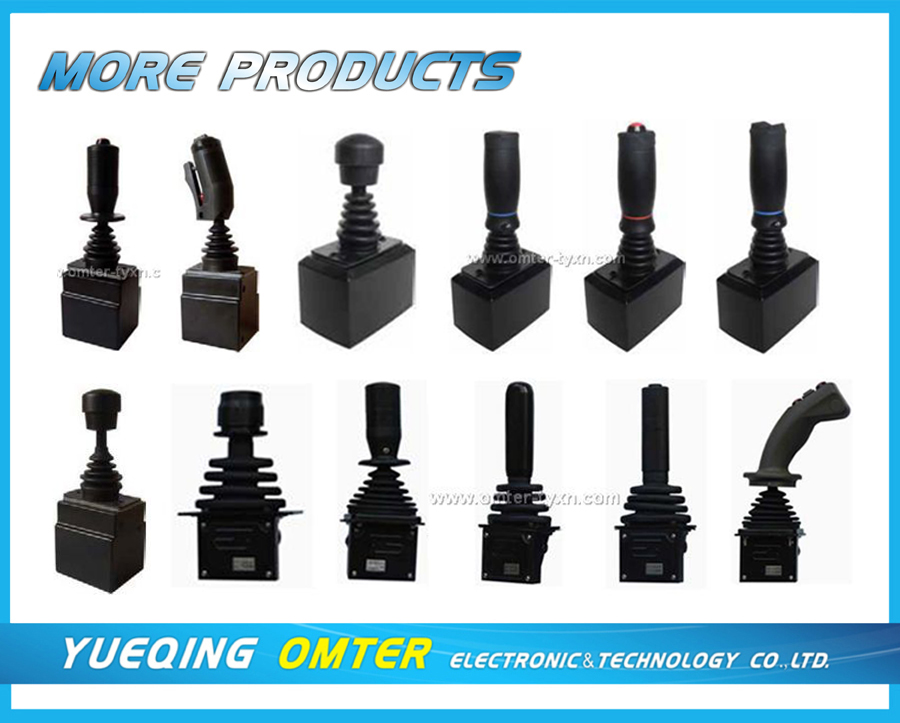

Related Products
