Model NO.
OM35
Quantity:

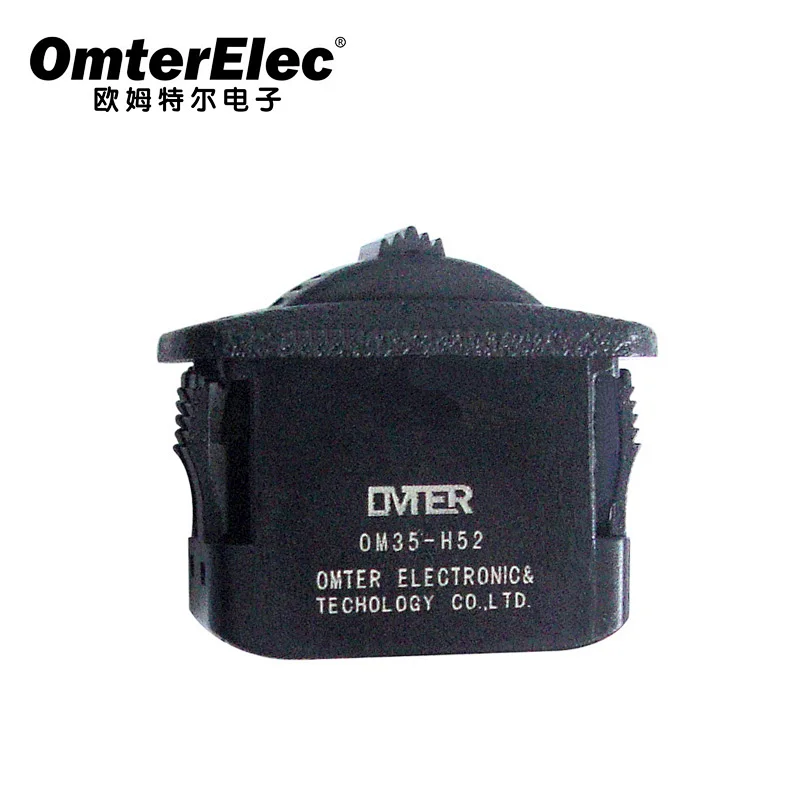

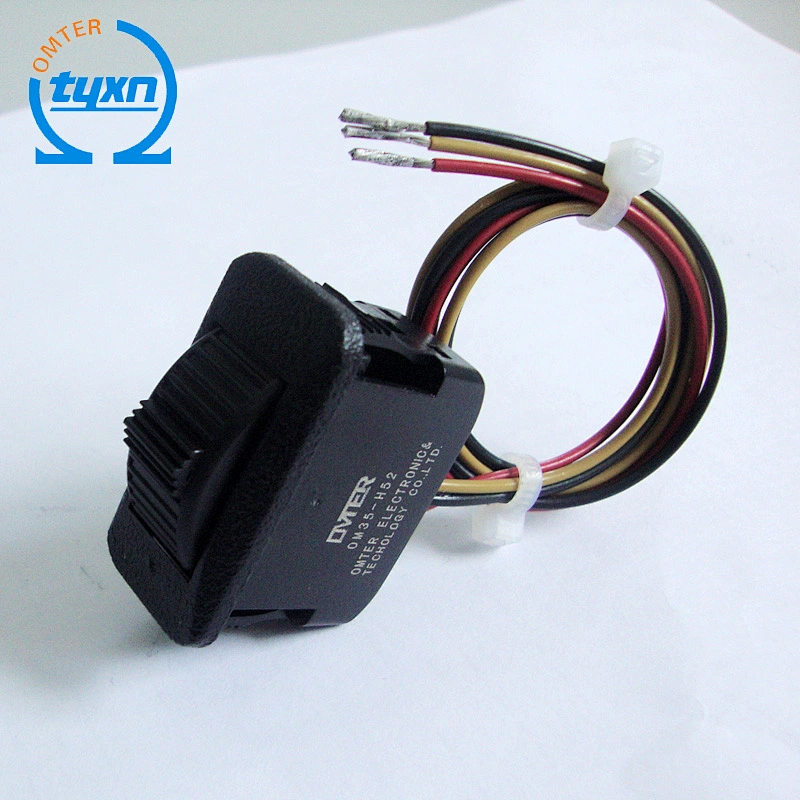

OM35 flight simulator x joystick

Product characteristic:

Hall no contact detection

Application scope:

This series product mainly applies in a variety of  operating handle,output 0.5v~2.5v~4.5v voltage.

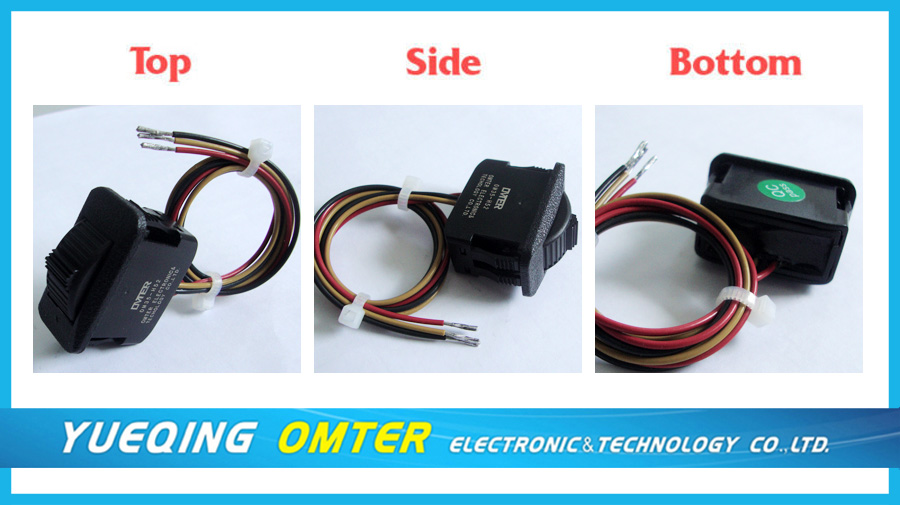

Electrical installment:

Line colorLine No.Function
Red15VDC
Black20V
Green3OUT
Product Selection:
OM35

Electrical parameter:
Input voltage:5VDC
Output:0.5V~2.5V~4.5V
Swing angle:±42 degree
service life:more than 100,000times
stroke within the operating force: 1.8N(max)
Operating temperature scope:- 40°C~+80°C
Protection rank:IP65
