Model NO.

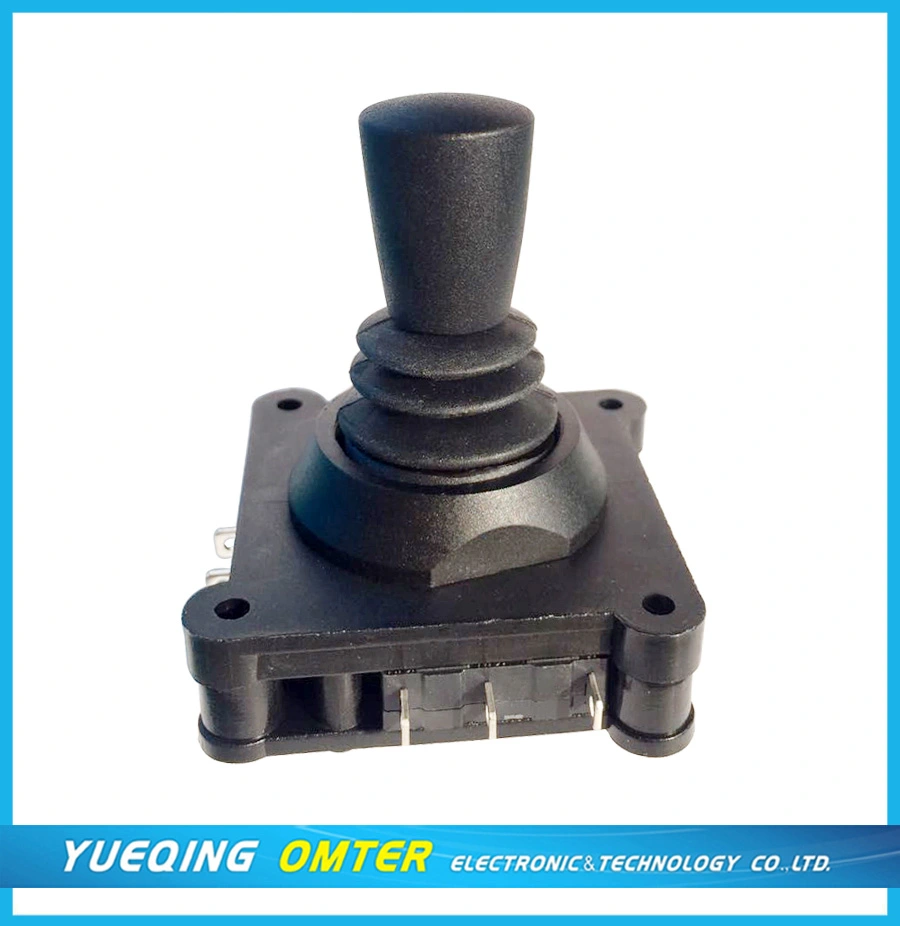

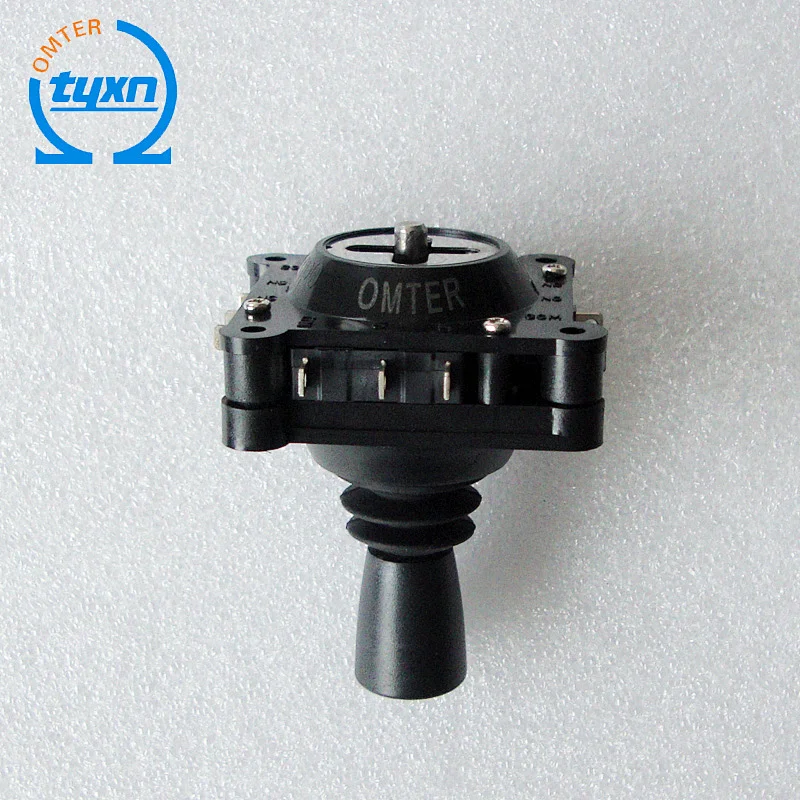

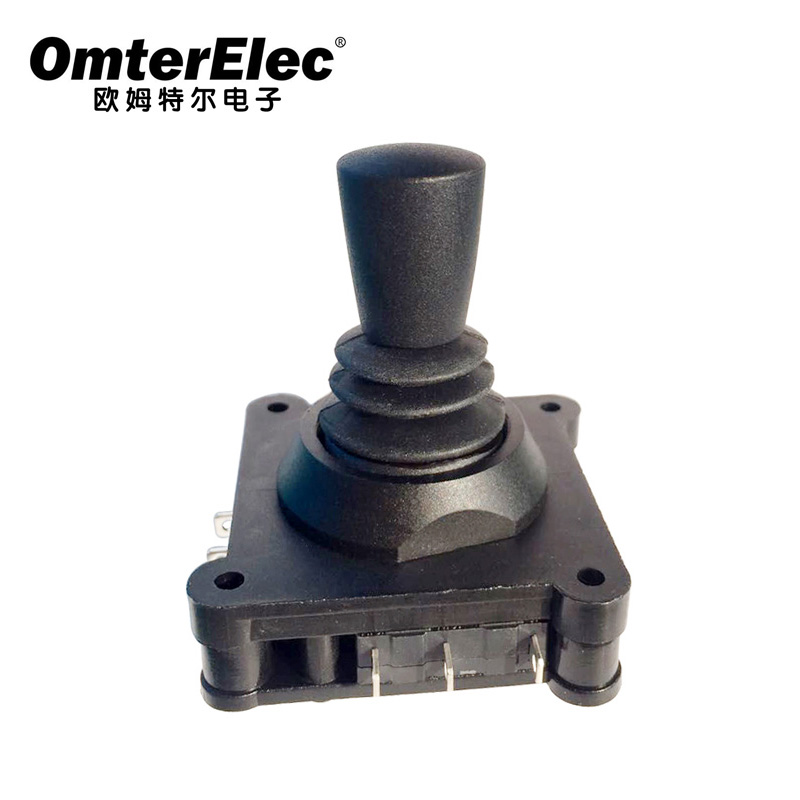

CV4A-XI-04R2G Fingertip Limit Switch Joystick

OMTER -Joystick, Potentiometer ,Knob, Sensor,Switch ,Slip ring

Product Description

switch controller joystick broken CV4A-YQ-05R2G-BM

S CV   4A—Y Q- 0   4   R2   G — B   M —R   0000
1 2     3     5   6   7   8   9     10   11     12             13
1.S: Special for the Mechanical specification
2.CV: Switch joystick with low price
3.4 is the rough size of the buttom, the unit is CM
4.X: 1-axis adjustment type         Y: 2-axis adjustment type
5.X: just can be“+”direction on X and Y axis

Q:360 degree square operation (standard type)

 I: just can be “I” operation on Y axis

6.Potentiometer quantity       0……without the potentiometer
7.Switch quantity     2……2 Switches     4……4 Switches         5……5 Switches
8.Spring Return Installment

R1: 1-axis with spring return (X axis or Y axis)

R2: 2-axis with spring return(X axis and Y axis)

9.ComponentsG: within the dust-proof rubber cover
10.Handle with button switch,the color can chooseB:Black   Y:Yellow   G:Green   R:Red     O:Orange   U:Blue
11.The type of the button switchM:triggering type   L: converted type
12.The handle can be within the lamp and color can be chooseW:white Y:yellow R:red O:orange G:green U:blue
13.For clients’ special requirement.

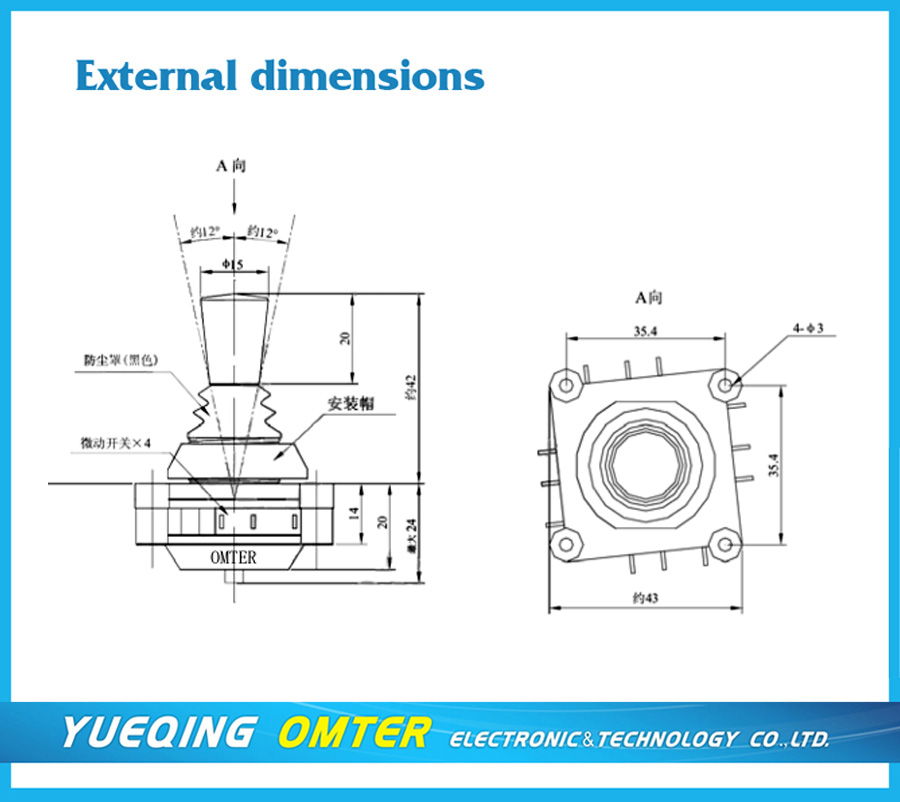

Mechanical character:
Control range of the joystickX. Y two axis: Starting from the central location approx ±12°
Operating pressure:with spring return device
X.Y axis :approx 1N ~1.2N (l00gf~120gf)
Operating temperature range:-20°C~+65°C
Vibration:10~55Hz 98m/S2
Protection class:IP65 (above the mounting panel)
Life expectancy:approximately 200,000 times
Quality:about 40g
Electrical function:
Handle button switch contact capacity:50VDC/0. 1A
Micro Switch contact capacity:250VAC/5A
Light emitting diode (LED) rating:2VDC, 20mA
Optional special specifications:
Special mechanical structure; special handle; special rod length; special spring return force; special dust cover

 ultra-compact switch joysticks CV4A-YQ-05R2G-BM
