Model NO.
M15
Quantity:

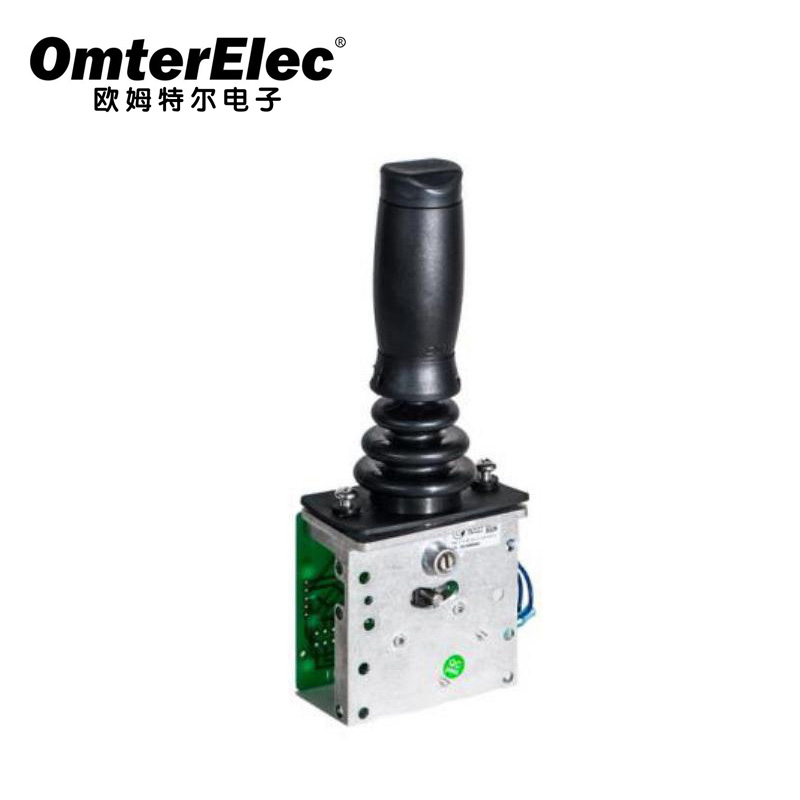

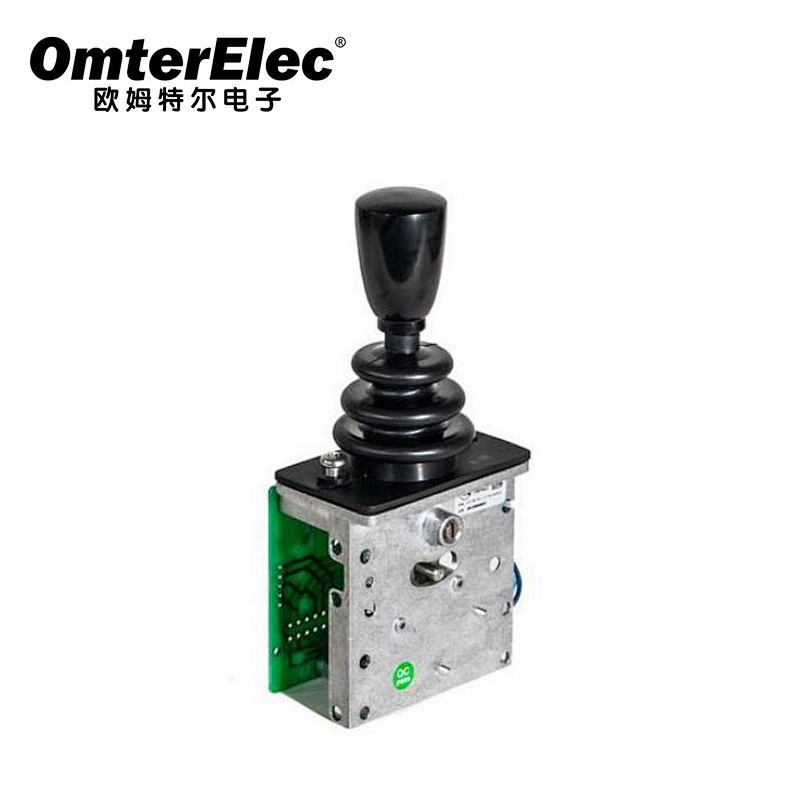

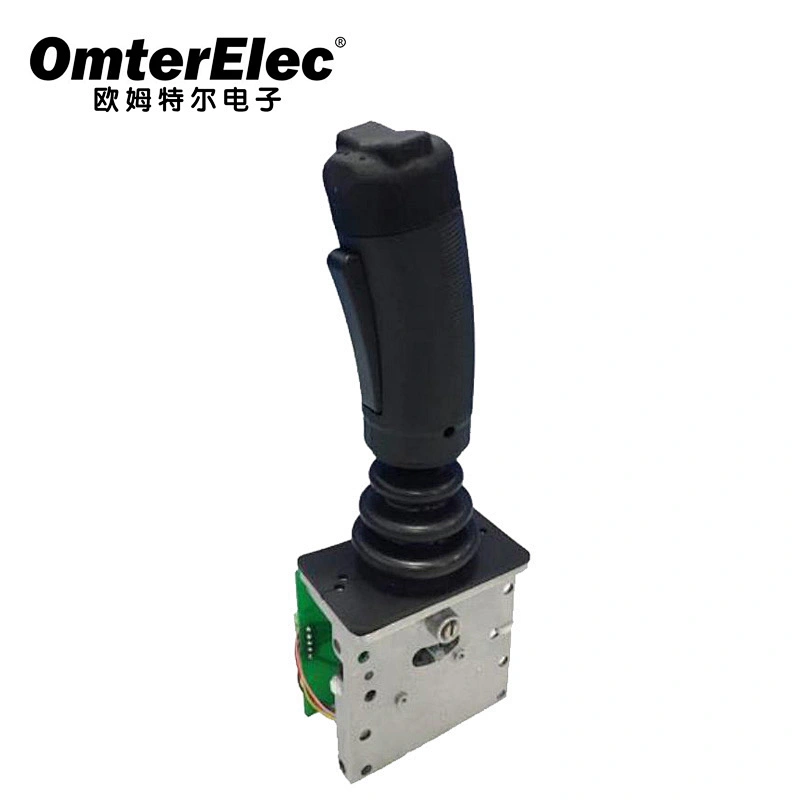

M15 excavator simulator pc joystick
Product characteristic:

Grip type single shaft front and rear direction operation, spring return
Rugged handle for use in harsh environments
Angle detection unit is a long-life conductive plastic potentiometer

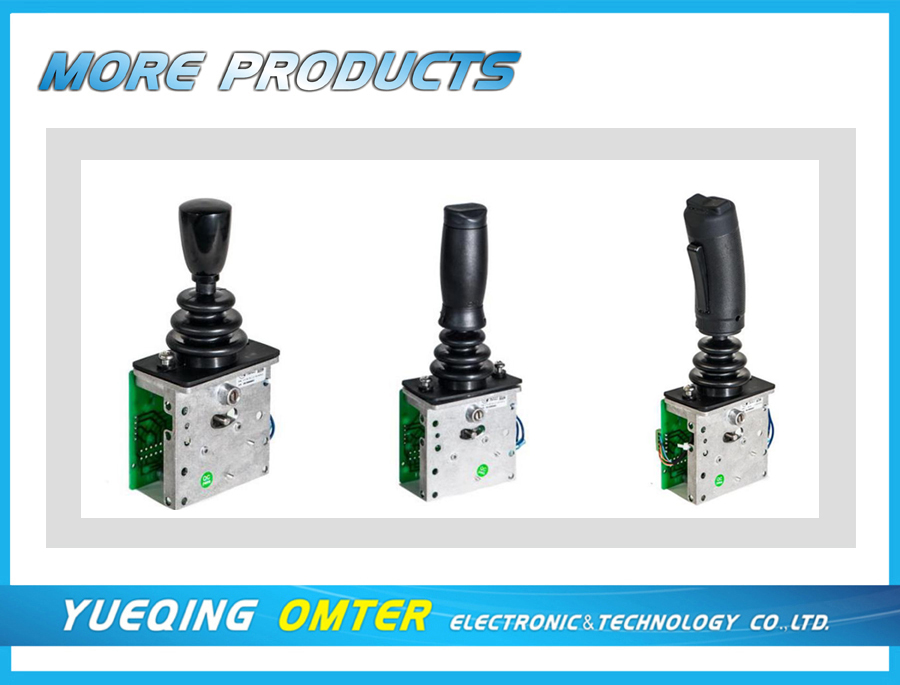

Can be configured with a variety of different upper handles
Up to 3 2A@30Vdc microswitches can be installed

Application scope:

The proportional valve can be driven to realize electro-hydraulic control.
Can be applied to various engineering vehicle models, aerial work machinery, road machinery, pile machinery, etc.

Product Selection:
M15 - ooo
  1.           2.
Sub-item selection instructions:
1. RCSingle axis type , the spring automatic reset to the center position.
2.Output signal

P11= potentiometer type 10%-90%, output voltage

P12= potentiometer type 0%-100%, output voltage

Micro Switch:

 S0= no micreo switch

S#= 1,2,3

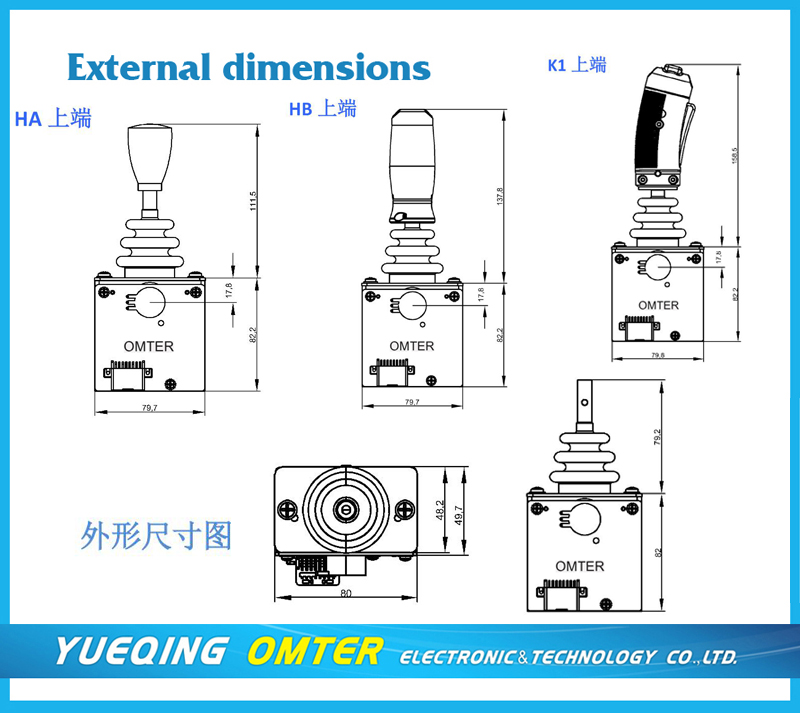

HB:HB= HB top port, no top button switch
HBS:HBS=HBS top port, Has top button switch
HBR:HBR= has top rocker switch
K1NR:K1NR=K1 top port, A pair of rocker switches, no safety switch
K1DR:K1DR=K1 top port, A pair of rocker switches, one safety switch
Wire out way:
L:directly out, length 50cm
C:16-pin AMP connector outlet with male cable, line length 50cm

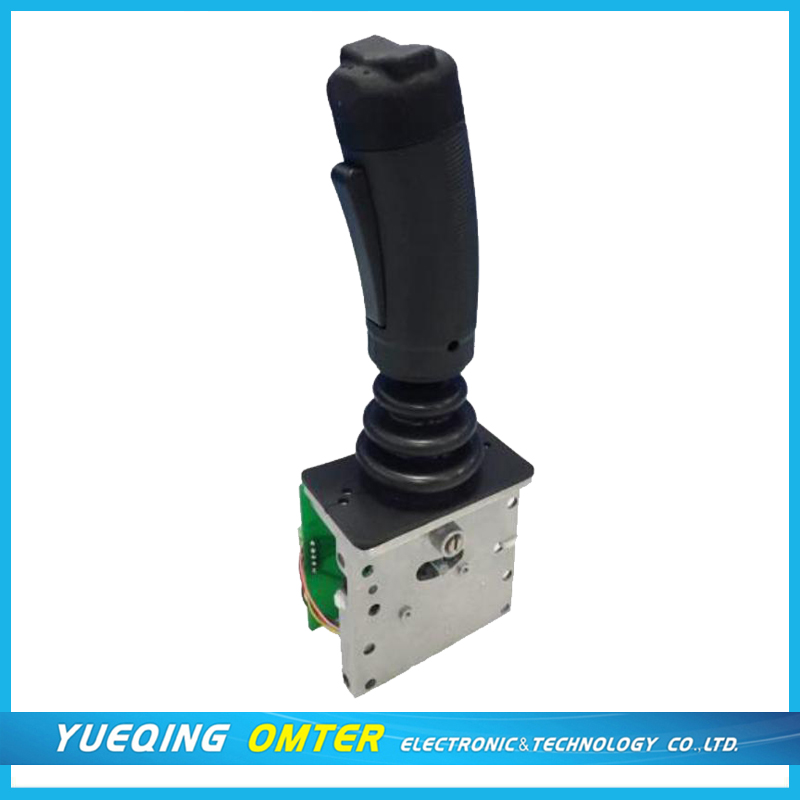

Detailed picture:
