Spring automatic reset. Three axis with button arbitrary operation.
Output voltage range can be selected according to the requirement,could choose RS232 or USB connector output.
The products are mainly used in electric wheelchairs, video control equipment.
OM900 - ooo
Sub-item selection instructions:
1.Product series number

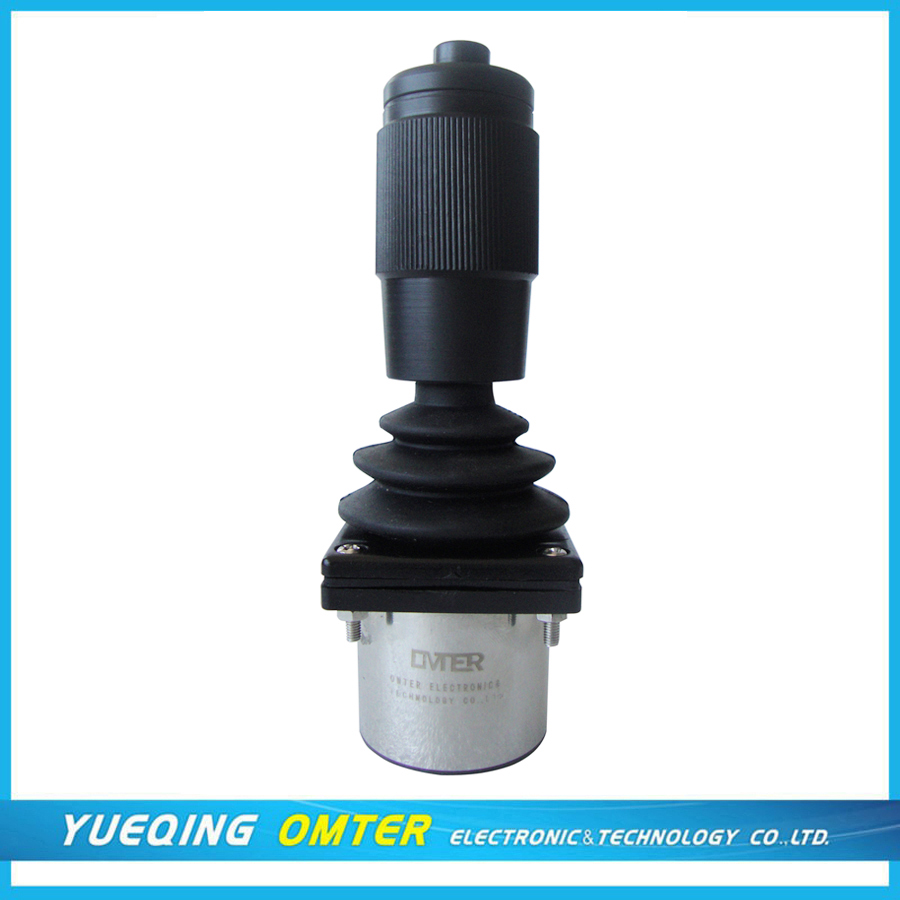

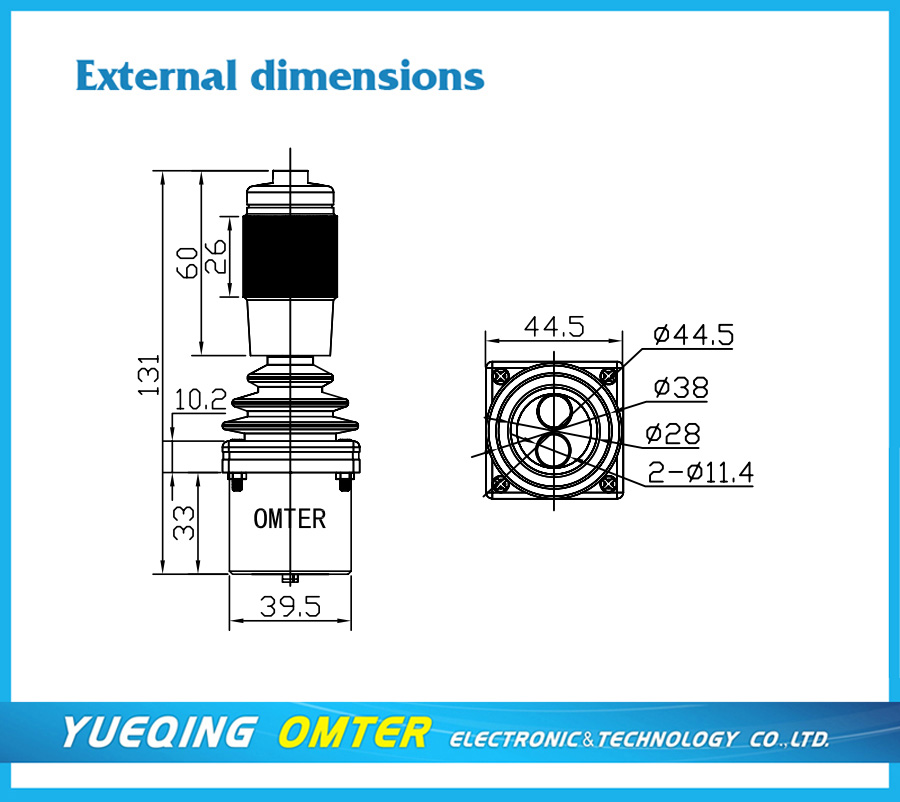

OM900 series industry handle, three axis Hall type, with button, spring automatic reset,without direction switch, the installment pitch of hole size is 36mm*36mm.Mainly used in the wheelchair control ,video control and engineering vehicle control
H51= Hall type, the input voltage 10% ~ 5Vdc, 50% ~ 90%Vdc voltage output
H52= Hall type, the input voltage 0% ~ 5Vdc, 50% ~ 100%Vdc voltage output
