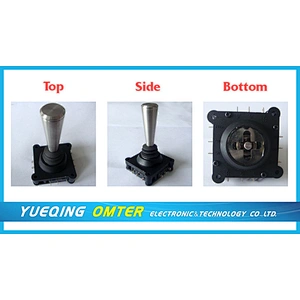

entirely custom joystick

CV4B-YI-04R2G entirely custom joystick

OMTER -Joystick, Potentiometer ,Knob, Sensor,Switch ,Slip ring

Product Description

switch controller joystick broken CV4A-YQ-05R2G-BM

S CV   4A—Y Q- 0   4   R2   G — B   M —R   0000
1 2     3     5   6   7   8   9     10   11     12             13
1.S: Special for the Mechanical specification
2.CV: Switch joystick with low price
3.4 is the rough size of the buttom, the unit is CM
4.X: 1-axis adjustment type         Y: 2-axis adjustment type
5.X: just can be“+”direction on X and Y axis	Q:360 degree square operation (standard type)    I: just can be “I” operation on Y axis
6.Potentiometer quantity	0……without the potentiometer
7.Switch quantity	2……2 Switches     4……4 Switches         5……5 Switches
8.Spring Return Installment	R1: 1-axis with spring return (X axis or Y axis)   R2: 2-axis with spring return(X axis and Y axis)
9.Components	G: within the dust-proof rubber cover
10.Handle with button switch,the color can choose	B:Black   Y:Yellow   G:Green   R:Red     O:Orange   U:Blue
11.The type of the button switch	M:triggering type   L: converted type
12.The handle can be within the lamp and color can be choose	W:white Y:yellow R:red O:orange G:green U:blue
13.For clients’ special requirement.

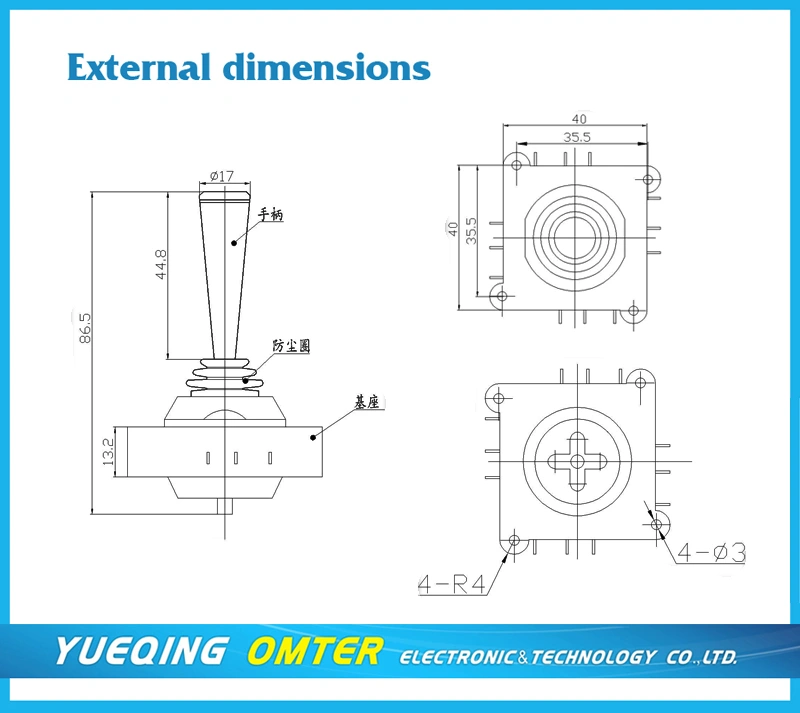

Mechanical character:Control range of the joystickX. Y two axis: Starting from the central location approx ±12°Operating pressure:with spring return deviceX.Y axis :approx 1N ~1.2N (l00gf~120gf)Operating temperature range:-20°C~+65°CVibration:10~55Hz 98m/S2Impact:294m/S2Protection class:IP65 (above the mounting panel)Life expectancy:approximately 200,000 timesQuality:about 40gElectrical function:Handle button switch contact capacity:50VDC/0. 1AMicro Switch contact capacity:250VAC/5ALight emitting diode (LED) rating:2VDC, 20mAOptional special specifications:Special mechanical structure; special handle; special rod length; special spring return force; special dust cover
