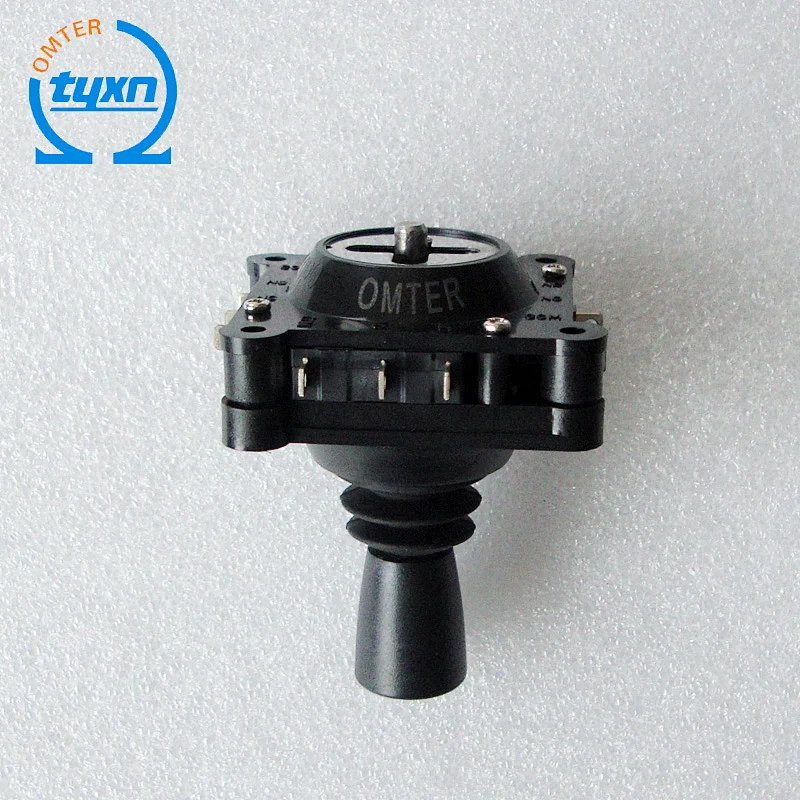

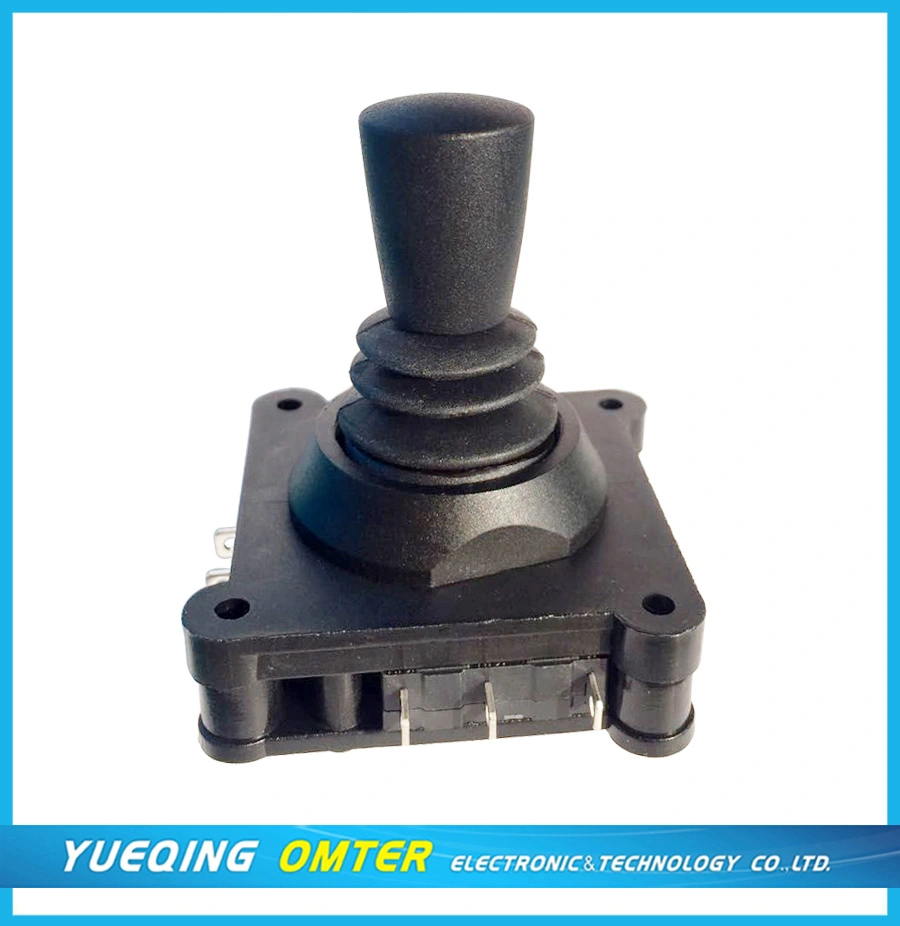

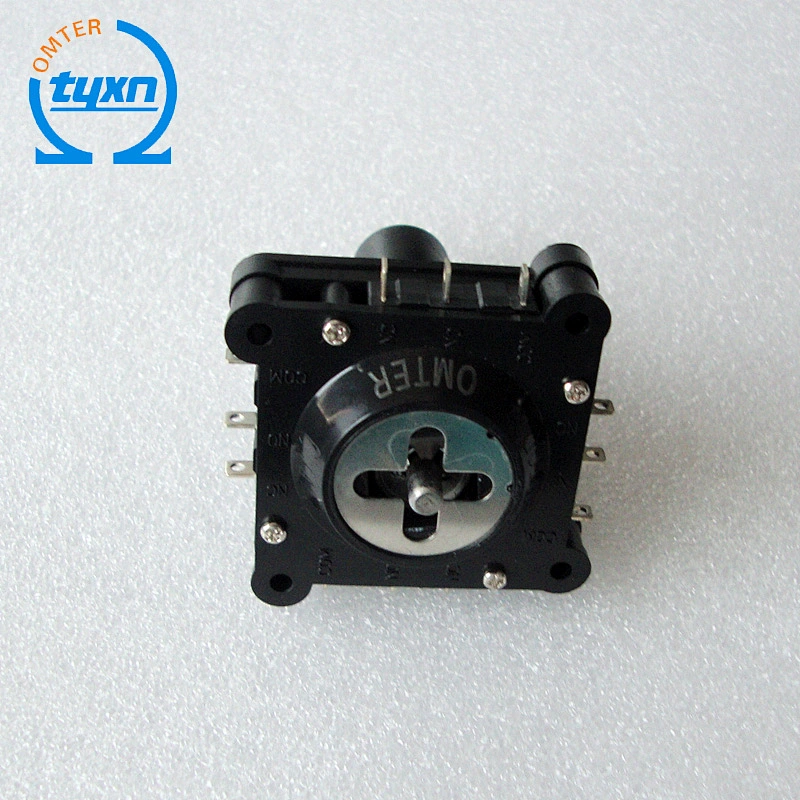

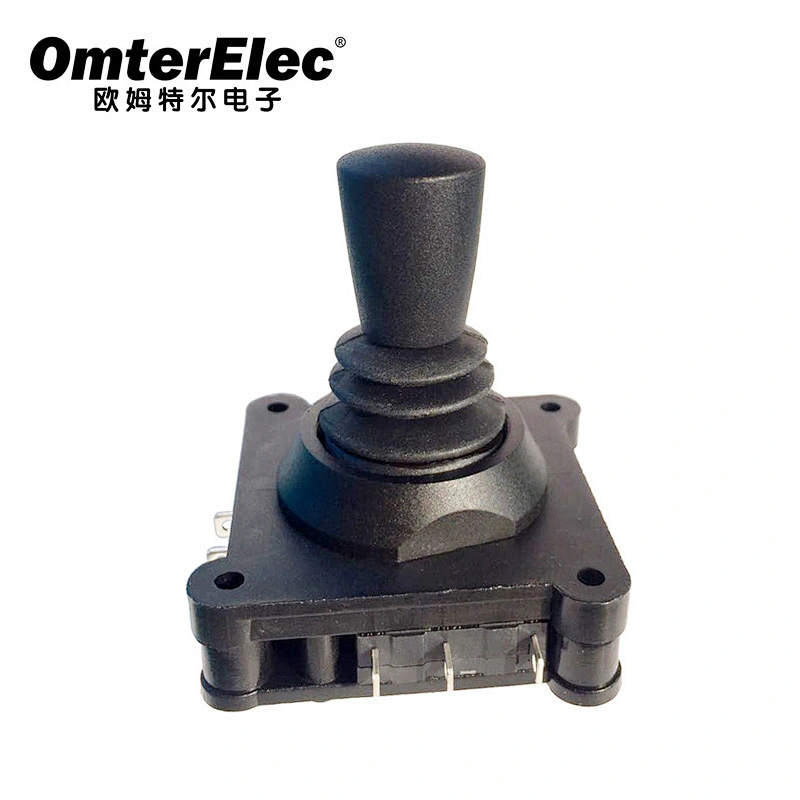

CV4A-YQ-04R2G Electronic Joystick Handles
OMTER -Joystick, Potentiometer ,Knob, Sensor,Switch ,Slip ring
Product Description| S CV 4A—Y Q- 0 4 R2 G — B M —R 0000 | |
| 1 2 3 5 6 7 8 9 10 11 12 13 | |
| 1.S: Special for the Mechanical specification | |
| 2.CV: Switch joystick with low price | |
| 3.4 is the rough size of the buttom, the unit is CM | |
| 4.X: 1-axis adjustment type Y: 2-axis adjustment type | |
| 5.X: just can be“+”direction on X and Y axis | Q:360 degree square operation (standard type) I: just can be “I” operation on Y axis |
| 6.Potentiometer quantity | 0……without the potentiometer |
| 7.Switch quantity | 2……2 Switches 4……4 Switches 5……5 Switches |
| 8.Spring Return Installment | R1: 1-axis with spring return (X axis or Y axis) R2: 2-axis with spring return(X axis and Y axis) |
| 9.Components | G: within the dust-proof rubber cover |
| 10.Handle with button switch,the color can choose | B:Black Y:Yellow G:Green R:Red O:Orange U:Blue |
| 11.The type of the button switch | M:triggering type L: converted type |
| 12.The handle can be within the lamp and color can be choose | W:white Y:yellow R:red O:orange G:green U:blue |
| 13.For clients’ special requirement. | |
