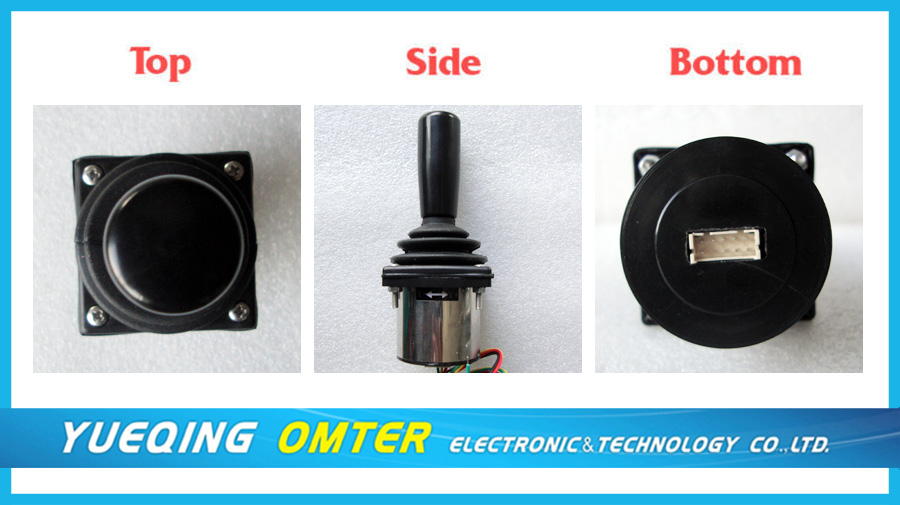

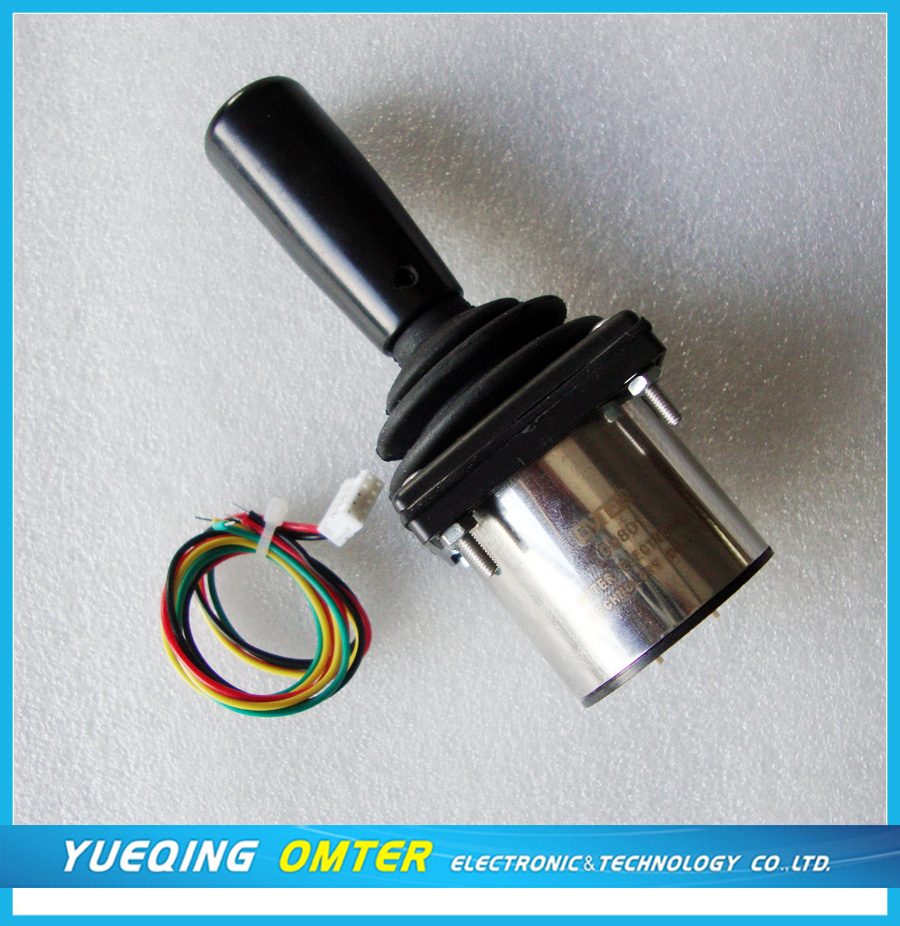

OM801-H52 electric wheelchair with joystick
OM801-H52 joysticks for wheelchair
Product characteristic:
Spring automatic reset.
Double axis in any direction operation. Button could select.
Could according to requirement select the output voltage range,Could choose RS232 or the USB connection output.
Application scope:
This series product mainly applies in the electrically operated wheelchair,the video frequency control device.
Electrical installment:
| Line color | Line No. | Function |
| Red | 1 | +5VDC |
| Black | 2 | 0V |
| Yellow | 3 | X-OUT |
| Green | 4 | Y-OUT |
| Product Selection: | |
| OM800 - ooo | |
| 1. 2. | |
| Sub-item selection instructions: | |

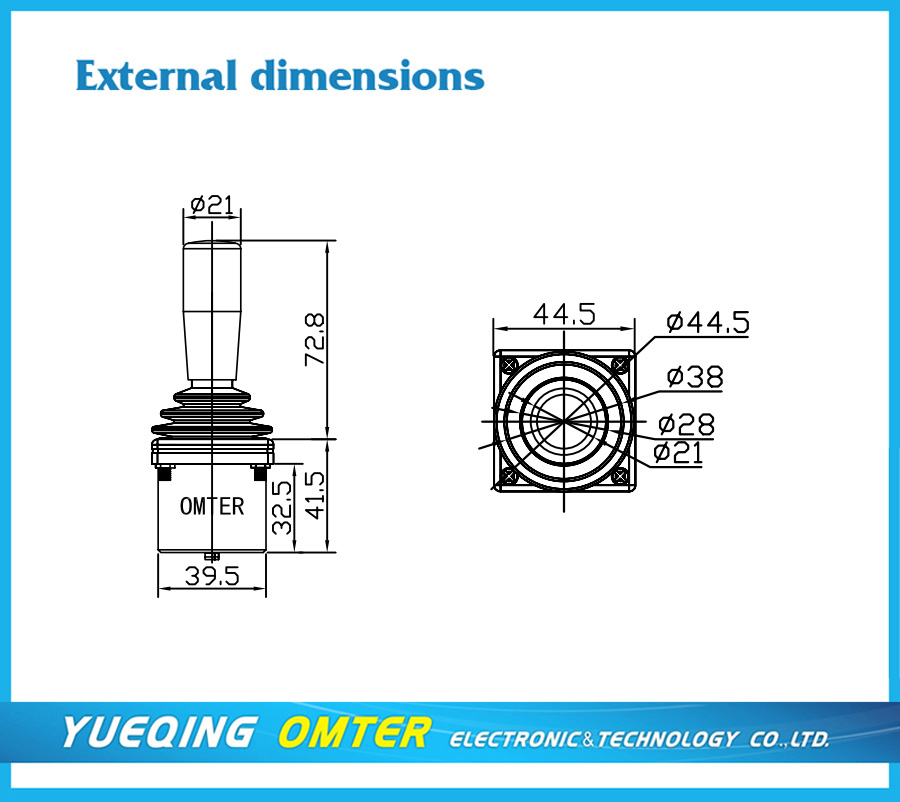

| 1. Product series number | OM801 double axis Hall type , the spring automatic reset, without direction switch,installment pitch of holes size 36mm*36mm Mainly uses in the wheelchair controls the video frequency control and the machine shop truck control |
| 2.Output signal | H51= Hall type DC5V power source, output voltage 0.5V~2.5V~4.5V H52= Hall type DC5V power source, output voltage 0V ~2.5V~5.0V The RS232=RS232 serial digital signal output The USB=USB connection digital signal output |
Technical parameter:
| Mechanical parameter: | |
| Swing angle: | ±25 |
| Service life: | Is bigger than 5,000,000 times |
| Operation strength: | 15N (biggest) |
| Limit strength: | 50N |
| Weight: | 120g |
| Electrical parameter: | |
| Total current: | <20mA |
| Linearity tolerance: | ± 5% |
| Power supply voltage: | DC5V±10% |
| Load resistance: | >10KΩ |
| Environment parameter: | |
| Operating temperature scope: | - 40°C~+80°C |
| Protection rank: | IP65 |
