Model NO.
OM901-H52
Quantity:

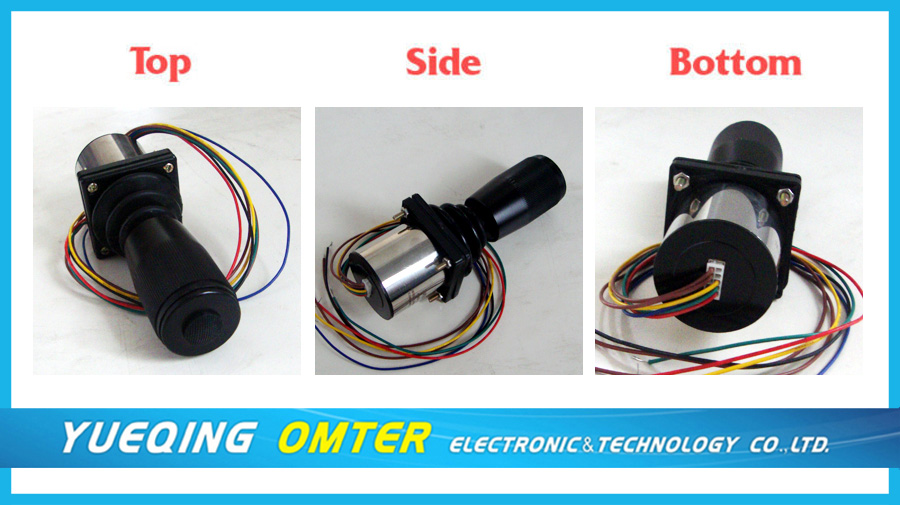

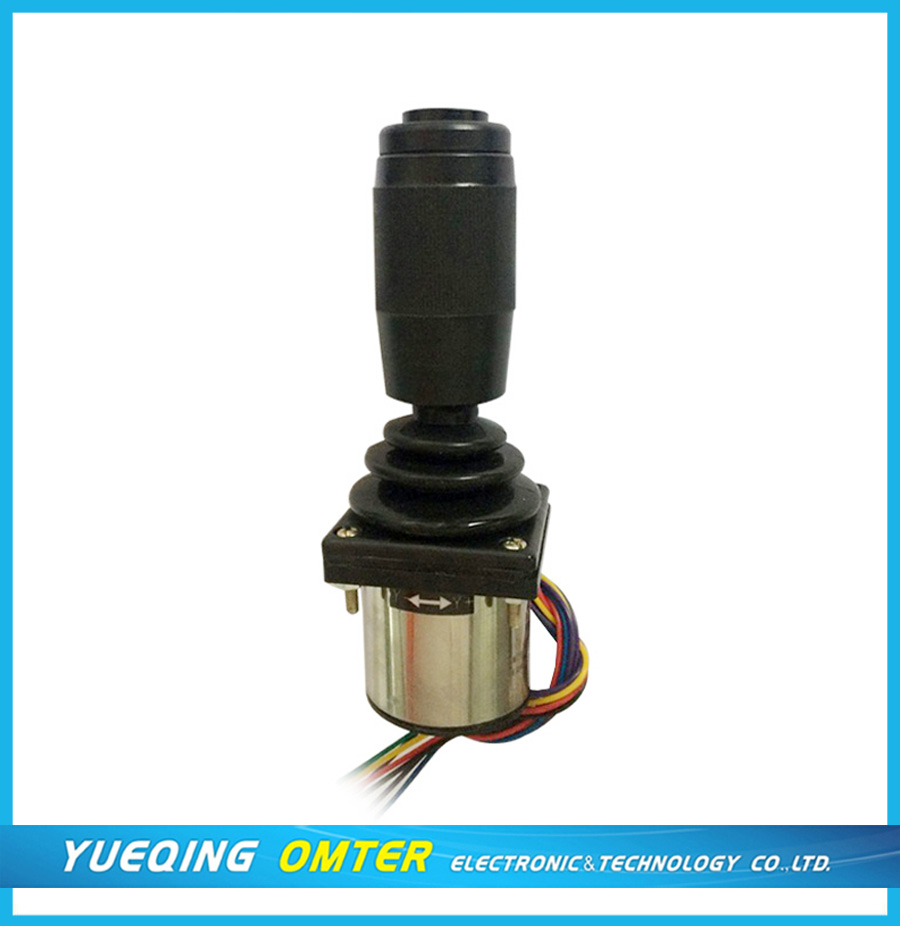

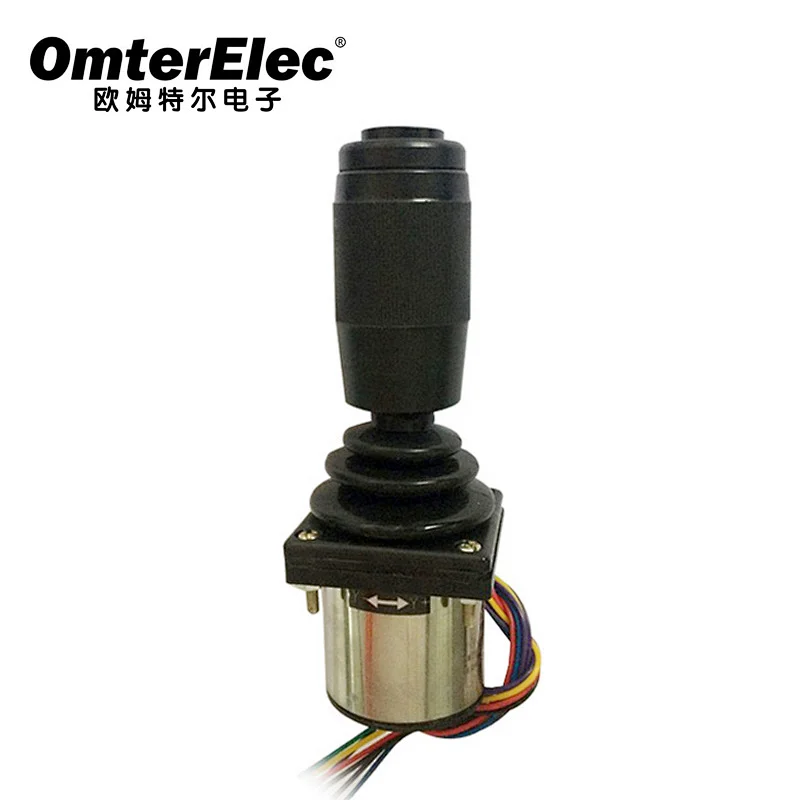

OM901-H52  electric wheelchair joystick

Product characteristic:

Spring automatic reset. Three axis with button arbitrary operation.

Output voltage range can be selected according to the requirement,could choose RS232 or USB connector output.

Application scope:

The products are mainly used in electric wheelchairs, video control equipment.

Product selection:
OM901 - ooo
       1.       2.
Sub-item selection instructions:

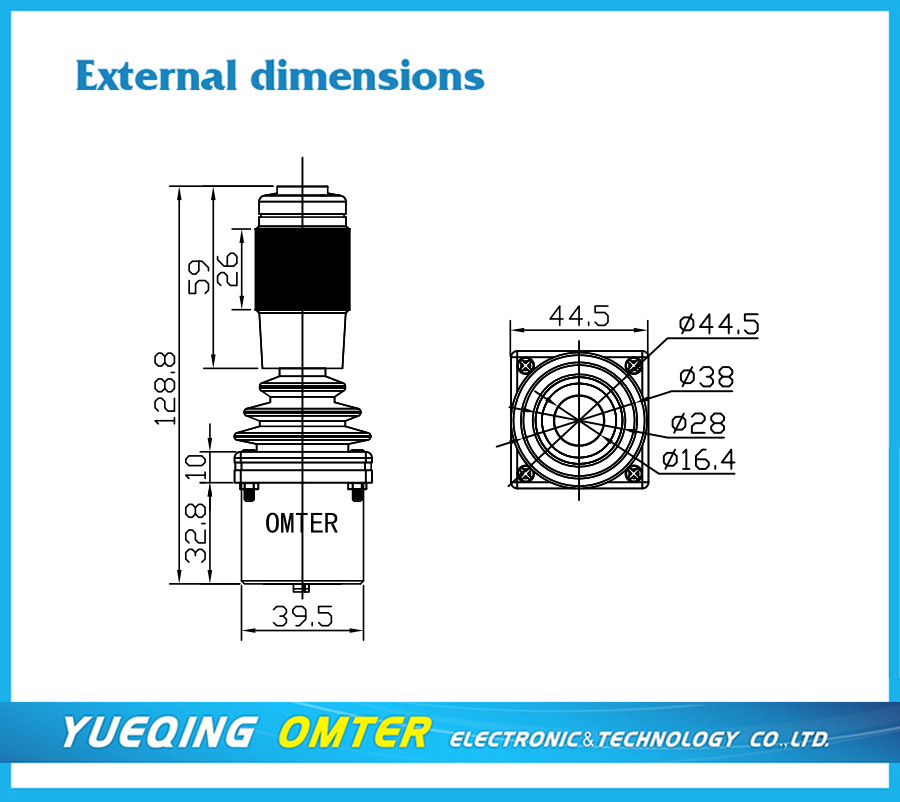

1.Product series numberOM901 series industry handle, three axis Hall type, with button, spring automatic reset,without direction switch, the installment pitch of hole size is 36mm*36mm.Mainly used in the wheelchair control ,video control and engineering vehicle control
2.Output signal

H51= Hall type, the input voltage 10% ~ 5Vdc, 50% ~ 90%Vdc voltage output

H52= Hall type, the input voltage 0% ~ 5Vdc, 50% ~ 100%Vdc voltage output

RS232=RS232 serial digital signal output

USB=USB connection digital signal output

Technical parameter:

Mechanical parameter:
Swing angle:± 25°
Service life:Is bigger than 10,000,000 times
Operation:15N (maximum)
Limit strength:50N
Weight:125g
Electrical parameter:
Power supply voltage:5Vdc
The total current:<20mA
Linear tolerance:± 5%
Power supply voltage:DC5V ± 10%
Load resistance:>10K Ω
Environmental parameter:
Operation temperature range:-40 °C ~ +80 °C
Protection grade:IP65
