Model NO.

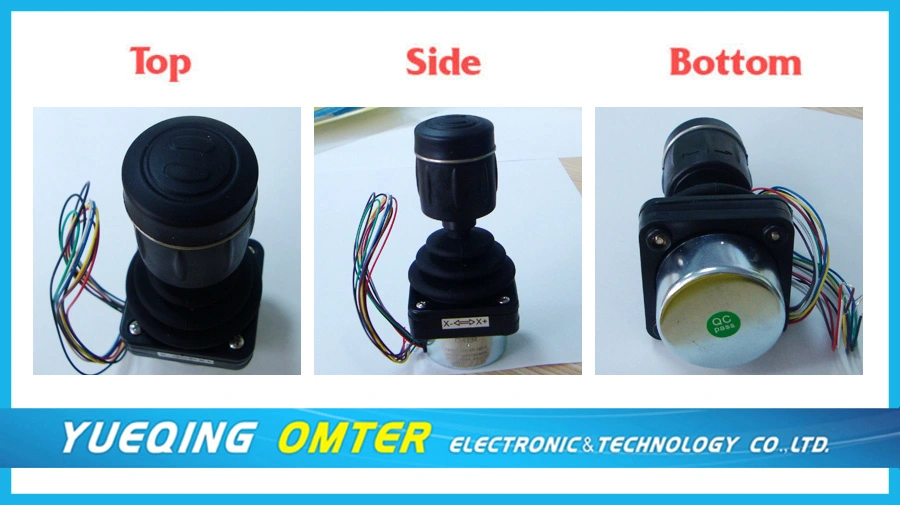

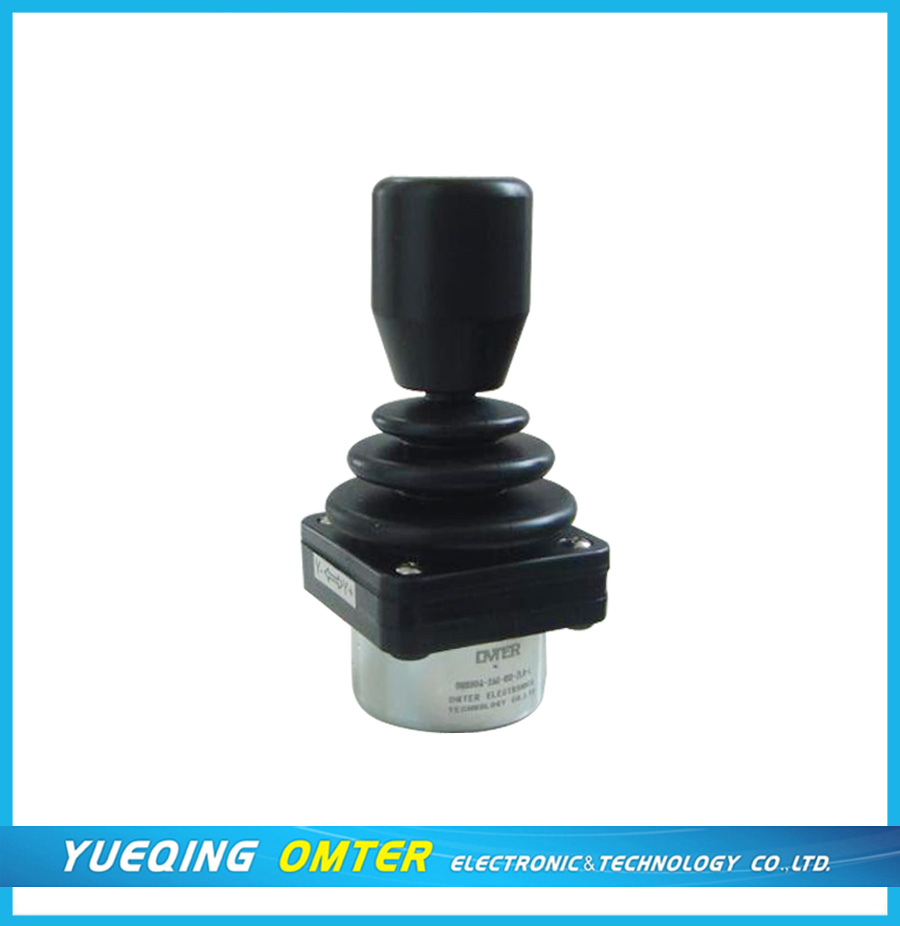

OM800A-2AC-H11-ZG2-L electric wheelchair controller

Product characteristic:

Spring automatic reset.

 Double axis in any direction operation. Button could select.

Could according to requirement select the output voltage range,Could choose RS232 or the USB connection output.

Application scope:

This series product mainly applies in the electrically operated wheelchair,the video frequency control device.

Electrical installment:

Line colorLine No.Function
Product Selection:
OM800 - ooo
  1.           2.
Sub-item selection instructions:
1. Product series numberOM800A double axis Hall type , the spring automatic reset, without direction switch,installment pitch of holes size 36mm*36mm Mainly uses in the wheelchair controls the video frequency control and the machine shop truck control
2.Output signal

H51= Hall type DC5V power source, output voltage 0.5V~2.5V~4.5V

H52= Hall type DC5V power source, output voltage 0V ~2.5V~5.0V

The RS232=RS232 serial digital signal output

The USB=USB connection digital signal output

 Technical parameter:

Mechanical parameter:
Swing angle:±25
Service life:Is bigger than 5,000,000 times
Operation strength:15N (biggest)
Limit strength:50N
Electrical parameter:
Total current:<20mA
Linearity tolerance:± 5%
Power supply voltage:DC5V±10%
Load resistance:>10KΩ
Environment parameter:
Operating temperature scope:- 40°C~+80°C
Protection rank:IP65



1. Samples time: Need 7-10 days to preparing the samples after receiving the payment.

2. Samples payment term: T/T, PAYPAL, Western union

Quality Guarantee:

1.Strictly quality control  before leave factory

2. Quality guarantee  within one year


1.Low MOQ: 1PC

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good Quality: Strict quality control  and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)

Order Guide:

1. Inquiry-Professional quotation.
2. Confirm the price, lead time, packing requirement, payment term etc.
3. OMTER sales send the Proforma Invoice with OMTER seal.
4. Customer make the payment and send us Bank receipt.
5. Will inform client that we have got the payment, arrange the production & inform the estimated time.
6. After delivery will inform the tracking number and check the status for clients.
7.   Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .
