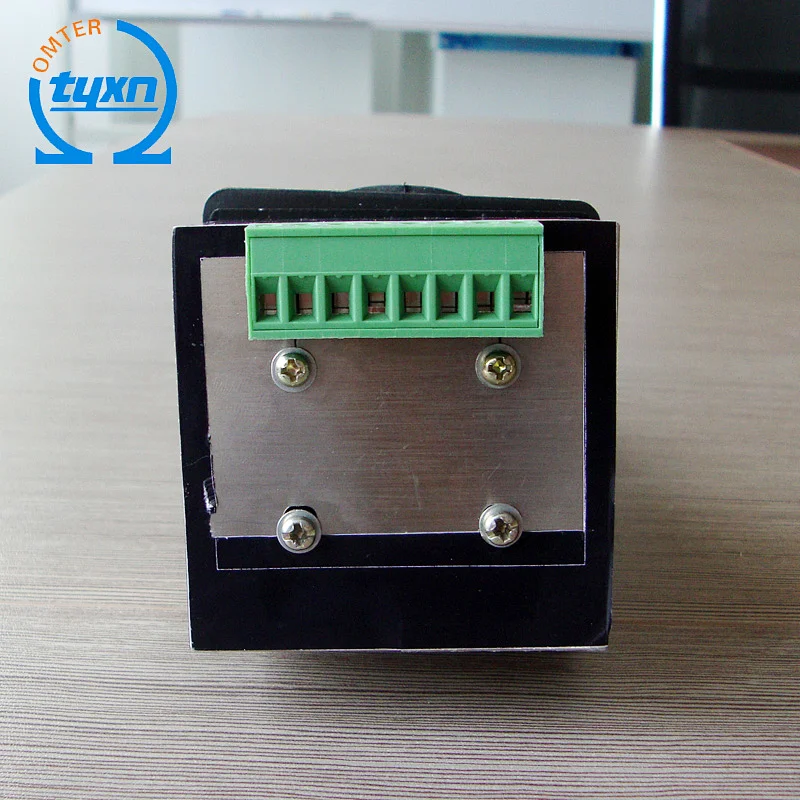

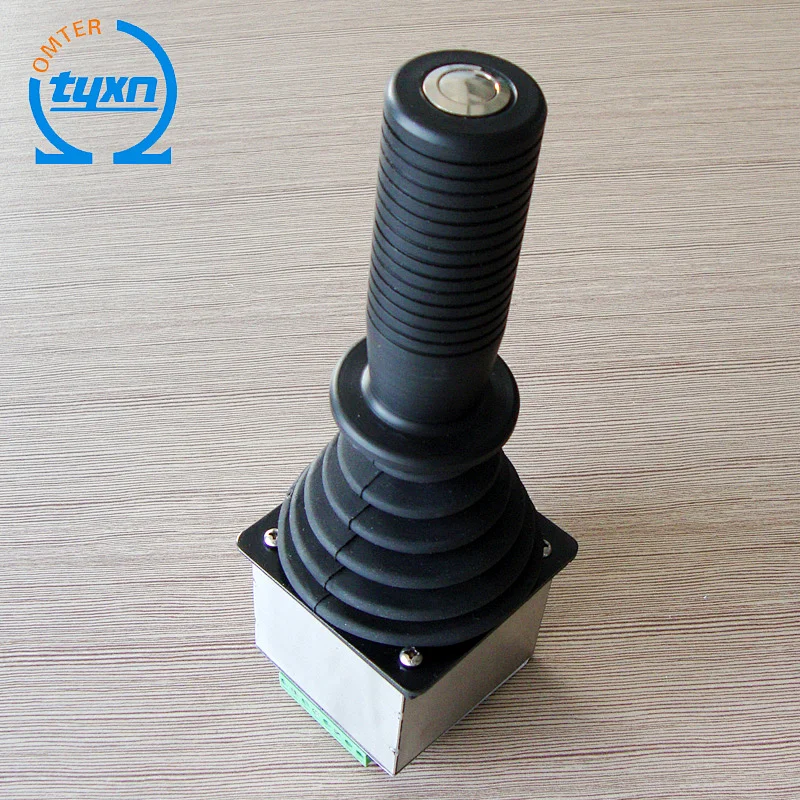

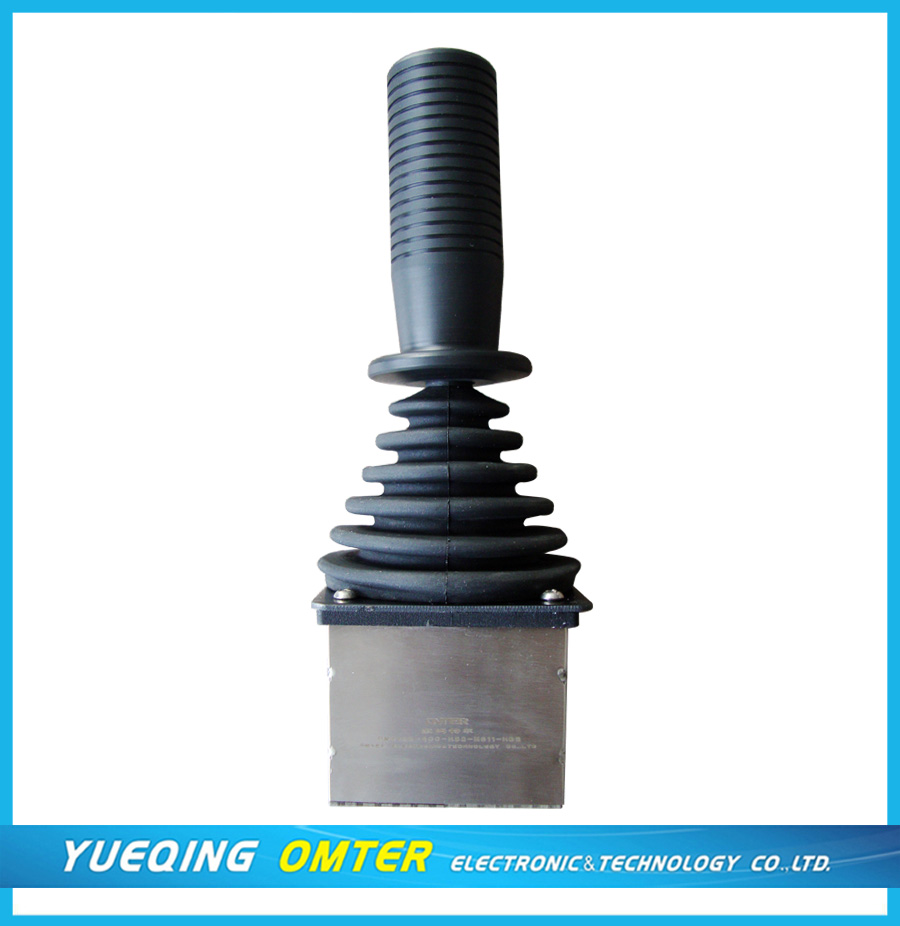

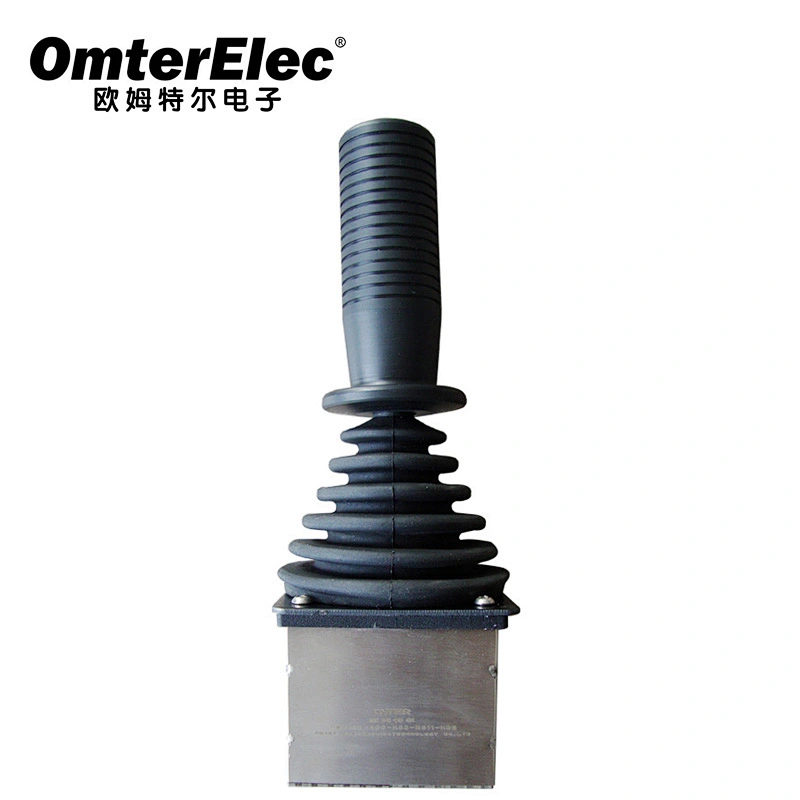

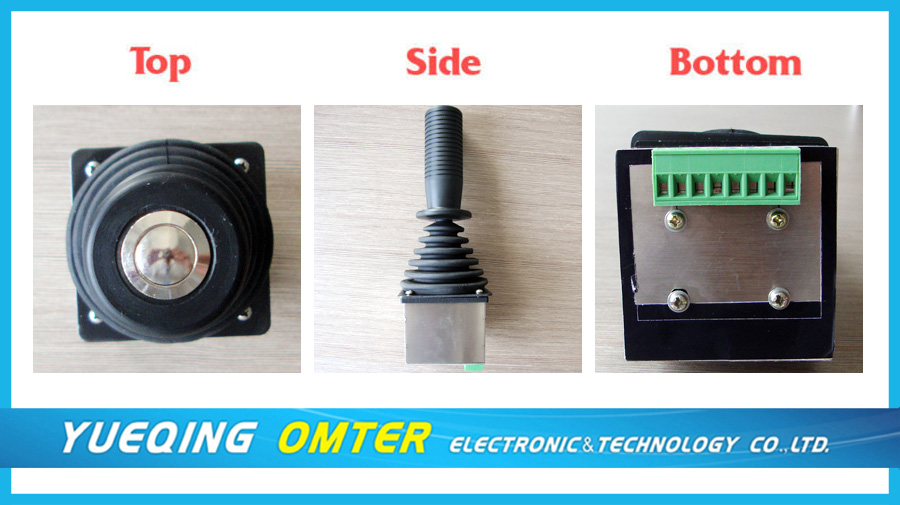

Product characteristic:
The friction localization or the spring automatic reset, the center position could selecting mechanism locking .
single axis front and back direction operation or single direction operation
Could choose the Hall non-contact angle detect or the potentiometer angle detect method.
.Could select and match the direction micro switch (switch maximum current 10A)
Could dispose many kinds of handle top body type.
Application scope:
This series product mainly applies in turns on lathe digs the drilling machine,the upper air fire engine,
the hoist crane, the shield machine, the coal mine elevator,the petroleum elevator.
| Product Selection: | |
| OM2100 - ooo | |
| 1. 2. | |
| Sub-item selection instructions: | |
| 1. Product series number | The OM2100 series industry handle, the single axis friction localization or the spring return, the installment pitch of holes size is 58mm Mainly applies in rotary drilling rig, the aerial fire truck, crane, the shield, coal hoist, oil-hoist |
| 2.Operating mode | FCF= friction localization, the center position with feel FEF= friction localization, the beginning (or end point) with feel FCL= friction localization, the center position machinery locking |
| Output signal: | P101= with 10KΩ center-tapped potentiometer 0~100% voltage output H51= Hall type DC5V input, 0.5V~2.5V~4.5V voltage output H52= Hall type DC5V input, 0V ~2.5V~5V voltage output H53= Hall type DC5V input,1.25V~2.5V~3.75V voltage output U11=DC12V input, - 10V~0V ~+10V voltage output U12=DC12V input, +10V ~0V ~+10V voltage output U13=DC12V input, - 5V~0V ~+5V voltage output U14=DC12V input, +5V ~0V ~+5V voltage output U15=DC12V input, 0~+10V voltage output NA= non-simulated signal output |
| Micro switch : | MS00= without micro switch MS21= with 10A beginning position micro switch MS22= with 10A front and back position micro switch |
The detailed information according to the datasheet choose.
Technical parameter:
| Mechanical parameter: | |
| Swing angle: | ±37.5 degree |
| Service life: | Is bigger than 5,000,000 times (potentiometer type), is bigger than 10,000,000 times (Hall type) |
| Operation strength: | 15N (biggest) |
| Limit strength: | 50N |
| Weight: | 500g(without top port) |
| Electrical parameter: | |
| Potentiometer type : | 10k ohm |
| Total resistance value: | 10Kohm |
| Precision: | 10% |
| Central angle: | +-3 degree |
| Environment parameter: | |
| Operating temperature scope: | - 20°C~+70°C |
| Protection rank: | IP65(above the mounting panel) |
