Model NO.
OM201B-M4
Quantity:

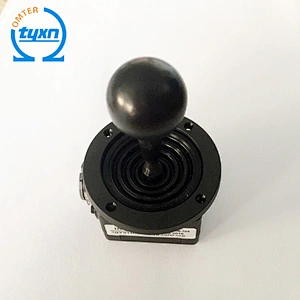

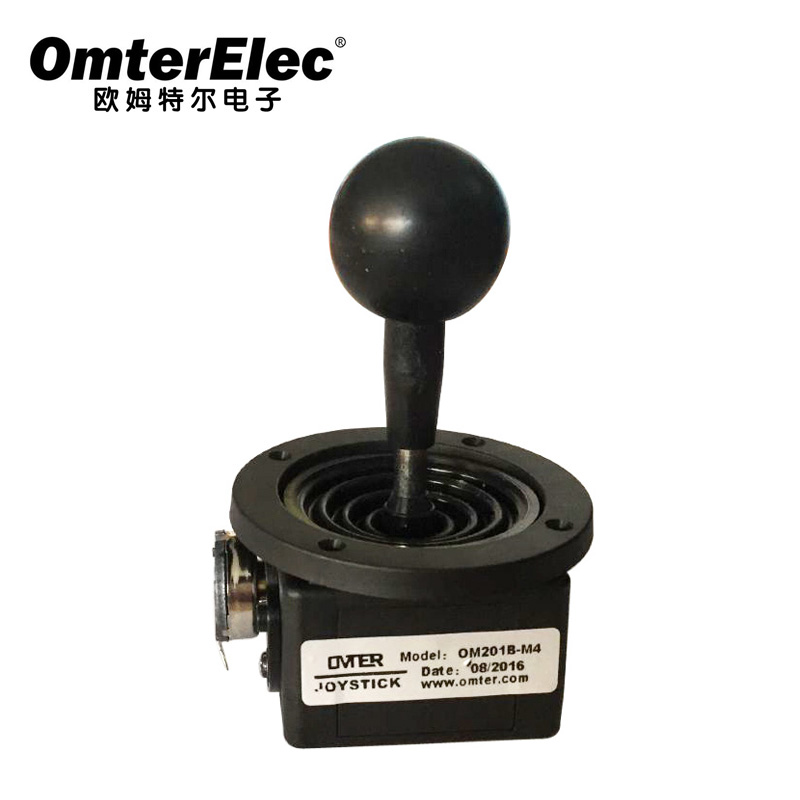

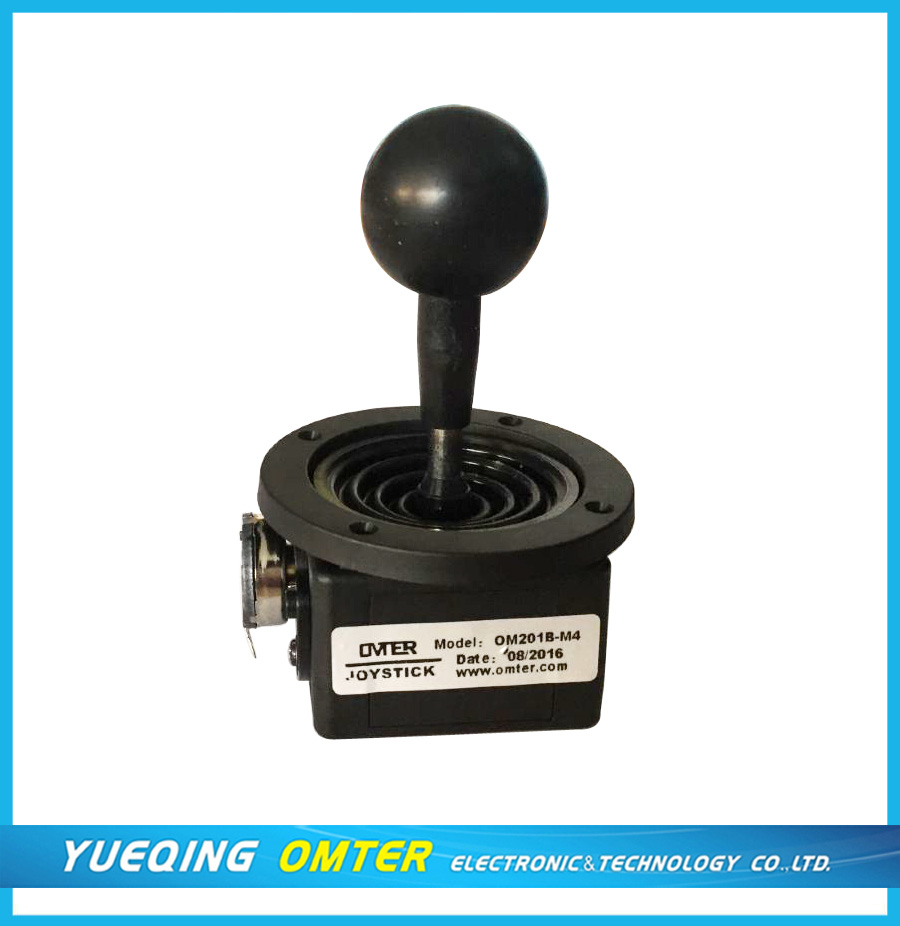

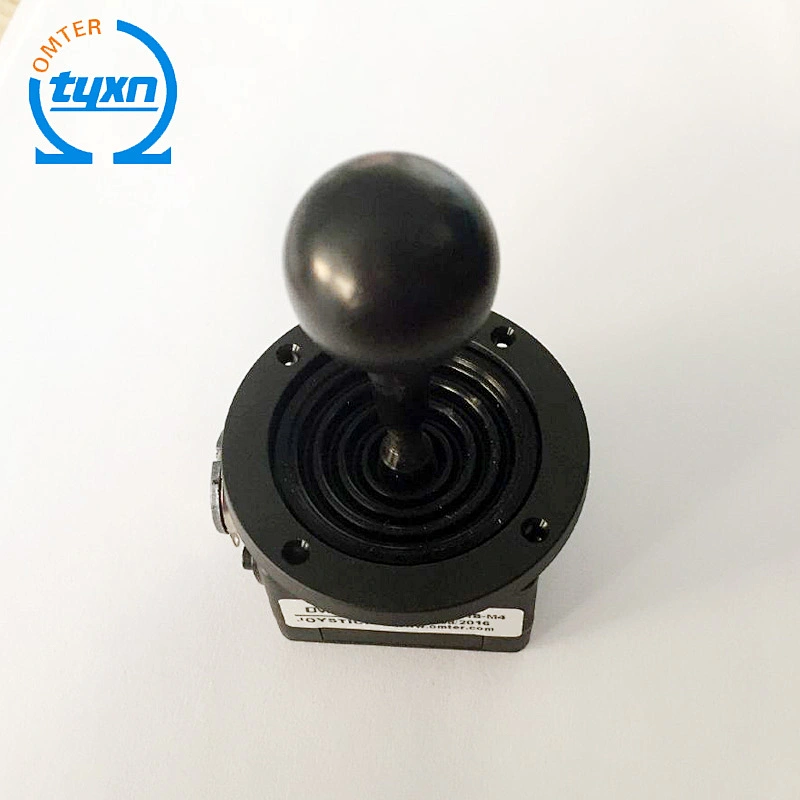

OM201B-M4 Fingertip Multi-Axis Potentiometer Joystick
OM201B controller joystick

1.2D joystick
2. potentiometer joystick
3.resistance:5k and 10k or could make as customer's need 4.we have spring return or without spring

5. dust proof type. A type.B type.Ctype.D type and so on

ELECTRICAL

  PARAMENTS



Resistance

5KΩ

 Resistance Tolerance

± 20%

Independent Linearity Tolerance

± 1 %

Resolution

Infinity

Temperature Coefficient

± 400 ppm/°C

Output smooth

MAX 0.5 %

XY

X and Y Axis Rotational Angle

±250-300

Z

Z Axis Rotational Angle

±450

OM300 ZOM400 Z

OM300 Z Axis potentiometer, OM400 Z Axis potentiometer and the Wire of Switch

AWG28

100mm

AWG28 Teflon Insulation silver-plating colored wire.

Standard line 100mm or according to

the customer request.

Insulation Resistance

50 MΩ@ 500 VDC,60 sec.

MECHANICAL

Operating Torque

XY440gf, Z880gf

X and Y Axis 440gf, Z Axis 880gf

Reposition Error Rate

±1%

Operating temperature

-10°C 80°C

Rotational life expectancy

500,000times
