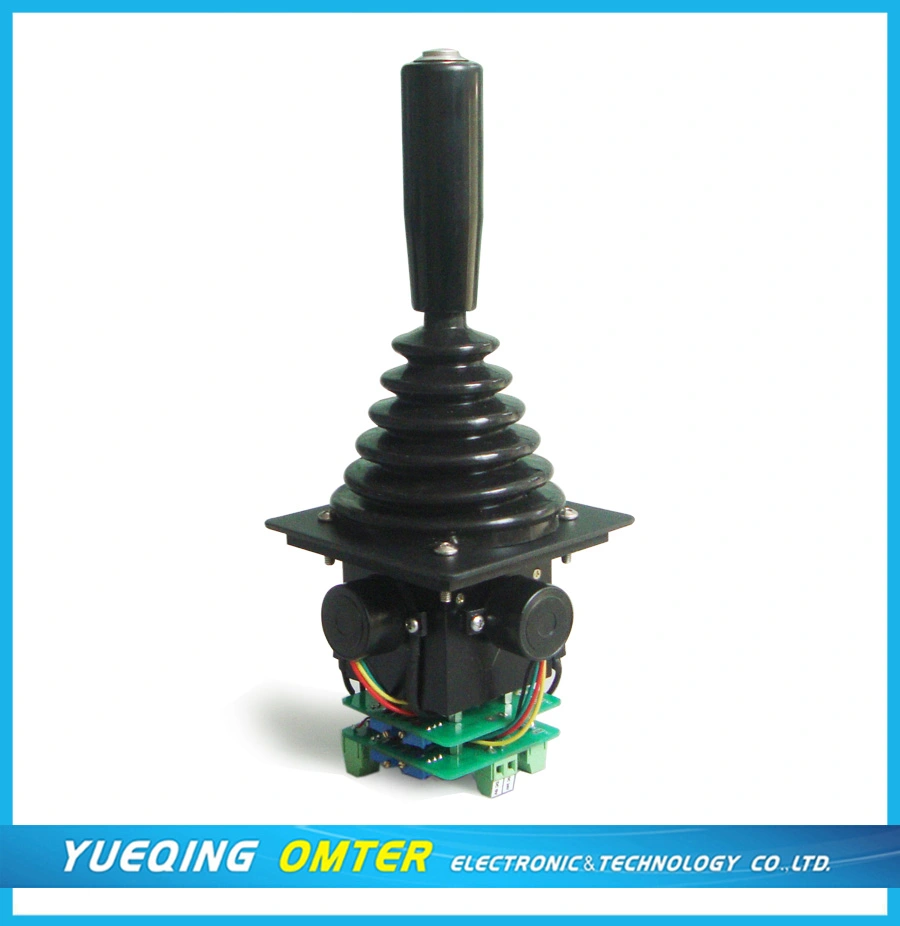

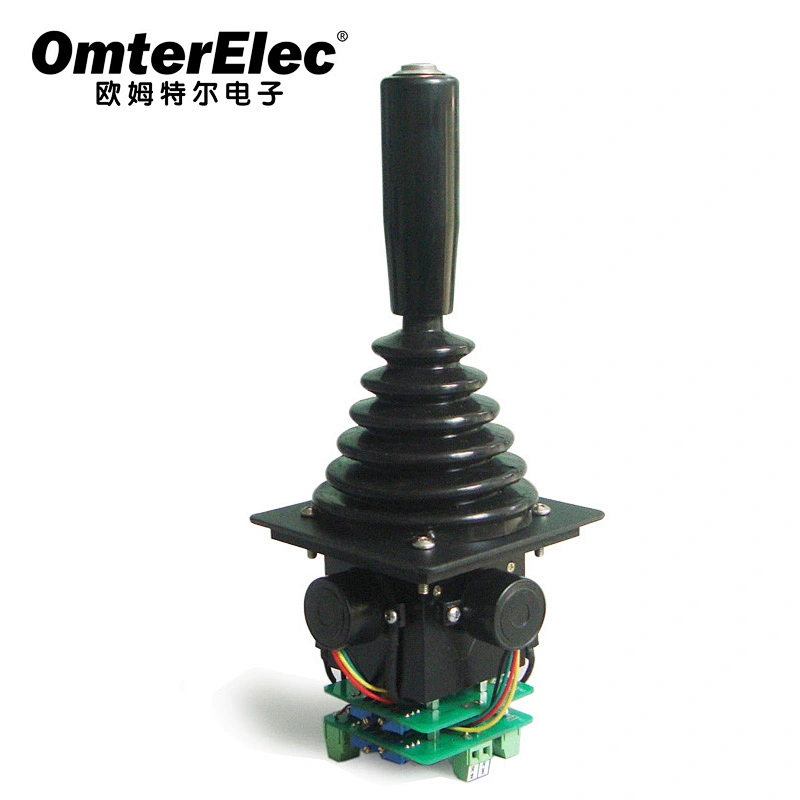

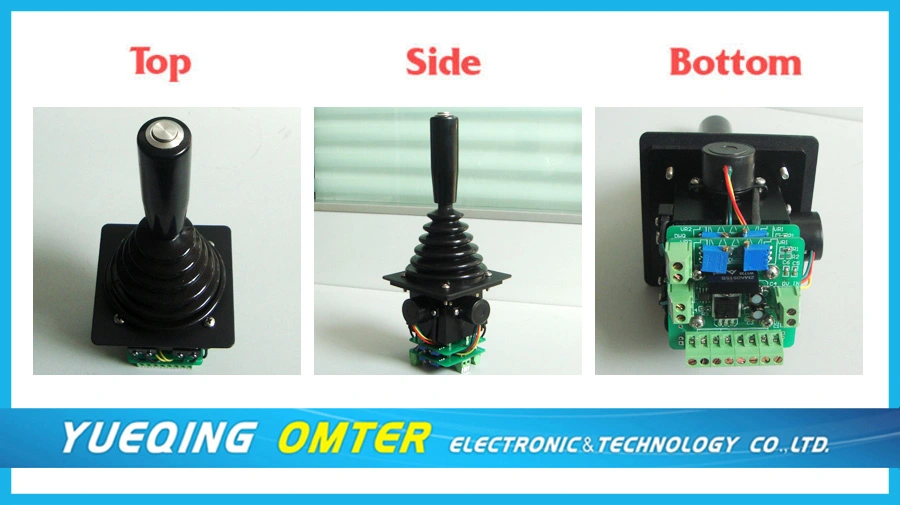

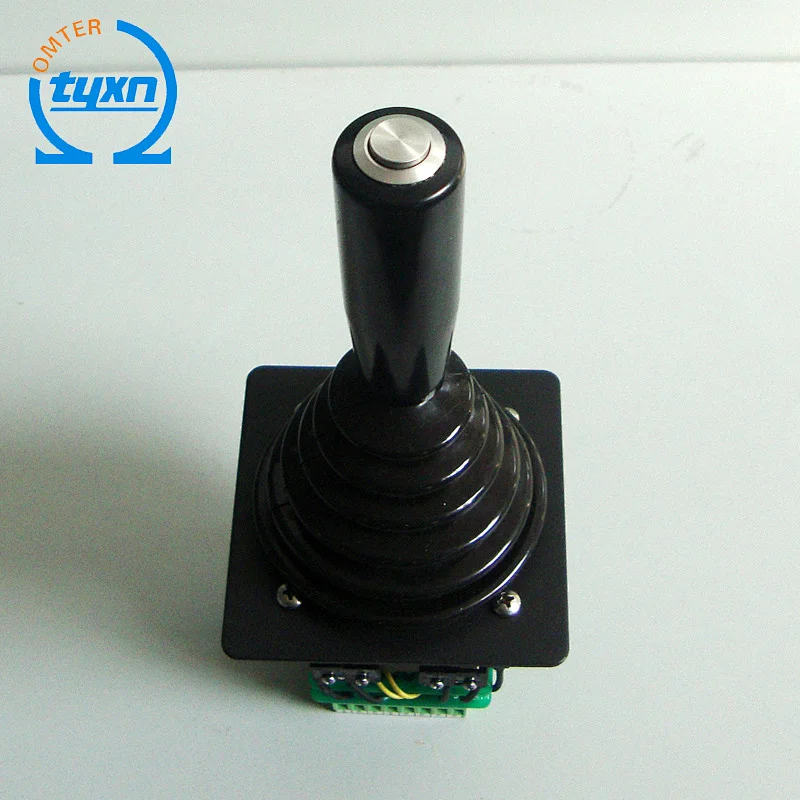

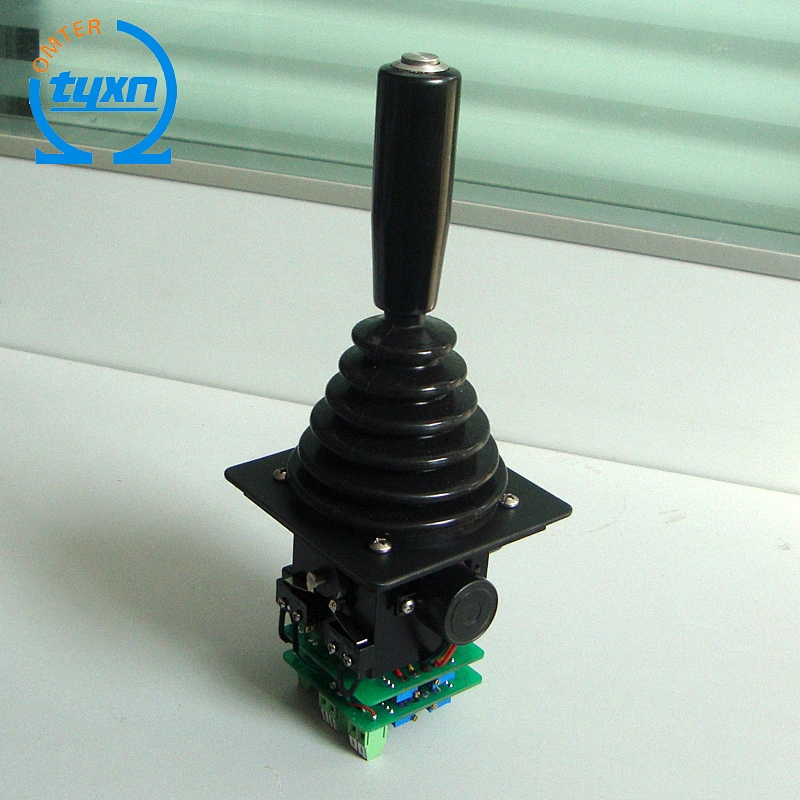

OM3000 controlled excavator
Product characteristic:
Firm durable, applicable in engineering vehicles use.
The single axis or the double axis operation,could choose the cross direction operation, or choice any direction operation..
The Angle detection device has a very long life conductive plastic potentiometer or hall sensor
Could choose operating top port which meet a variety of operating conditions
Could choose kinds of output form: The potentiometer output or the Hall voltage output; Standard voltage or current output.
Application scope:
This series product mainly applies in rotary drilling rig, the aerial fire truck,crane, shield machine, Mine Hoist, oil hoist.
Product Selection:
| OM3000 - ooo - ooo - ooo - ooo | |
| 1. 2. 3. 4. 5. | |
| Sub-item selection instructions | |
| 1.Product series number | The OM3000 series industry handle, the spring automatic reset, installment pitch of holes size 56mm*56mm, the electric circuit board binding clamp wiring Mainly used in rotary drilling rig, the aerial fire truck, crane, the shield, coal hoist, oil-hoist |
| 2.The output axis and operating mode | 1A= single axis 2AC= Double-axis arbitrary direction of operation 2AP= Double-axis cross operating direction |
| 3.Output signal | P051= with 5KΩ center-tapped potentiometer 0~100% voltage output P101= with 10KΩ center-tapped potentiometer 0~100% voltage output H51= Hall type DC5V power source, 0.5V~2.5V~4.5V voltage output H52= Hall type DC5V power source, 0V~2.5V~5V voltage output H53= Hall type DC5V power source, 1.25V~2.5V~3.75V voltage output U21=DC24V power source, -10V~0V~+10V voltage output U22=DC24V power source, +10V~0V~+10V voltage output U23=DC24V power source, - 5V~0V~+5V voltage output U24=DC24V power source, +5V~0V~+5V voltage output I21= two-wire system 4mA ~12mA~20mA electric current output I22= two-wire system 20mA~4mA~20mA electric current output NA= non-simulated signal output |
| 4.Micro switch | MS00= non-micro switch MS11= with 4A front and back position micro switch MS12= with 4A front and back,left and right position micro switch MS13= with 4A the center position as well as front and back,left and right position micro switch MS21=with 10A front and back position micro switch MS22= with 10A front and back,left and right position micro switch MS23= with 10A the center position as well as front and back, left and right position micro switch |
| 5.The handle top port | HA=Φ30*H51, without button HAS=Φ30*H56, with one button BG=Φ41*H43, without button HD=Φ36*H90, without button HDS=Φ36*H90, with one button HF=Φ21*H80, without button KGNN= no safety switch, no rocker button KGDR= has the safety switch, has rocker button KGDN= has the safety switch, no rocker button KGNR= no safety switch, has rocker button |
Technical parameter:

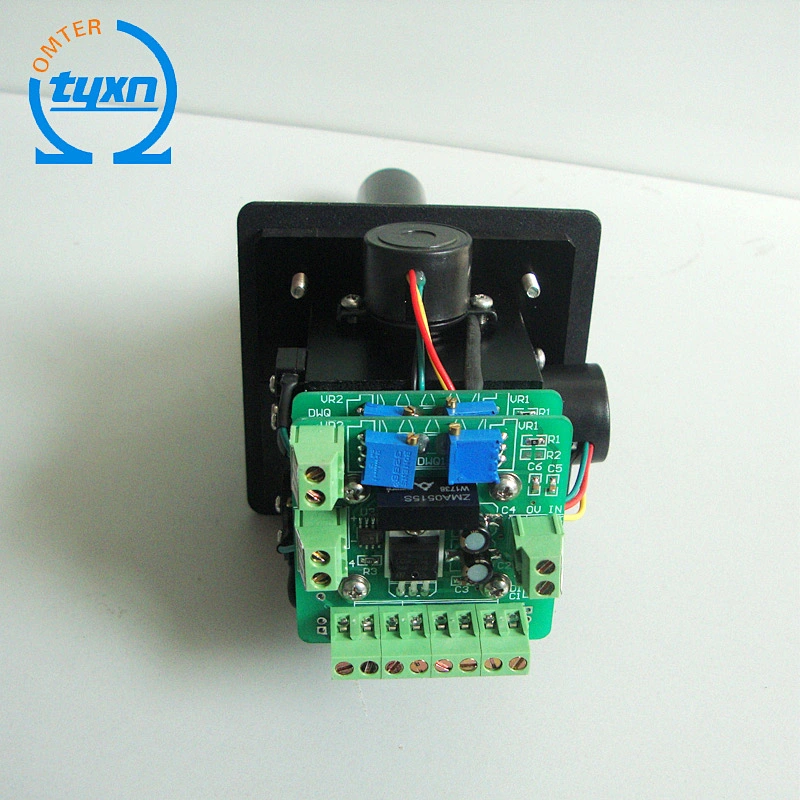

| Mechanical parameter: | |
| Swing angle: | ±25° |
| Service life: | Is bigger than 5,000,000 times (potentiometer type),is bigger than 10,000,000 times (Hall type) |
| Operate strength: | 15N (Max) |
| Limit Force: | 50N (Max) |
| Weight: | 460g (without the top port) |
| Electrical parameter: | |
| Potentiometer type: | |
| Total resistance value: | 5kΩ or 10kΩ |
| Electric angle: | ±20° |
| The median position voltage (relative power supply voltage): | 48%~52% |
| The median position dead zone angle: | ±2.5° |
| The potentiometer load max voltage: | DC32V |
| Potentiometer allows the maximum power consumption (25°C): | 0.25W |
| Micro switch: | |
| Load capacity: | 3A@250Vac, 4A@30Vdc (resistive load),can also be configured to the big current (10A) micro switch |
| Mechanical life: | more than 30,000,000 times |
| Electrical life: | more than 200,000 times |
| Insulation resistances: | more than 100MΩ(500Vdc insulation resistance meter) |
| Hall type | |
| Power source voltage: | 5±0.5Vdc |
| Limit permission overvoltage: | 30Vdc (continuous use) |
| The reverse limit permits the voltage: | The 15Vdc |
| Output voltage scope (optional): | H51= Hall type, DC5V power source,the 0.5V~2.5V~4.5V voltage output H52= Hall type, DC5V power source,the 0V~2.5V~5V voltage output H53= Hall type, DC5V power source,1.25V~2.5V~3.75V voltage output |
| Minimum load impedance: | 5KΩ |
| Insulation resistance: | Is bigger than 50MΩ (when 500Vdc) |
| With conversion circuit | |
| power source voltage: | DC24V |
| Power source consumption current: | <20mA |
| Maximum output electric current: | The 10mA |
| Standard voltage output | |
| Output voltage scope (optional): | U21=DC24V power source, -10V~0V~+10V voltage output U22=DC24V power source, +10V~0V~+10V voltage output U23=DC24V power source, -5V~0V~+5V voltage output U24=DC24V power source, +5V~0V~+5V voltage output |
| Standard electric current output | |
| Power source voltage: | The DC9~36V |
| Output current adjustment scope (optional): | I21=two-wire system 4mA~12mA~20mA electric current output I22=two-wire system 20mA~4mA~20mA electric current output |
| button switch: | |
| Load capacity: | 5A@28Vdc (resistive load) |
| Operate strength: | 3N |
| action form: | Instantaneous action |
| Mechanical life: | More than 1,000,000 times |
| Environment parameter | |
| Operating temperature scope: | - 40°C~+80°C |
| Storage temperature scope: | - 40°C~+85°C |
| Protection rank: | IP65 |
