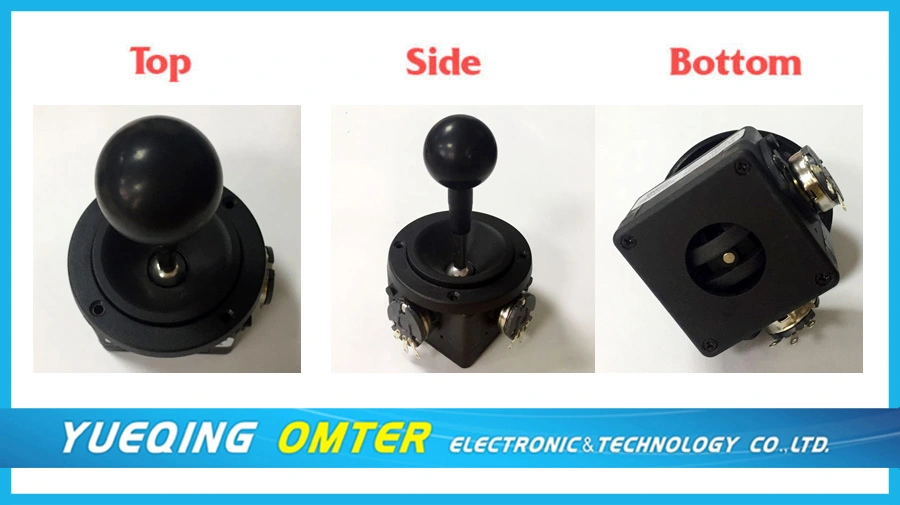

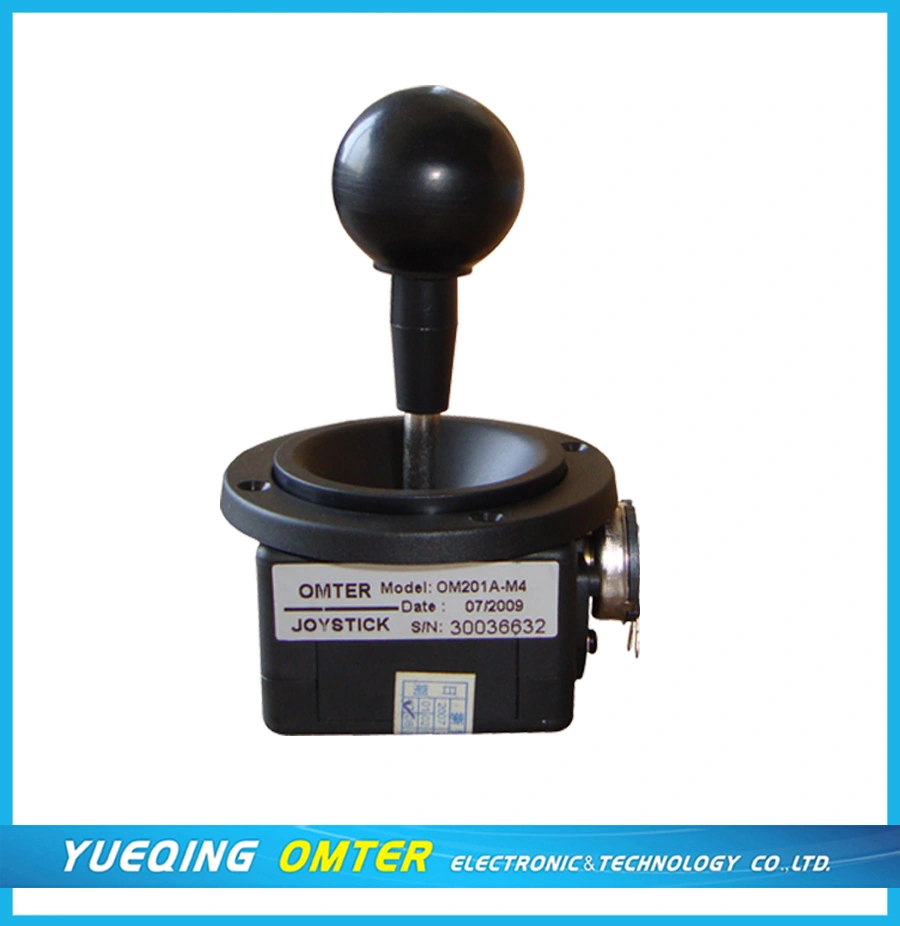

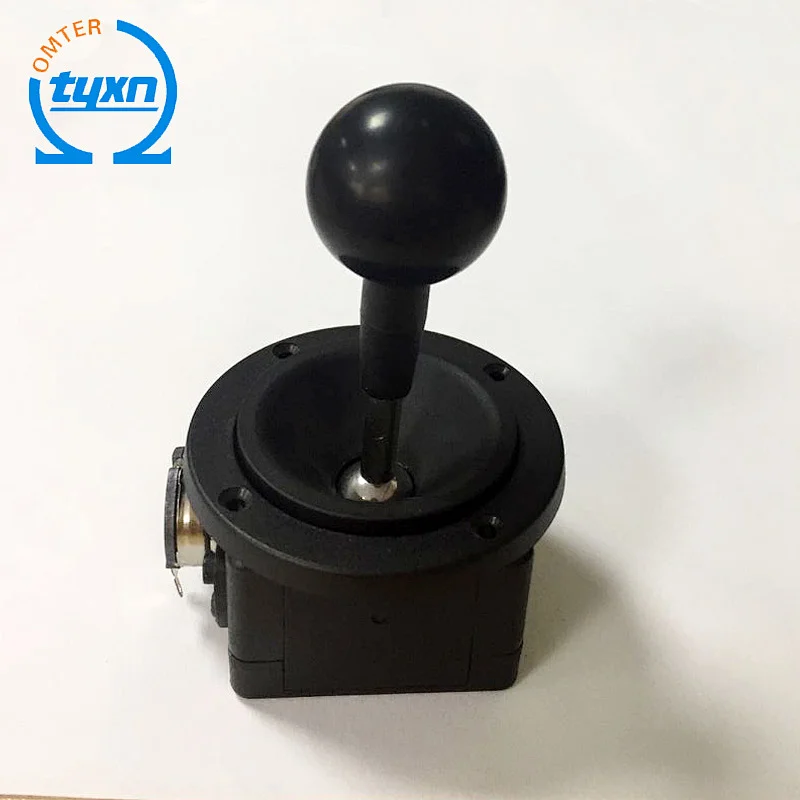

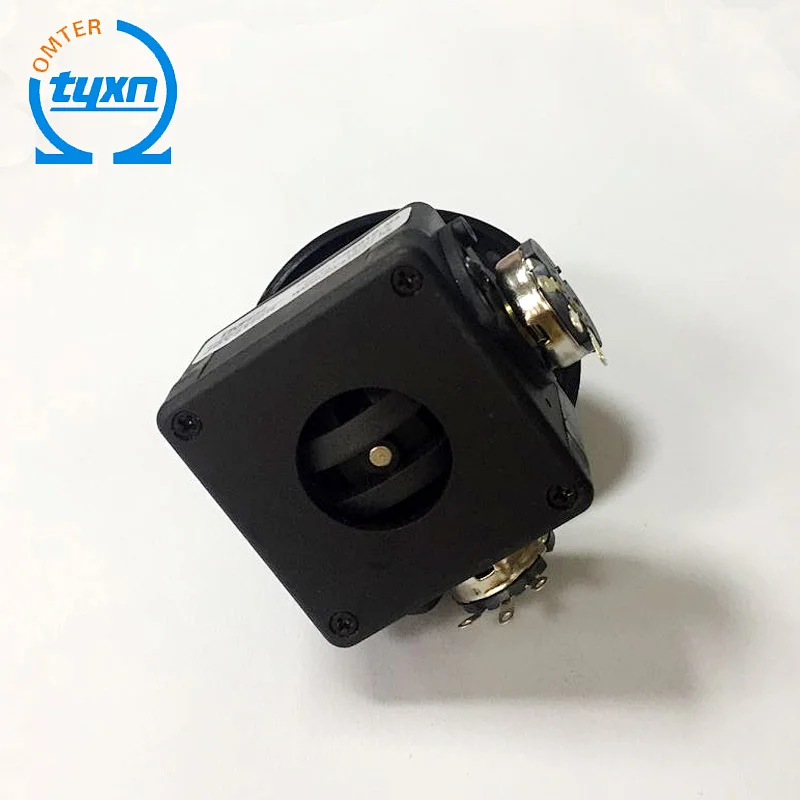

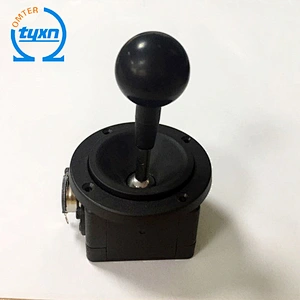

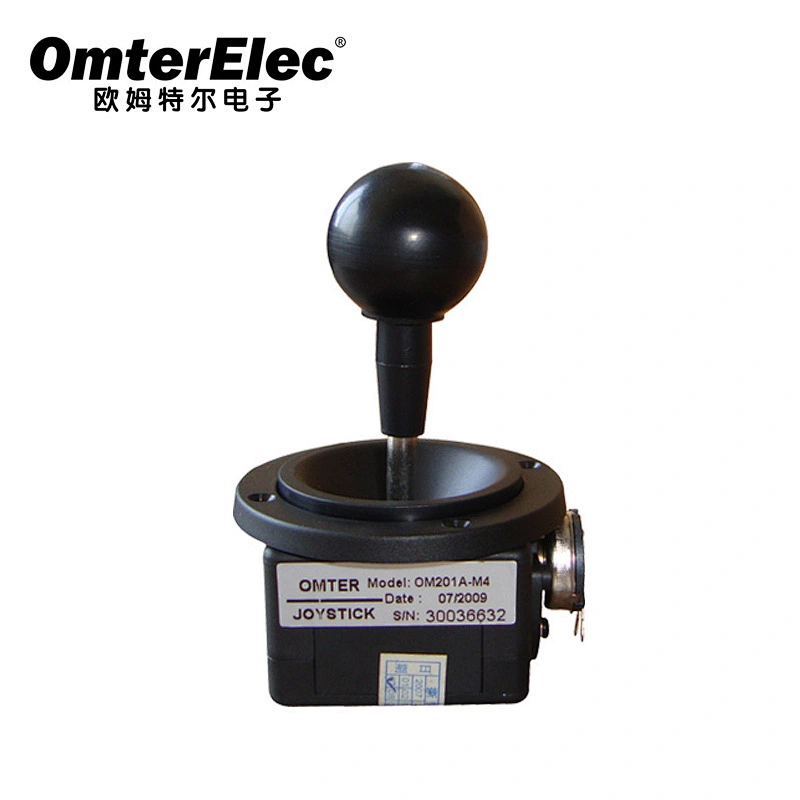

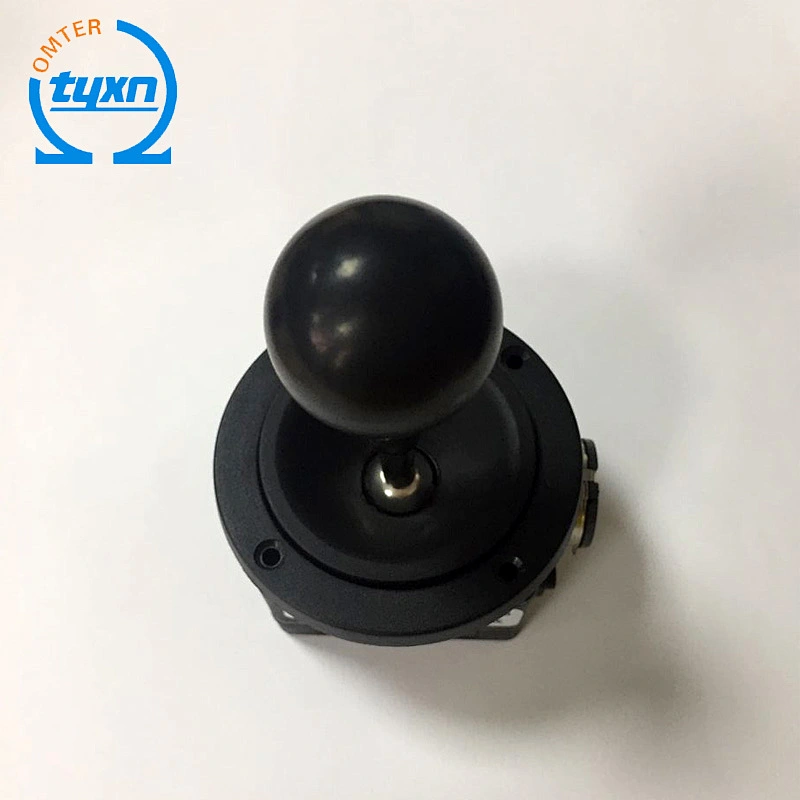

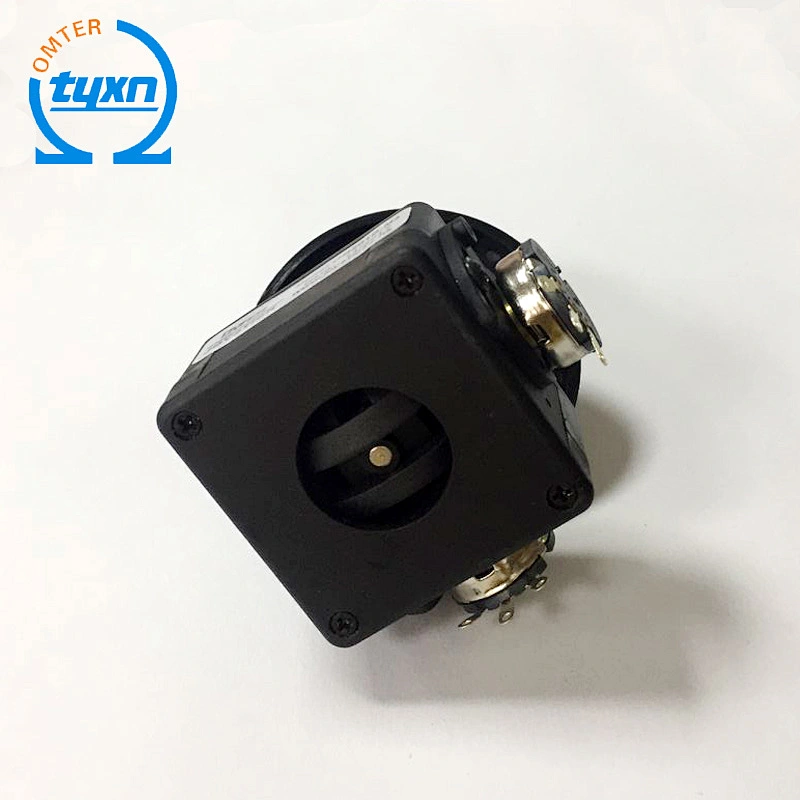

OM201A best joystick for flight simulator
1.2D joystick
2. potentiometer joystick
3.resistance:5k and 10k or could make as customer's need 4.we have spring return or without spring
5. dust proof type. A type.B type.Ctype.D type and so on
ELECTRICAL |
PARAMENTS | |
Resistance | 5KΩ |
Resistance Tolerance | ± 20% |
Independent Linearity Tolerance | ± 1 % |
Resolution | Infinity |
Temperature Coefficient | ± 400 ppm/°C |
Output smooth | MAX 0.5 % |
XY X and Y Axis Rotational Angle | ±250-300 |
Z Z Axis Rotational Angle | ±450 |
OM300 ZOM400 Z OM300 Z Axis potentiometer, OM400 Z Axis potentiometer and the Wire of Switch | AWG28 100mm AWG28 Teflon Insulation silver-plating colored wire. Standard line 100mm or according to the customer request. |
Insulation Resistance | 50 MΩ@ 500 VDC,60 sec. |
MECHANICAL |
Operating Torque | XY440gf, Z880gf X and Y Axis 440gf, Z Axis 880gf |
Reposition Error Rate | ±1% |
Operating temperature | -10°C 80°C |
Rotational life expectancy | 500,000times |

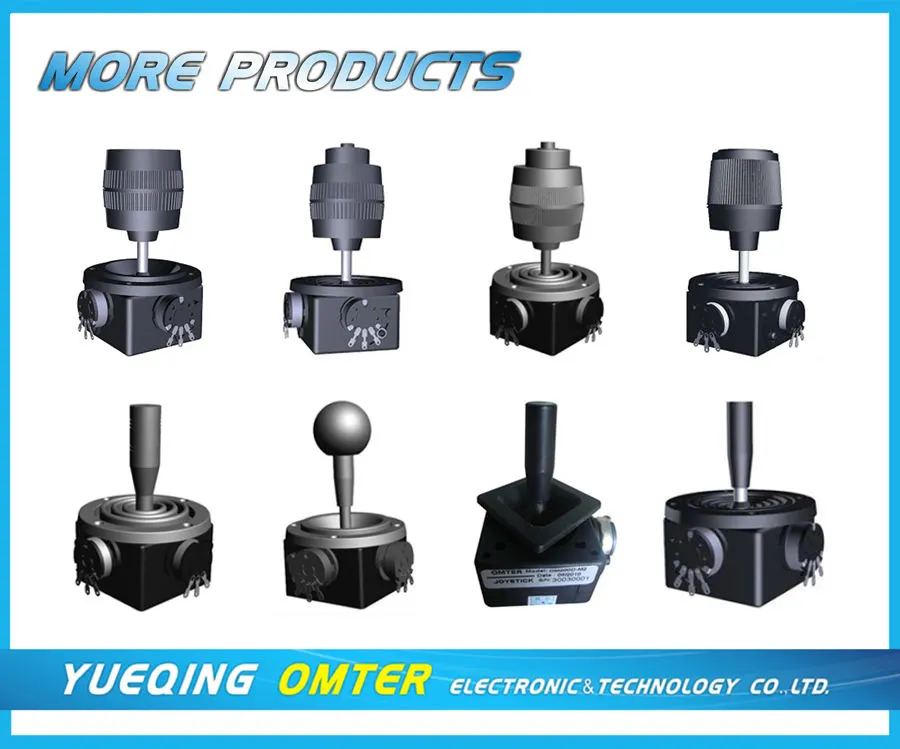

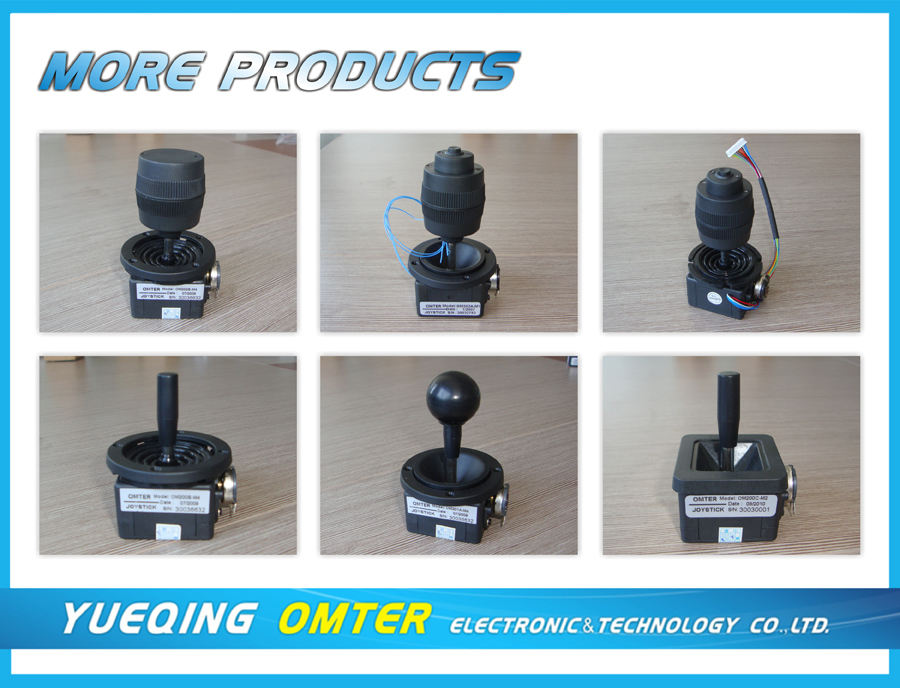

Related Products
