1k potentiometer potentiometer
1k potentiometer potentiometer
1k potentiometer potentiometer
1k potentiometer potentiometer
1k potentiometer potentiometer

1k potentiometer potentiometer

Model NO.
3590S-2-102L
Quantity:

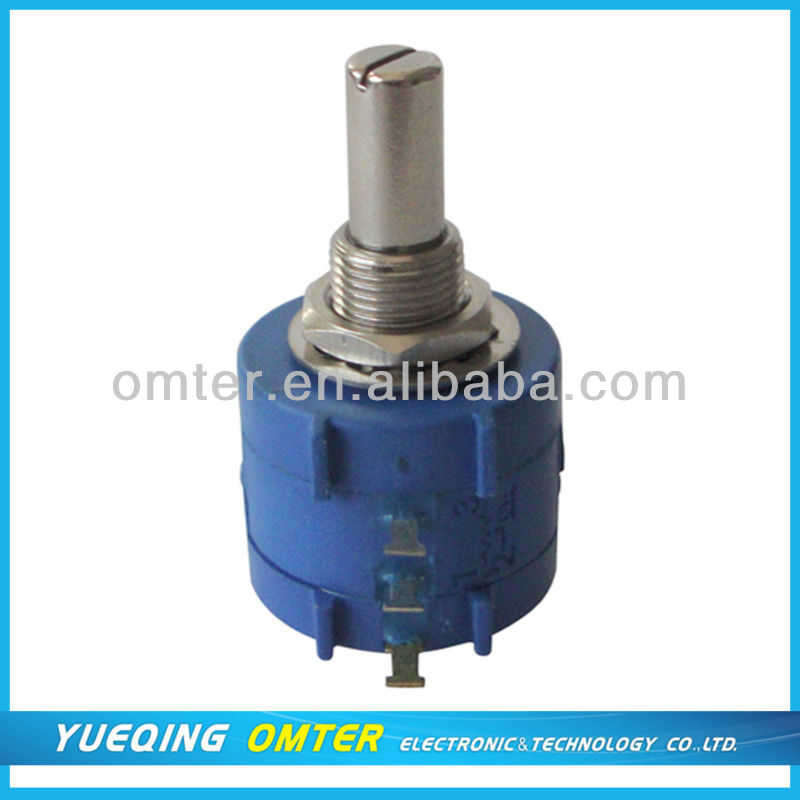

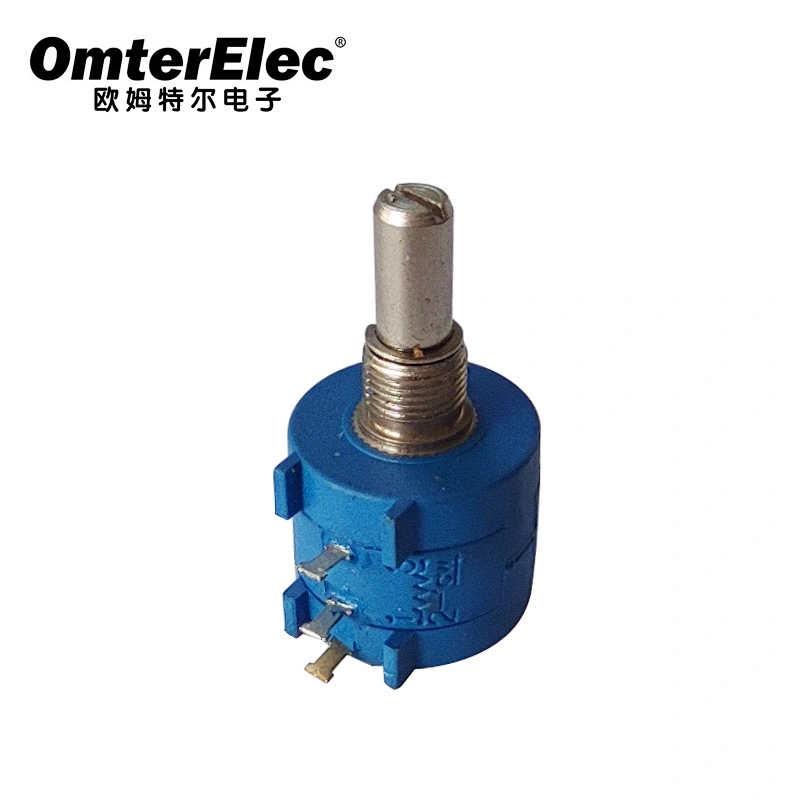

3590S-2-102L 1k potentiometer potentiometer

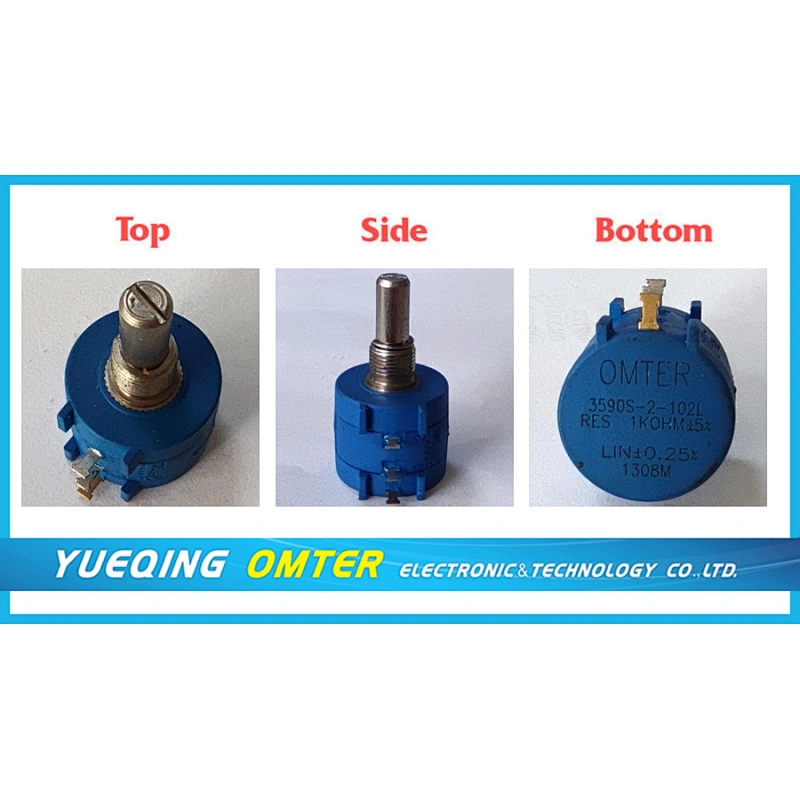

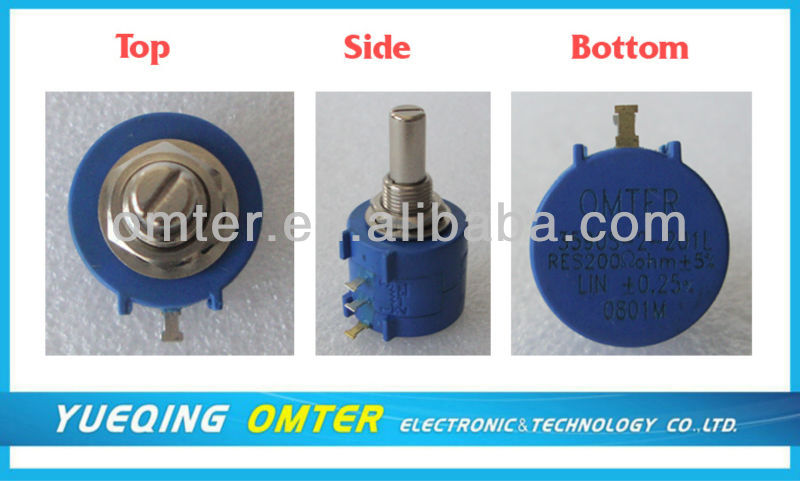

Detailed picture:


Mechanical parameter:

Main performance359035405347286
Rated power2w2w2w2w
Max.operating voltage160V DC80V DC315V
Standard Resistance Range200----100K200 ----100K00 ----100K100----100K
Resistance Tolerancer±2% ±5%±2% ±5%±5%±5%
Rotation torque2--100m N.m2--100m N.m2--100m N.m2--100m N.m
Staring Torque≤36mN.m≤36mN.m≤36mN.m≤36mN.m
Clutch Torque≥300mN.m≥300mN.m≥300mN.m≥300mN.m
Total mechanical travel1000000 Cycles10000 Cycles
Mchanical endurance3600°±10°
Temperature Range-55°C----+125°C
