Model NO.
TSA12S-111-I1L
Quantity:

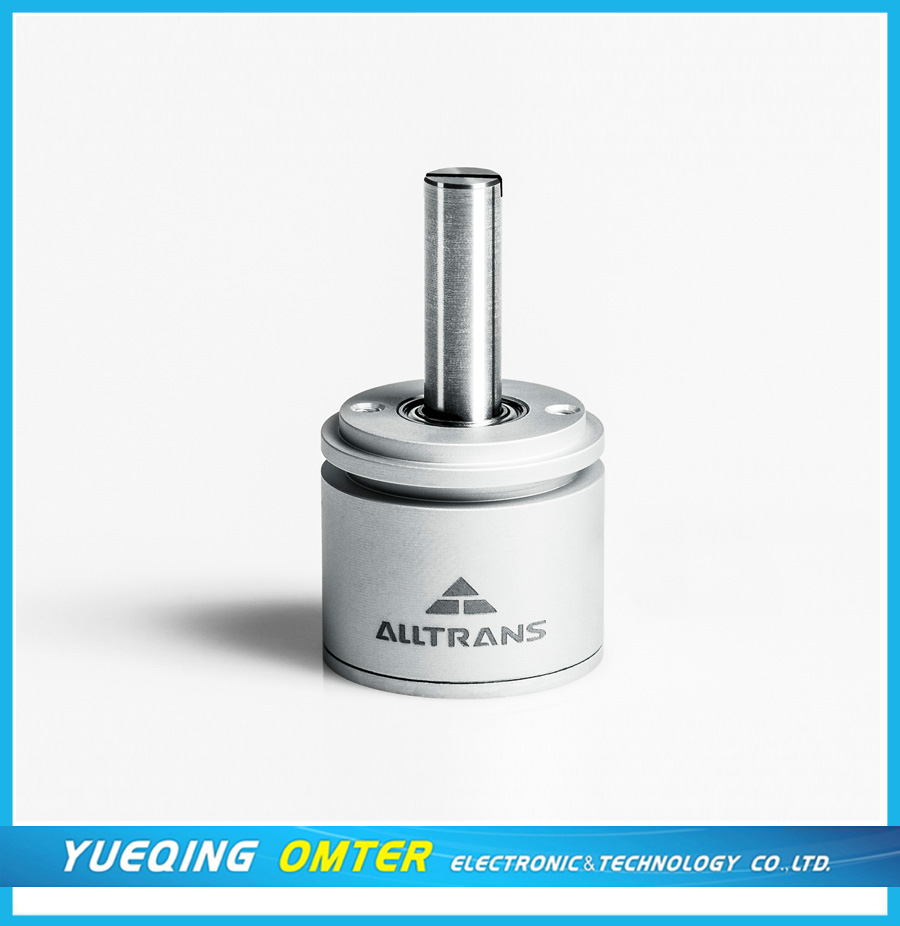

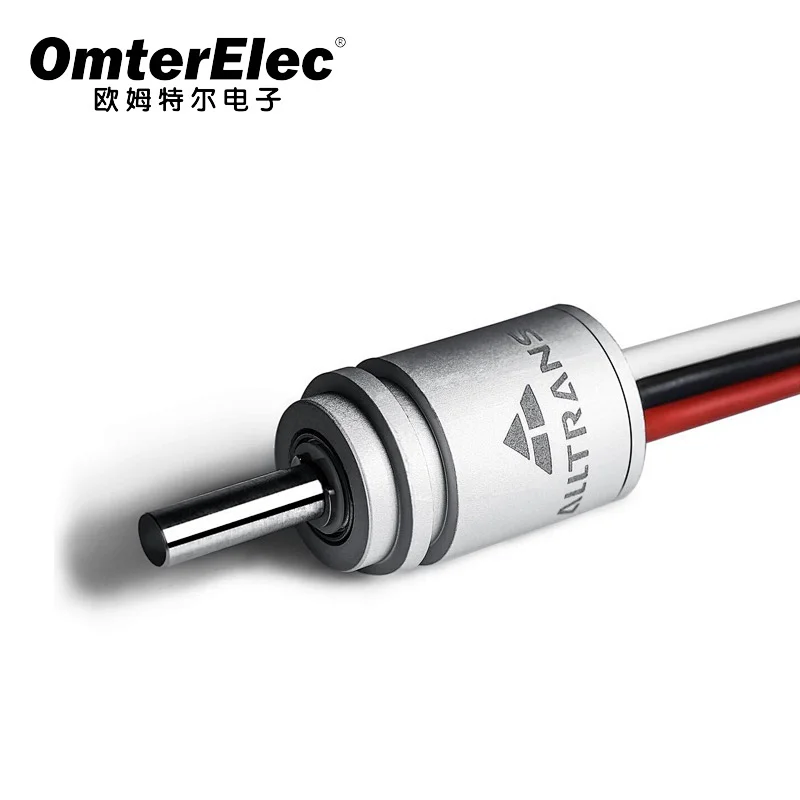

TSA12S-111-I1L tire pressure sensor electronic angle sensor


With Hall-type non-contact technology, the high precision and service life can be infinitely theoretical. It is a cost-effective non-contact angle sensor.

Application areas:

automated lathes, injection molding machines, crane torque control, valves, foot pedal testing, robotic arms, pan/tilt control, paper machinery, textile machinery, construction machinery

Parameter:

Mechanical Range:360°
Starting Torque:0.5Ncm
Max Rotating Speed:120rpm
Weight:21g
Measuring Rang:0 ~ 360°
Independent Linearity:< ±0.2%
Supply Voltage:5 (±10%) VDD, Avail for other options
Supply Current:<12mA
Output Load Analog:10kΩ
Min. Life :10 millions Turns
