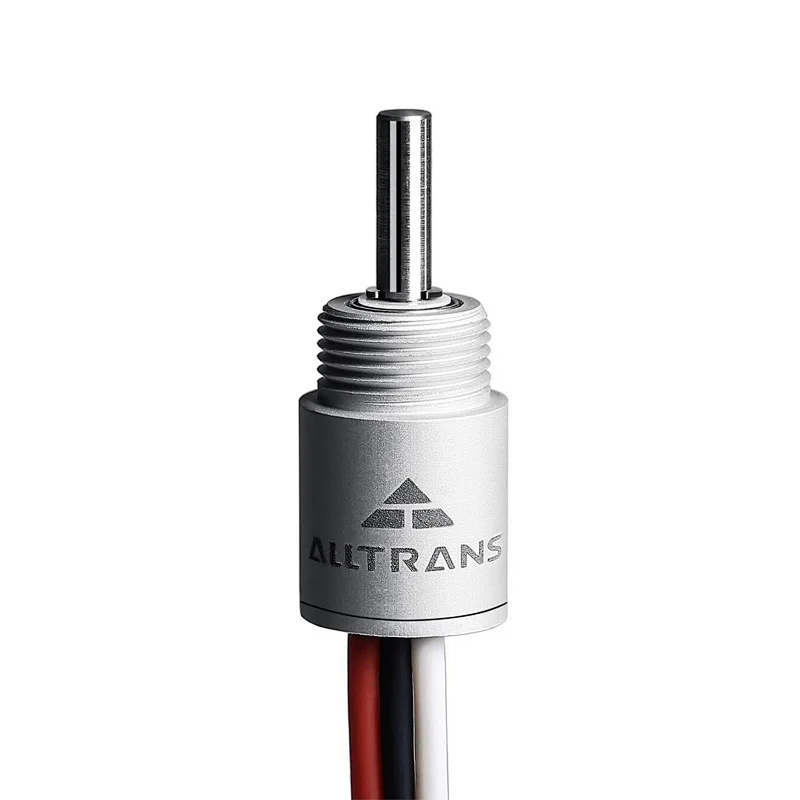

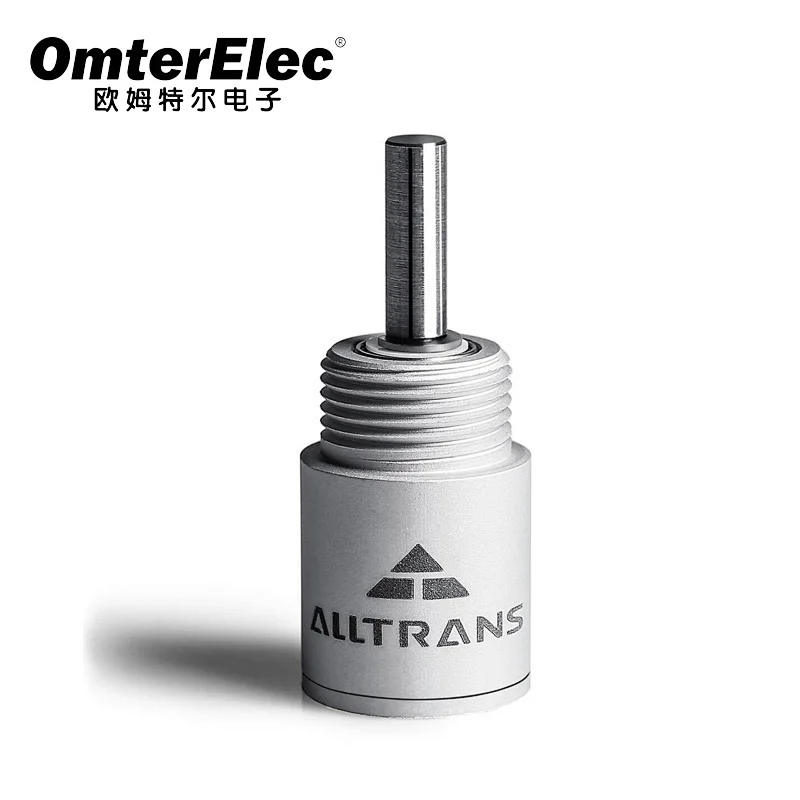

TSA12M-111-R1L crankshaft position sensor throttle position sensor
With Hall-type non-contact technology, the high precision and service life can be infinitely theoretical. It is a cost-effective non-contact angle sensor.
Application areas:
automated lathes, injection molding machines, crane torque control, valves, foot pedal testing, robotic arms, pan/tilt control, paper machinery, textile machinery, construction machinery
Parameter:
| Mechanical Range: | 360° |
| Starting Torque: | 0.5Ncm |
| Max Rotating Speed: | 120rpm |
| Weight: | 21g |
| Measuring Rang: | 0 ~ 360° |
| Independent Linearity: | < ±0.2% |
| Supply Voltage: | 5 (±10%) VDD, Avail for other options |
| Supply Current: | <12mA |
| Output Load Analog: | 10kΩ |
| Min. Life : | 10 millions Turns |
