Model NO.
TSA-OF22-111-11-R1L
Quantity:

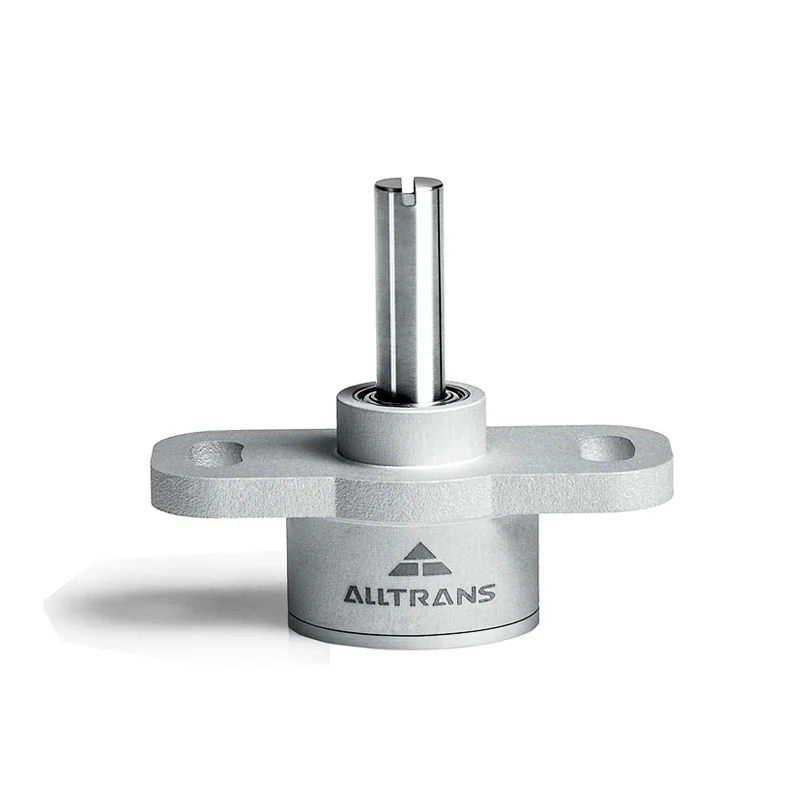

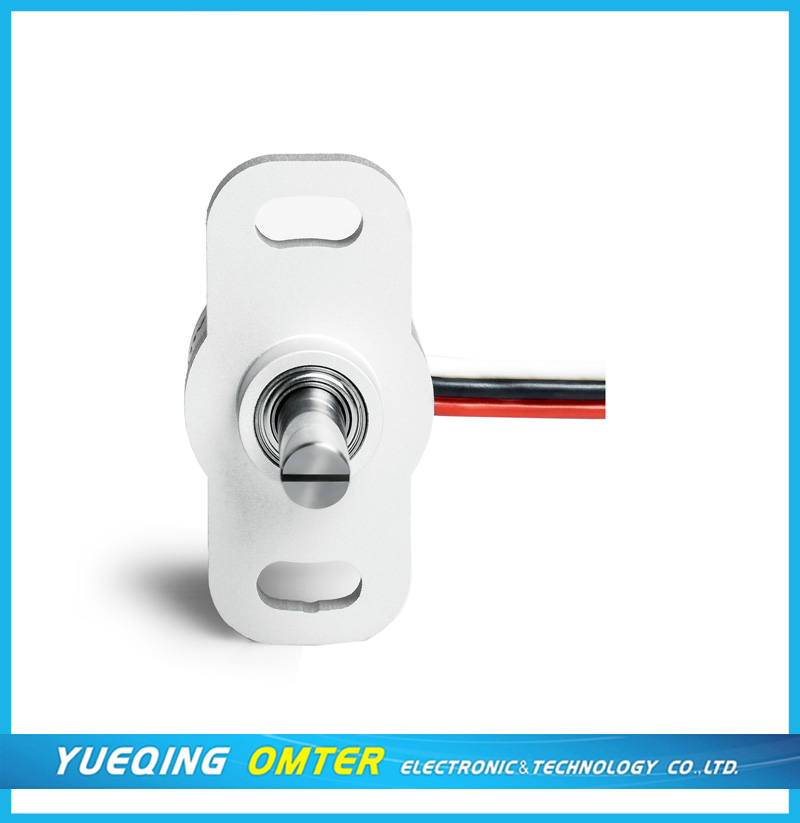

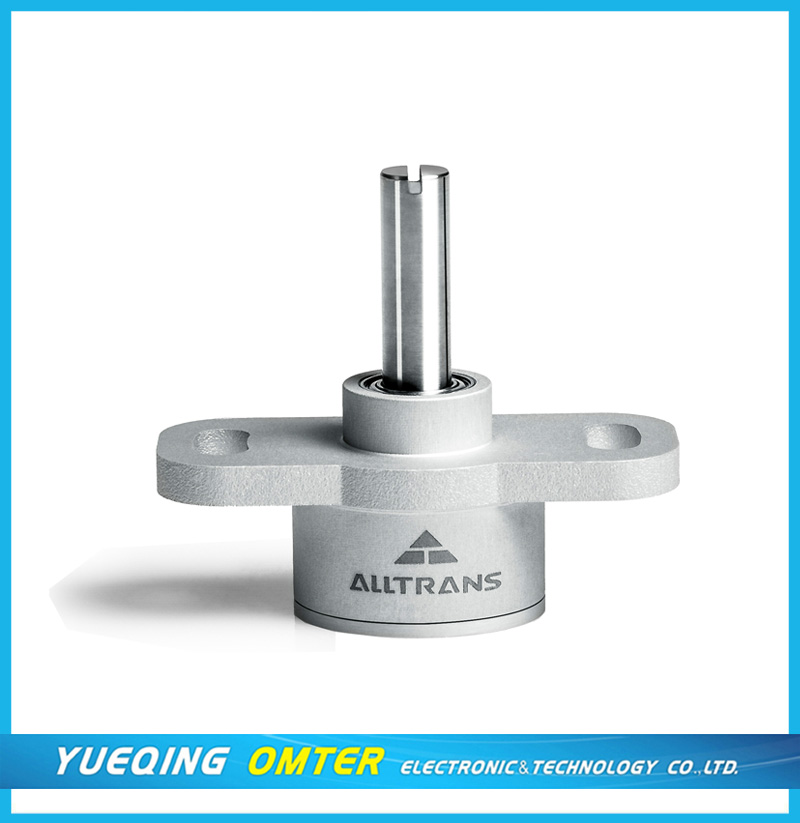

TSA-OF22-111-11-R1L Angular displacement sensor



Product characteristic :

Main features of the product:
1 No contact, no noise, high sensitivity, high repeatability, close to infinite rotation life, good high frequency response characteristics; 2. Environmental applicability, can be used in harsh industries such as water, oil, steam, dust, high and low temperature, vibration shock Use environment; 3. Absolute position measurement, is an ideal product to replace optical encoder, rotary transformer, conductive plastic potentiometer; angles of 4.360 degrees and 360 degrees can be customized, such as 90 degrees, 180 degrees, 200 degrees, etc. produce;

Application scope:

Application areas: automated lathes, injection molding machines, crane torque control, valves, foot pedal testing, robotic arms, pan/tilt control, paper machinery, textile machinery, construction machinery

Parameter:

Brand:ALLTRANS
Item no.:TSA-OF22

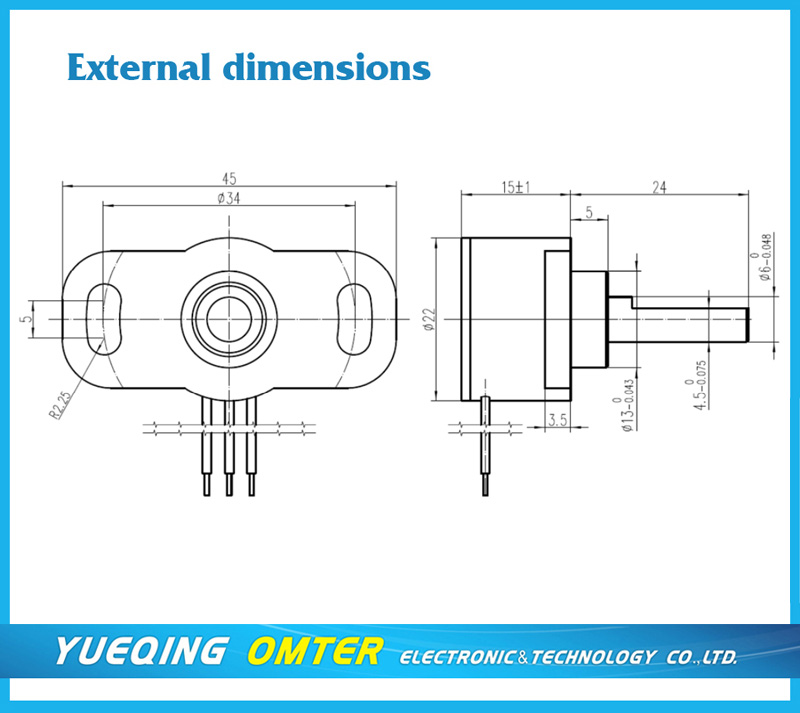

Size:Dia:22mm
Mechanical Range:360°, Available for Mechanic stop
Starting Torque :0.5Ncm
Max Permitted Axial Shaft Load:10N
Max Rotating Speed:120rpm
Weight:21g
Independent Linearity:< ±0.2%
Min. Life:10 millions Turns
